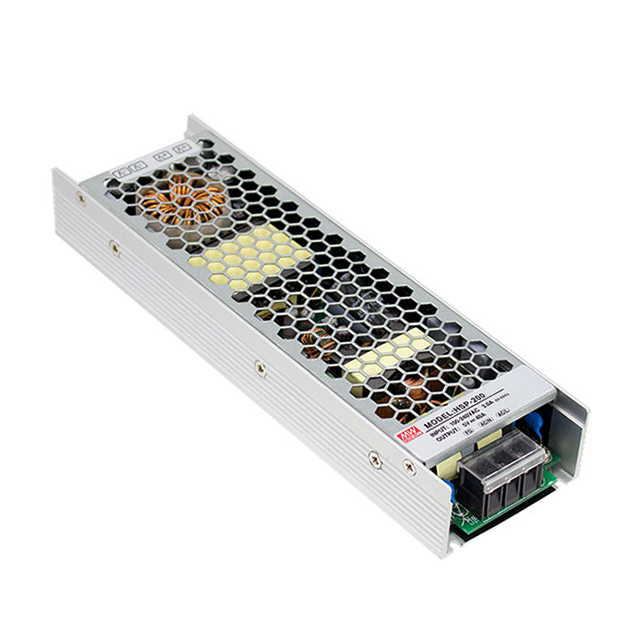

HSP-200 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
AC/DC CONVERTER 4.2V 168W
| Part | Minimum Load Required | Voltage - Isolation | Number of Outputs | Type | Applications | Voltage - Input [Max] | Voltage - Input [Min] | Mounting Type | Features | Power (Watts) | Efficiency | Current - Output 1 | Voltage - Output 1 | Operating Temperature [Min] | Operating Temperature [Max] | Approval Agency | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | 3000 V | 1 | Conformal Coated Enclosed | ITE (Commercial) | 264 VAC 370 VDC | 90 VAC 127 VDC | Chassis Mount | Adjustable Output PFC Universal Input | 168 W | 88 % | 40 A | 4.2 V | -30 °C | 70 °C | CB CCC CE cURus TUV | 1.22 in | 210 mm | 8.27 in | 2.44 " | 31 mm | 62 mm | |
MEAN WELL USA Inc. | 3000 V | 1 | Conformal Coated Enclosed | ITE (Commercial) | 264 VAC 370 VDC | 90 VAC 127 VDC | Chassis Mount | Adjustable Output PFC Universal Input | 200 Watts | 88.5 % | 40 A | 5 V | -30 °C | 70 °C | CB CCC CE cURus TUV | 1.22 in | 210 mm | 8.27 in | 2.44 " | 31 mm | 62 mm |
