630-025 Series
Manufacturer: EDAC Inc.
Beta
⌘K

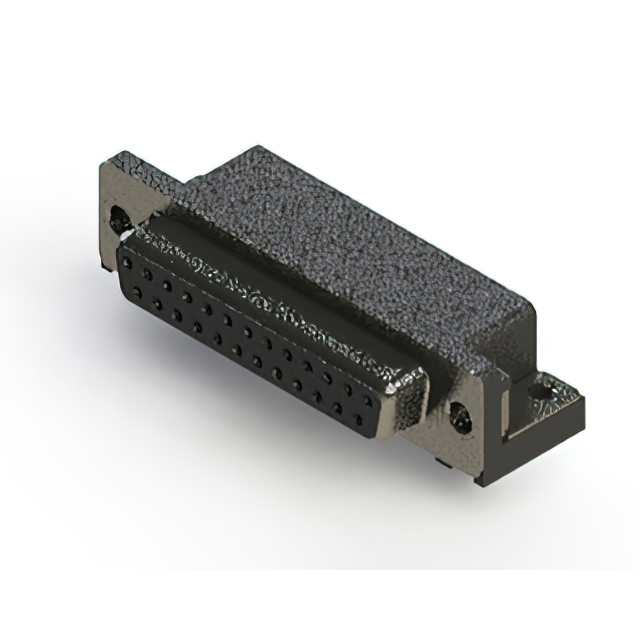

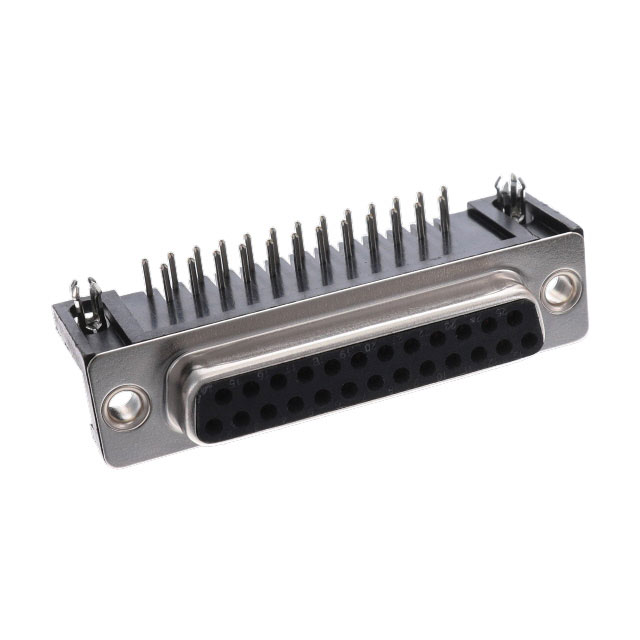

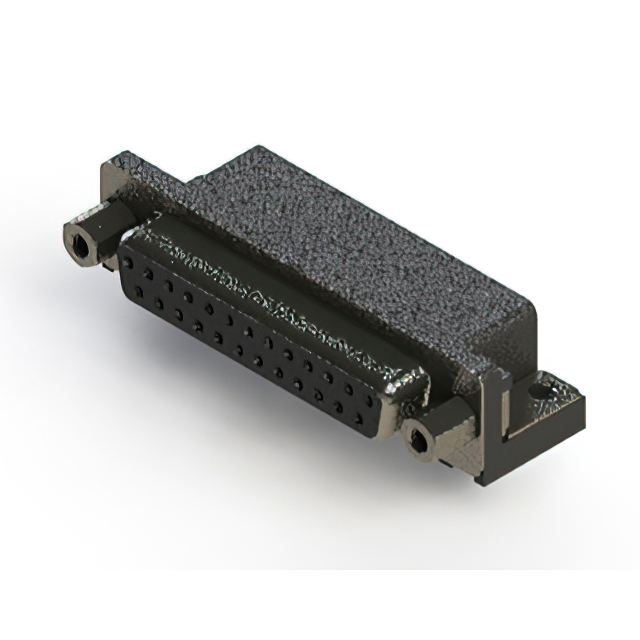

D-SUB RIGHT ANGLE CONNECTOR ROHS COMPLIANT: YES
| Part | Contact Material | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Color | Material Flammability Rating | Shell Size, Connector Layout | Shell Size, Connector Layout [x] | Contact Finish Thickness | Termination | Current Rating (Amps) | Number of Positions | Flange Feature | Features | Mounting Type | Contact Type | Connector Style | Backset Spacing | Backset Spacing | Connector Type | Contact Finish | Number of Rows [custom] | Shell Material, Finish | Contact Finish Thickness | Contact Finish Thickness | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Copper Alloy | Polyester Thermoplastic | -55 C | 85 °C | Black | UL94 V-0 | B DB | 3 | Flash | Solder | 3 A | 25 | Housing/Shell (M3) | Board Lock Mounting Brackets Shielded | Board Edge Right Angle Through Hole | Signal | D-Sub | 10.4 mm | 0.409 in | Receptacle Female Sockets | Gold | 2 | Nickel Plated Steel | |||
 EDAC Inc. | Copper Alloy | Polyester Thermoplastic | -55 C | 85 °C | Black | UL94 V-0 | B DB | 3 | Solder | 3 A | 25 | Housing/Shell (Unthreaded) | Mounting Brackets Shielded | Board Edge Right Angle Through Hole | Signal | D-Sub | 10.4 mm | 0.409 in | Receptacle Female Sockets | Gold | 2 | Nickel Plated Steel | 0.38 µm | 15 µin | ||
 EDAC Inc. | Copper Alloy | Polyester Thermoplastic | -55 C | 85 °C | Black | UL94 V-0 | B DB | 3 | Solder | 3 A | 25 | Housing/Shell (Unthreaded) | Board Lock Mounting Brackets Shielded | Board Edge Right Angle Through Hole | Signal | D-Sub | 10.4 mm | 0.409 in | Receptacle Female Sockets | Gold | 2 | Nickel Plated Steel | 0.76 Ám | 30 Áin | ||
 EDAC Inc. | Copper Alloy | Polyester Thermoplastic | -55 C | 85 °C | Black | UL94 V-0 | B DB | 3 | Solder | 3 A | 25 | Housing/Shell | Board Lock Mounting Brackets Shielded | Board Edge Right Angle Through Hole | Signal | D-Sub | 10.4 mm | 0.409 in | Receptacle Female Sockets | Gold | 2 | Nickel Plated Steel | 0.76 Ám | 30 Áin | 4-40 | |
 EDAC Inc. | Copper Alloy | Polyester Thermoplastic | -55 C | 85 °C | Black | UL94 V-0 | B DB | 3 | Solder | 3 A | 25 | Housing/Shell (M3) | Board Lock Mounting Brackets Shielded | Right Angle Through Hole | Signal | D-Sub | 10.4 mm | 0.409 in | Receptacle Female Sockets | Gold | 2 | Nickel Plated Steel | 0.38 µm | 15 µin | ||
 EDAC Inc. | Copper Alloy | Polyester Thermoplastic | -55 C | 85 °C | Black | UL94 V-0 | B DB | 3 | Solder | 3 A | 25 | Housing/Shell (M3) | Board Lock Mounting Brackets Shielded | Board Edge Right Angle Through Hole | Signal | D-Sub | 10.4 mm | 0.409 in | Receptacle Female Sockets | Gold | 2 | Nickel Plated Steel | 0.38 µm | 15 µin | ||
 EDAC Inc. | Copper Alloy | Polyester Thermoplastic | -55 C | 85 °C | Black | UL94 V-0 | B DB | 3 | Flash | Solder | 3 A | 25 | Housing/Shell (Unthreaded) | Board Lock Mounting Brackets Shielded | Board Edge Right Angle Through Hole | Signal | D-Sub | 10.4 mm | 0.409 in | Receptacle Female Sockets | Gold | 2 | Nickel Plated Steel | |||
 EDAC Inc. | Copper Alloy | Polyester Thermoplastic | -55 C | 125 °C | Black | UL94 V-0 | B DB | 3 | Flash | Solder | 3 A | 25 | 4-40 Mating Side Female Screwlock | Board Lock Mounting Brackets Shielded | Board Edge Right Angle Through Hole | Signal | D-Sub | 10.4 mm | 0.409 in | Receptacle Female Sockets | Gold | 2 | Nickel Plated Steel | |||
 EDAC Inc. | Copper Alloy | Polyester Thermoplastic | -55 C | 125 °C | Black | UL94 V-0 | B DB | 3 | Solder | 3 A | 25 | Housing/Shell (Unthreaded) | Board Lock Mounting Brackets Shielded | Right Angle Through Hole | Signal | D-Sub | 10.4 mm | 0.409 in | Receptacle Female Sockets | Gold | 2 | Nickel Plated Steel | 0.38 µm | 15 µin | ||
 EDAC Inc. | Copper Alloy | Polyester Thermoplastic | -55 C | 85 °C | Black | UL94 V-0 | B DB | 3 | Flash | Solder | 3 A | 25 | 4-40 Mating Side Female Screwlock | Board Lock Mounting Brackets Shielded | Right Angle Through Hole | Signal | D-Sub | 10.4 mm | 0.409 in | Receptacle Female Sockets | Gold | 2 | Nickel Plated Steel |
