83753 Series
Manufacturer: Belden Inc.
Beta
⌘K

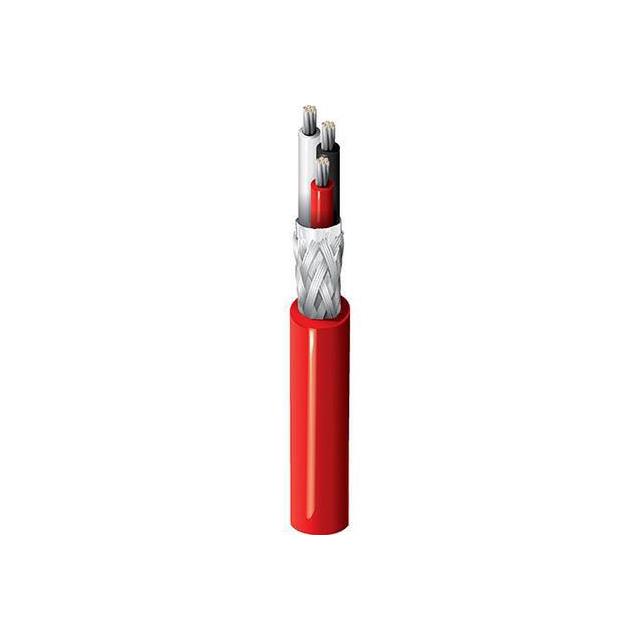

CABLE 3COND 14AWG RED SHLD
| Part | Shield Coverage | Shield Material | Usage | Operating Temperature [Min] | Operating Temperature [Max] | Voltage | Number of Conductors | Shield Type | Cable Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket Color | Length | Length | Jacket (Insulation) Thickness [x] | Jacket (Insulation) Thickness [x] | Wire Gauge | Conductor Material | Ratings | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Material | Conductor Insulation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 85 % 100 % | Aluminum Copper Tinned | Alarm Safety | -70 °C | 200 °C | 300 VDC | 3 | Braid Foil | Multi-Conductor | 7.21 mm | 0.284 in | Red | 152.4 m | 500 ft | 0.381 mm | 0.015 in | 14.5 AWG | Copper Tinned | UL Style CMP | 22 AWG | 7 | Fluorinated Ethylene-Propylene (FEP) Plenum | Fluorinated Ethylene-Propylene (FEP) |
Belden Inc. | 85 % 100 % | Aluminum Copper Tinned | Alarm Safety | -70 °C | 200 °C | 300 VDC | 3 | Braid Foil | Multi-Conductor | 7.21 mm | 0.284 in | Red | 304.8 m | 1000 ft | 0.381 mm | 0.015 in | 14.5 AWG | Copper Tinned | UL Style CMP | 22 AWG | 7 | Fluorinated Ethylene-Propylene (FEP) Plenum | Fluorinated Ethylene-Propylene (FEP) |
