391-015 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SINGLE FML 15POS 0.100

Part	Termination Rows	Material - Insulation	Pitch	Pitch	Contact Type	Contact Material	Number of Positions/Bay/Row	Number of Rows	Termination	Mounting Type	Number of Positions	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Card Thickness [Max]	Card Thickness [Min]	Read Out	Gender	Contact Finish Thickness	Contact Finish Thickness	Color	Flange Feature	Card Type	Flange Feature [diameter]	Flange Feature [diameter]

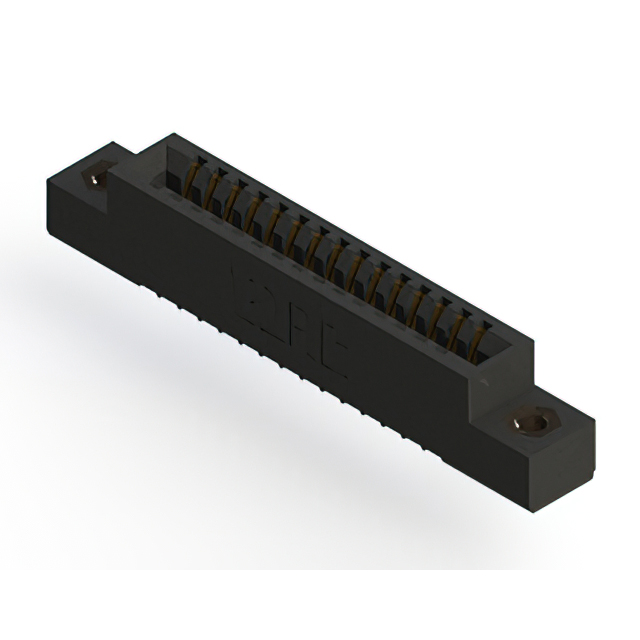

EDAC Inc. 391-015-520-107	1	Polyester Thermoplastic	0.1 "	2.54 mm	Semi Bellows	Copper Alloy	15	1	Solder	Through Hole	15	Gold	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Single	Female	0.25 Ám	10 Áin	Black	Flush Mount M3 Threaded Insert Top Opening	Non Specified - Single Edge

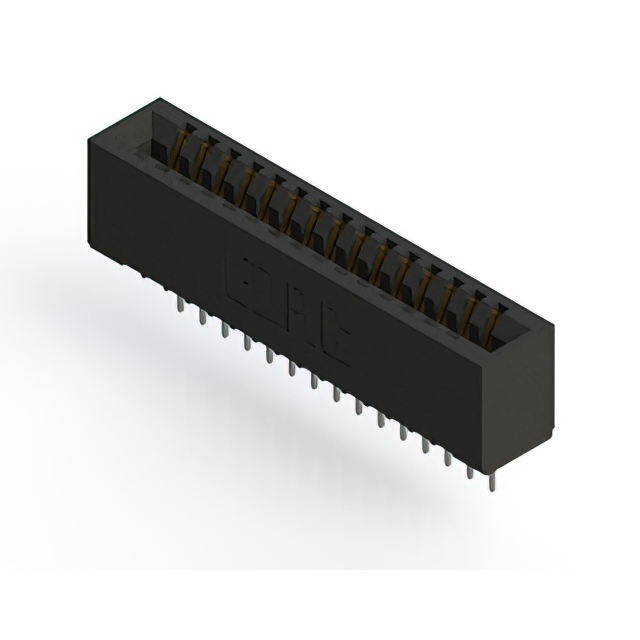

EDAC Inc. 391-015-521-101	1	Polyester Thermoplastic	0.1 "	2.54 mm	Semi Bellows	Copper Alloy	15	1	Solder	Through Hole	15	Gold	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Single	Female	0.25 Ám	10 Áin	Black		Non Specified - Single Edge

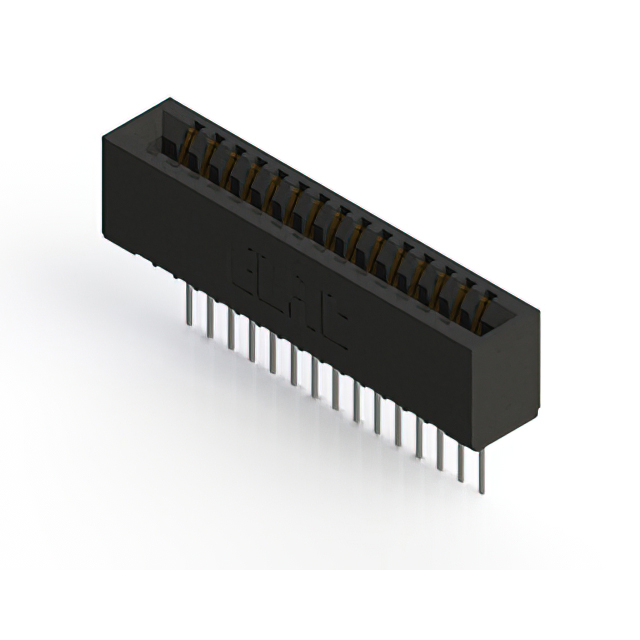

EDAC Inc. 391-015-522-101	1	Polyester Thermoplastic	0.1 "	2.54 mm	Semi Bellows	Copper Alloy	15	1	Solder	Through Hole	15	Gold	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Single	Female	0.25 Ám	10 Áin	Black		Non Specified - Single Edge
EDAC Inc. 391-015-524-108	1	Polyester Thermoplastic	0.1 "	2.54 mm	Semi Bellows	Copper Alloy	15	1	Solder	Through Hole	15	Gold	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Single	Female	0.25 Ám	10 Áin	Black	4-40 Flush Mount Threaded Insert Top Opening	Non Specified - Single Edge

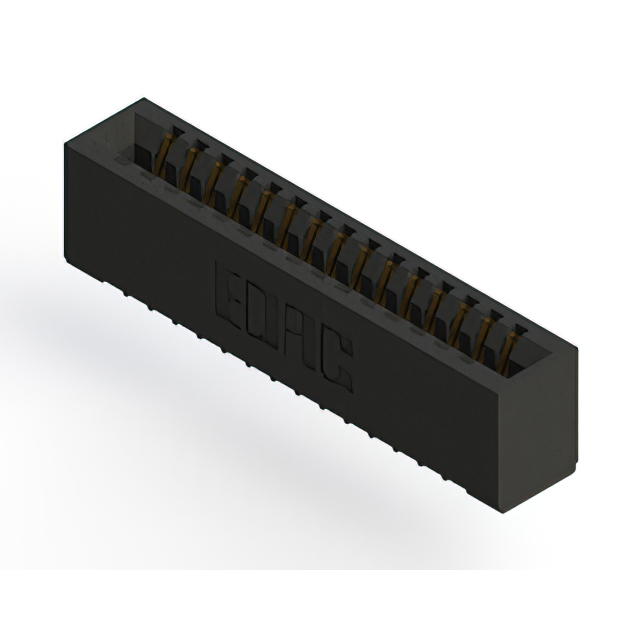

EDAC Inc. 391-015-524-101	1	Polyester Thermoplastic	0.1 "	2.54 mm	Semi Bellows	Copper Alloy	15	1	Solder	Through Hole	15	Gold	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Single	Female	0.25 Ám	10 Áin	Black		Non Specified - Single Edge

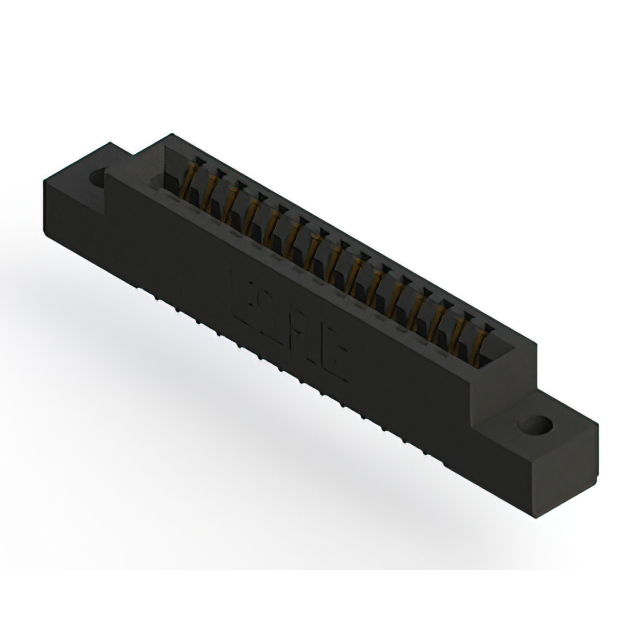

EDAC Inc. 391-015-524-102	1	Polyester Thermoplastic	0.1 "	2.54 mm	Semi Bellows	Copper Alloy	15	1	Solder	Through Hole	15	Gold	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Single	Female	0.25 Ám	10 Áin	Black	Flush Mount Top Opening Unthreaded	Non Specified - Single Edge	3.25 mm	0.128 "
EDAC Inc. 391-015-520-103	1	Polyester Thermoplastic	0.1 "	2.54 mm	Semi Bellows	Copper Alloy	15	1	Solder	Through Hole	15	Gold	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Single	Female	0.25 Ám	10 Áin	Black	Floating Bobbin Flush Mount	Non Specified - Single Edge	2.95 mm	0.116 "

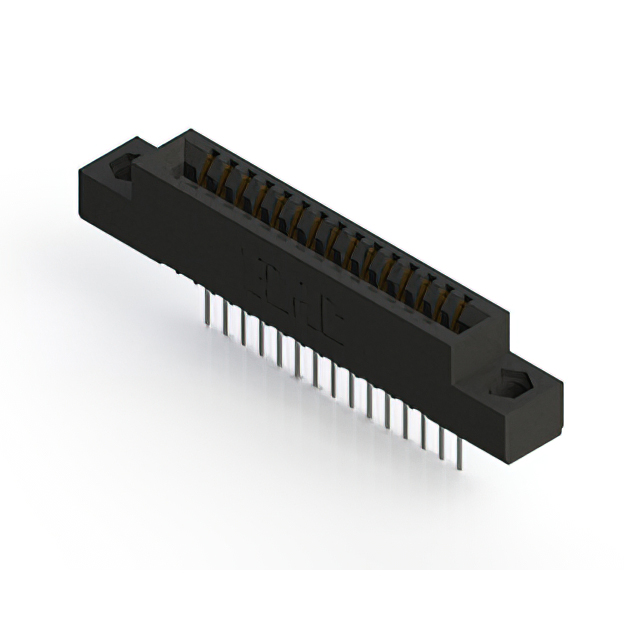

EDAC Inc. 391-015-522-104	1	Polyester Thermoplastic	0.1 "	2.54 mm	Semi Bellows	Copper Alloy	15	1	Solder	Through Hole	15	Gold	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Single	Female	0.25 Ám	10 Áin	Black	Flush Mount Top Opening Unthreaded	Non Specified - Single Edge	3.96 mm	0.156 "
EDAC Inc. 391-015-524-104	1	Polyester Thermoplastic	0.1 "	2.54 mm	Semi Bellows	Copper Alloy	15	1	Solder	Through Hole	15	Gold	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Single	Female	0.25 Ám	10 Áin	Black	Flush Mount Top Opening Unthreaded	Non Specified - Single Edge	3.96 mm	0.156 "
EDAC Inc. 391-015-520-108	1	Polyester Thermoplastic	0.1 "	2.54 mm	Semi Bellows	Copper Alloy	15	1	Solder	Through Hole	15	Gold	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Single	Female	0.25 Ám	10 Áin	Black	4-40 Flush Mount Threaded Insert Top Opening	Non Specified - Single Edge
