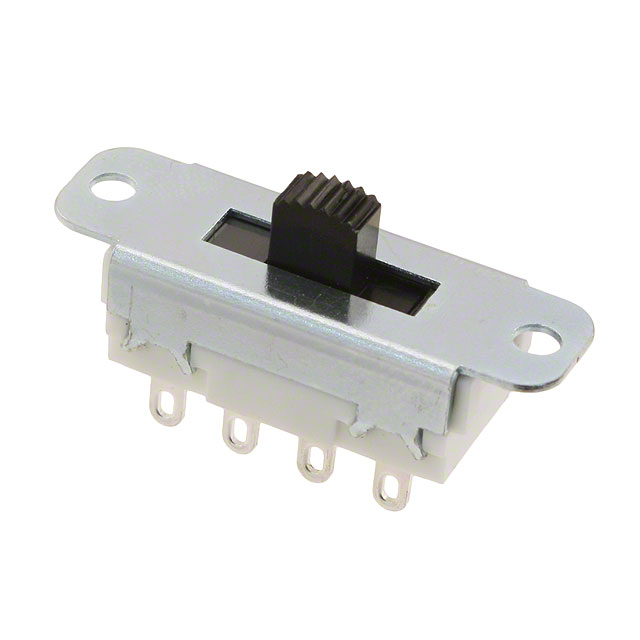

56313L Series
Manufacturer: SWITCHCRAFT/CONXALL
Beta
⌘K
SWITCH SLIDE ON ON ON DP3T TOP SLIDE 0.5A 125VAC 125VDC SOLDER LUG PANEL MOUNT
| Part | Switch Travel | Actuator Material | Contact Material | Actuator Length [x] | Voltage Rating - DC | Switch Function | Termination Style | Contact Timing | Contact Finish | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating - AC | Current Rating (Amps) | Mounting Type | Actuator Type | Circuit |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SWITCHCRAFT/CONXALL | 3.81 mm | Thermoplastic | Copper Alloy | 4.75 mm | 125 VDC | On-On-On | Solder Lug | Non-Shorting (BBM) | Silver | -20 ░C | 70 °C | 125 V | 500 mA | Panel Mount | Standard | DP3T |
