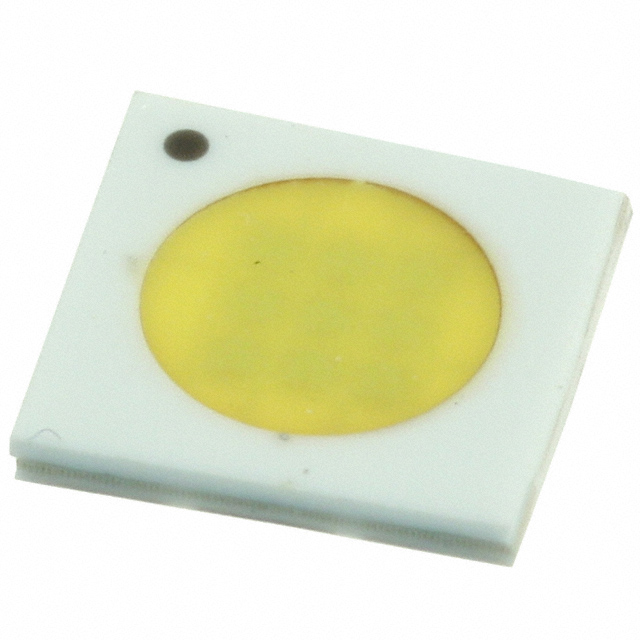

SML-LX4747 Series
Manufacturer: Lumex Opto/Components Inc.
Beta
⌘K
LED TITANBRITE COOL WHT SMD
| Part | Thermal Resistance of Package | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Color | Supplier Device Package | Current - Max [Max] | Flux @ 25°C, Current - Test | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Voltage - Forward (Vf) (Typ) | Package / Case | CCT (K) | Mounting Type | Lumens/Watt @ Current - Test | Current - Test | Viewing Angle |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Lumex Opto/Components Inc. | 3.5 °C/W | 1.2 mm | 0.047 " | Cool White | SMD | 1.2 A | 600 lm | 12 mm | 0.472 in | 0.472 " | 12 mm | 10.4 V | 6-SMD No Lead Exposed Pad | 6000 K | Surface Mount | 58 lm/W | 1 A | 120 ° |
 Lumex Opto/Components Inc. | 3.5 °C/W | 1.2 mm | 0.047 " | Warm White | SMD | 1.2 A | 530 lm | 12 mm | 0.472 in | 0.472 " | 12 mm | 10.4 V | 6-SMD No Lead Exposed Pad | 3000 K | Surface Mount | 1 A | 120 ° |
