RB5 Series
Manufacturer: E-Switch
Beta
⌘K

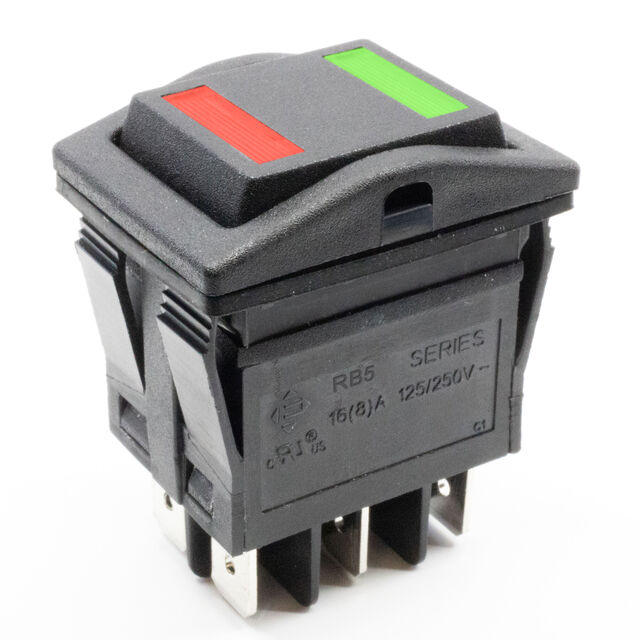

ROCKER SWITCH, IP67, 125V RED/GREEN LED, (ON)-OFF-(ON), DPDT, ILLUMINATED, PANEL MOUNT, BLACK
| Part | Electrical Life | Voltage Rating - DC | Illumination Type, Color | Switch Function | Actuator Type | Actuator Marking | Approval Agency | Termination Style | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Illumination Voltage (Nominal) | Ingress Protection | Circuit | Current Rating (Amps) | Mounting Type | Color - Actuator/Cap |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 10000 Cycles | 125 VDC | Green/Red LED | Mom-Off-Mom | Flat - Illuminated | No Marking | cULus ENEC15 | Quick Connect - 0.250" (6.3mm) | 22.1 mm | 30.23 mm | 125 VAC | IP67 - Dust Tight Waterproof | DPDT | 16 A | Panel Mount Snap-In | White |

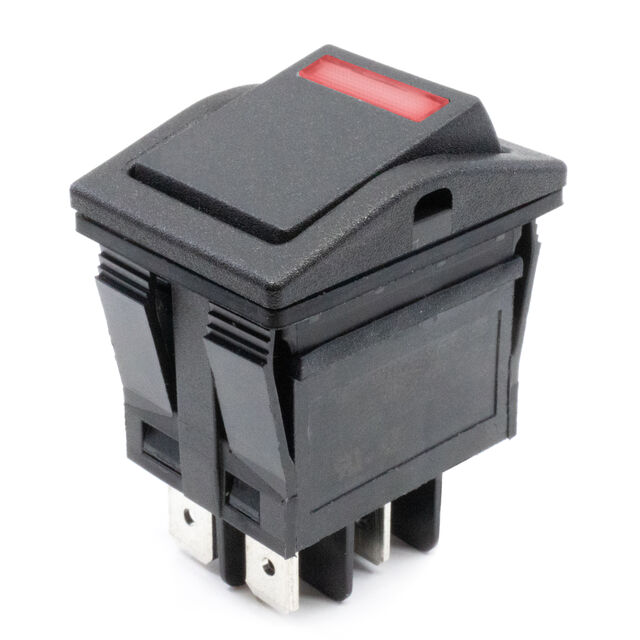

 E-Switch | 10000 Cycles | 125 VDC | LED Red | On-Off | Flat - Illuminated | No Marking | cULus ENEC | Quick Connect - 0.250" (6.3mm) | 22.1 mm | 30.23 mm | 125 VAC | IP67 - Dust Tight Waterproof | DPST | 16 A | Panel Mount Snap-In | White |
