THS4503-EP Series

Enhanced Product Wideband Low-Distortion Fully Differential Amplifier

Catalog

Enhanced Product Wideband Low-Distortion Fully Differential Amplifier

Part	Voltage - Input Offset	Voltage - Supply Span (Min) [Min]	Current - Supply	Package / Case	Package / Case [custom]	Output Type	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Number of Circuits	-3db Bandwidth	Current - Input Bias	Slew Rate	Voltage - Supply Span (Max) [Max]	Amplifier Type	Gain Bandwidth Product	Supplier Device Package	Package / Case [y]	Package / Case [x]	Current - Output / Channel	Package / Case	Supplied Contents	Voltage - Supply, Single/Dual (±) [Min]	Voltage - Supply, Single/Dual (±) [Max]	Board Type	Channels per IC	Current - Supply (Main IC)	Utilized IC / Part
Texas Instruments THS4503IDGNR	1 mV	4.5 V	23 mA	8-MSOP 8-TSSOP Exposed Pad	0.118 in 3 mm	Differential	85 °C	-40 °C	Surface Mount	1	370 MHz	4 µA	2800 V/µs	15 V	Differential	300 MHz	8-HVSSOP
Texas Instruments THS4503CDG4	1 mV	4.5 V	23 mA	8-SOIC		Differential	70 °C	0 °C	Surface Mount	1	370 MHz	4 µA	2800 V/µs	15 V	Differential	300 MHz	8-SOIC	3.9 mm	0.154 in
Texas Instruments THS4503CDGNRG4	1 mV	4.5 V	23 mA	8-MSOP 8-TSSOP Exposed Pad	0.118 in 3 mm	Differential	70 °C	0 °C	Surface Mount	1	370 MHz	4 µA	2800 V/µs	15 V	Differential	300 MHz	8-HVSSOP
Texas Instruments THS4503IDGK	1 mV	4.5 V	23 mA	8-MSOP 8-TSSOP	0.118 in	Differential	85 °C	-40 °C	Surface Mount	1	370 MHz	4 µA	2800 V/µs	15 V	Differential	300 MHz				120 mA	3 mm
Texas Instruments THS4503ID	1 mV	4.5 V	23 mA	8-SOIC		Differential	85 °C	-40 °C	Surface Mount	1	370 MHz	4 µA	2800 V/µs	15 V	Differential	300 MHz	8-SOIC	3.9 mm	0.154 in	120 mA
Texas Instruments THS4503MDGNREP	1 mV	4.5 V	23 mA	8-MSOP 8-TSSOP Exposed Pad	0.118 in 3 mm	Differential	125 °C	-55 °C	Surface Mount	1	370 MHz	4 µA	2800 V/µs	15 V	Differential	300 MHz	8-HVSSOP			120 mA
Texas Instruments THS4503IDGN	1 mV	4.5 V	23 mA	8-MSOP 8-TSSOP Exposed Pad	0.118 in 3 mm	Differential	85 °C	-40 °C	Surface Mount	1	370 MHz	4 µA	2800 V/µs	15 V	Differential	300 MHz	8-HVSSOP			120 mA

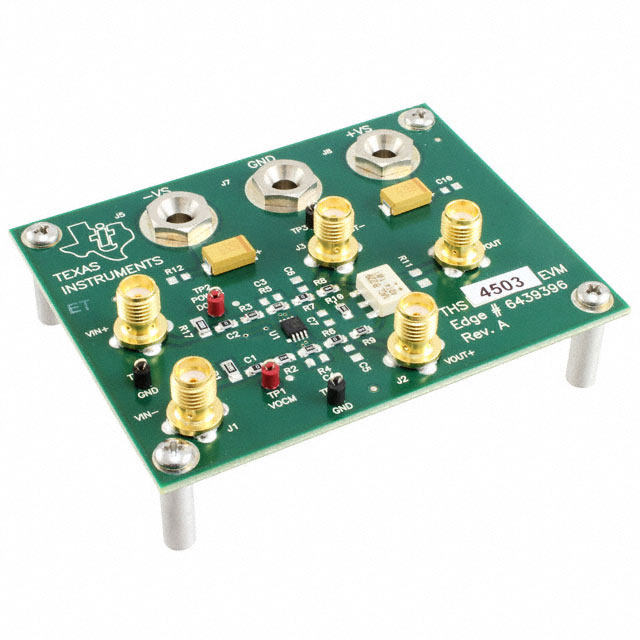

Texas Instruments THS4503EVM						Differential					370 MHz		2800 V/µs		Differential					120 mA		Board(s)	-2.25 V 4.5 V	7.5 V 15 V	Fully Populated	1 - Single	23 mA	THS4503
Texas Instruments THS4503CDGN	1 mV	4.5 V	23 mA	8-MSOP 8-TSSOP Exposed Pad	0.118 in 3 mm	Differential	70 °C	0 °C	Surface Mount	1	370 MHz	4 µA	2800 V/µs	15 V	Differential	300 MHz	8-HVSSOP
Texas Instruments THS4503CDGNR	1 mV	4.5 V	23 mA	8-MSOP 8-TSSOP Exposed Pad	0.118 in 3 mm	Differential	70 °C	0 °C	Surface Mount	1	370 MHz	4 µA	2800 V/µs	15 V	Differential	300 MHz	8-HVSSOP

Catalog

Enhanced Product Wideband Low-Distortion Fully Differential Amplifier

Key Features

• Controlled BaselineOne Assembly/Test Site, One Fabrication SiteEnhanced Diminishing Manufacturing Sources (DMS) SupportEnhanced Product-Change NotificationQualification Pedigree(1)Fully Differential ArchitectureBandwidth: 370 MHzSlew Rate: 2800 V/µsIMD3: .95 dBc at 30 MHzOIP3: 51 dBm at 30 MHzOutput Common-Mode ControlWide Power Supply Voltage Range: 5 V, ±5 V, 12 V, 15 VCentered Input Common-Mode RangeEvaluation Module AvailableControlled BaselineOne Assembly/Test Site, One Fabrication SiteEnhanced Diminishing Manufacturing Sources (DMS) SupportEnhanced Product-Change NotificationQualification Pedigree(1)Fully Differential ArchitectureBandwidth: 370 MHzSlew Rate: 2800 V/µsIMD3: .95 dBc at 30 MHzOIP3: 51 dBm at 30 MHzOutput Common-Mode ControlWide Power Supply Voltage Range: 5 V, ±5 V, 12 V, 15 VCentered Input Common-Mode RangeEvaluation Module Available

Description

The THS4503 is a high-performance fully differential amplifier from Texas Instruments. The THS4503, without power-down capability, set new performance standards for fully differential amplifiers with unsurpassed linearity, supporting 14-bit operation through 40 MHz. Package options include the 8-pin MSOP with PowerPAD™ for a smaller footprint, enhanced ac performance, and improved thermal dissipation capability. WARNING: The THS4503 may have low-level oscillation when the die temperature (also known as the junction temperature) exceeds 60°C. These devices are not recommended for new designs where the die temperature is expected to exceed 60°C. For more information, see Maximum Die Temperature to Oscillation. The THS4503 is a high-performance fully differential amplifier from Texas Instruments. The THS4503, without power-down capability, set new performance standards for fully differential amplifiers with unsurpassed linearity, supporting 14-bit operation through 40 MHz. Package options include the 8-pin MSOP with PowerPAD™ for a smaller footprint, enhanced ac performance, and improved thermal dissipation capability. WARNING: The THS4503 may have low-level oscillation when the die temperature (also known as the junction temperature) exceeds 60°C. These devices are not recommended for new designs where the die temperature is expected to exceed 60°C. For more information, see Maximum Die Temperature to Oscillation.
