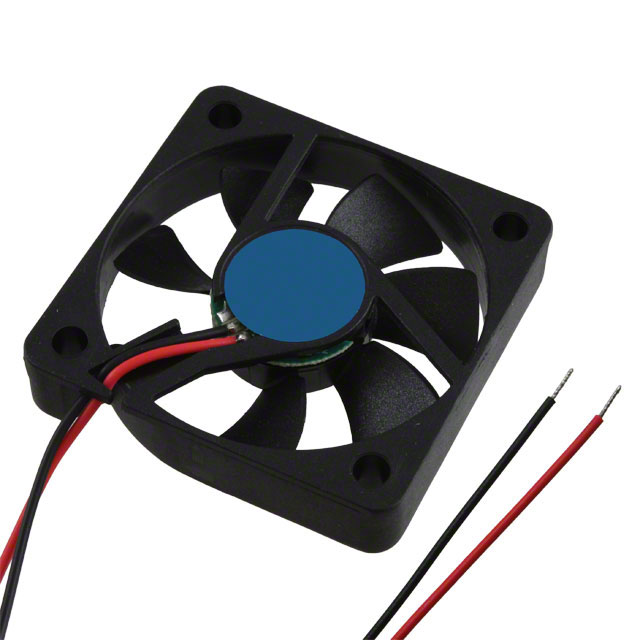

OD5010 Series
Manufacturer: ORION FANS
Beta
⌘K

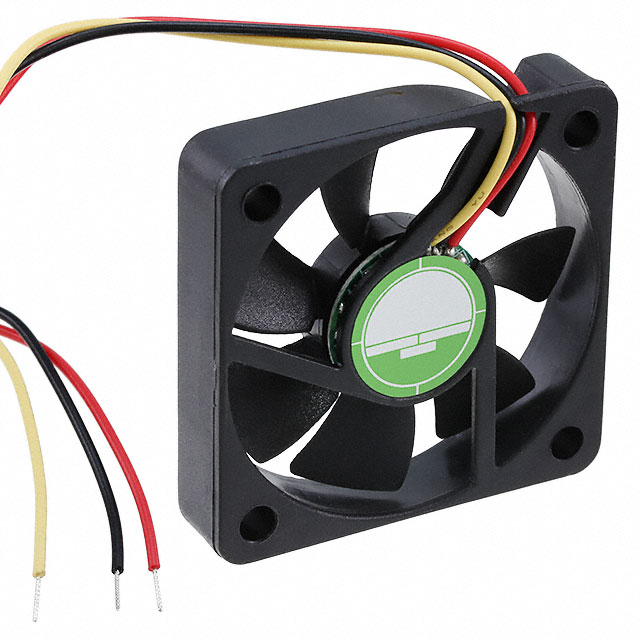

FAN AXIAL 50X10.5MM 12VDC WIRE
| Part | Material - Blade | Current Rating (Amps) | Material - Frame | Fan Type | Width [y] | Static Pressure | Static Pressure | Voltage - Rated | Air Flow | Air Flow | Termination | Noise | Operating Temperature [Max] | Operating Temperature [Min] | Power (Watts) | Features | Bearing Type | RPM | Size / Dimension [x] | Size / Dimension [z] | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ORION FANS | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | 120 mA | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | Tubeaxial | 10.5 mm | 0.1 in H2O | 24.9 Pa | 12 VDC | 11.2 CFM | 0.314 m³/min | 3 Wire Leads | 26 dB | 70 °C | -10 °C | 1.1 W | Locked Rotor Sensor | Sealed Sleeve | 5000 RPM | 50 mm | 50 mm | |
 ORION FANS | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | Tubeaxial | 10.5 mm | 0.018 in H2O | 4.4 Pa | 12 VDC | 2 Wire Leads | 35.1 dB(A) | 65 °C | -20 ░C | 1.92 W | Ball | 6490 RPM | 50 mm | 50 mm | (-20 ~ 65°C) | ||||
ORION FANS | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | Tubeaxial | 10.5 mm | 5 V | 2 Wire Leads | Sleeve | 50 mm | 50 mm | ||||||||||||
ORION FANS | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | Tubeaxial | 10.5 mm | 5 V | 3 Wire Leads | Speed Sensor (Tach) | Ball | 50 mm | 50 mm | |||||||||||
 ORION FANS | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | Tubeaxial | 10.5 mm | 24 VDC | 2 Wire Leads | Sealed Sleeve | 50 mm | 50 mm | ||||||||||||
 ORION FANS | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | Tubeaxial | 10.5 mm | 5 V | 4 Wire Leads | PWM Control Speed Sensor (Tach) | Sleeve | 50 mm | 50 mm | |||||||||||
ORION FANS | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | Tubeaxial | 10.5 mm | 12 VDC | 3 Wire Leads | Speed Sensor (Tach) | Ball | 50 mm | 50 mm | |||||||||||
ORION FANS | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | Tubeaxial | 10.5 mm | 24 VDC | 3 Wire Leads | Speed Sensor (Tach) | Sleeve | 50 mm | 50 mm | |||||||||||
ORION FANS | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | Tubeaxial | 10.5 mm | 5 V | 3 Wire Leads | Locked Rotor Sensor | Ball | 50 mm | 50 mm | |||||||||||
ORION FANS | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | Tubeaxial | 10.5 mm | 12 VDC | 3 Wire Leads | Locked Rotor Sensor | Sleeve | 50 mm | 50 mm |
