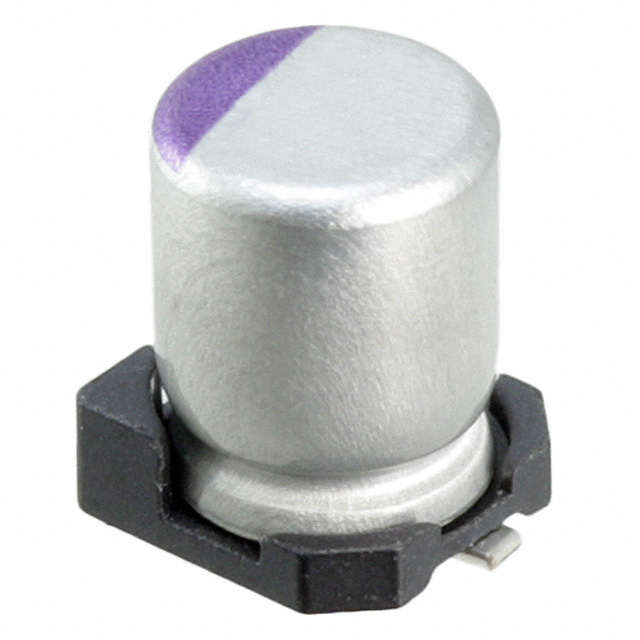

10SVP Series

Manufacturer: Panasonic Electronic Components

Catalog

CAPACITOR: POLYMER; 150UF; 10VDC; SMD; OS-CON SVP; ±20%; Ø10X8MM

Part	Lifetime @ Temp.	Tolerance	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Capacitance	Operating Temperature [Min]	Operating Temperature [Max]	Type	Voltage - Rated	Ripple Current @ High Frequency	Applications	Size / Dimension [diameter]	Size / Dimension [diameter]	Ripple Current @ Low Frequency	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	ESR (Equivalent Series Resistance)	Package / Case	Height - Seated (Max)

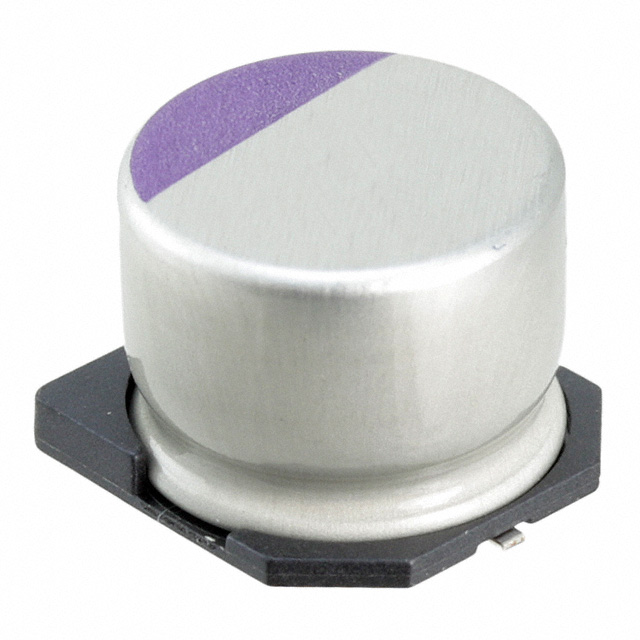

Panasonic Electronic Components 10SVP150M	2000 Hrs	20 %	0.406 "	0.406 in	10.3 mm	10.3 mm	150 µF	-55 C	105 ░C	Polymer	10 V	3.02 A	General Purpose	0.394 in	10 mm	151 mA	Surface Mount	8 mm	0.315 in	30 mOhms	Radial Can - SMD

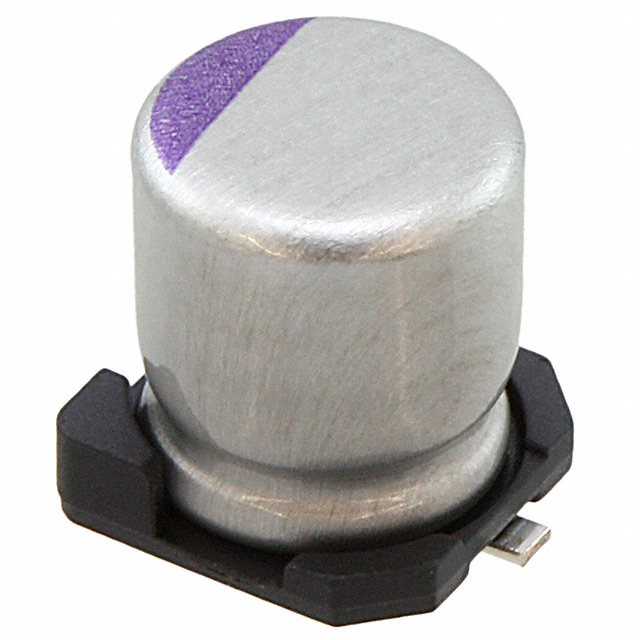

Panasonic Electronic Components 10SVP33M	2000 Hrs	20 %			0.209 in 5.3 mm	0.209 in 5.3 mm	33 ÁF	-55 C	105 ░C	Polymer	10 V	1.1 A	General Purpose	0.197 in	5 mm		Surface Mount		0.236 "	70 mOhms	Radial Can - SMD	6 mm
Panasonic Electronic Components 10SVP6R8M	2000 Hrs	20 %	0.169 in	0.169 "	4.3 mm	4.3 mm	6.8 µF	-55 C	105 ░C	Polymer	10 V		General Purpose	0.157 in	4 mm	33.5 mA	Surface Mount	5.5 mm	0.217 "	240 mOhm	Radial Can - SMD
Panasonic Electronic Components 10SVP4R7M	2000 Hrs	20 %	0.169 in	0.169 "	4.3 mm	4.3 mm	4.7 µF	-55 C	105 ░C	Polymer	10 V		General Purpose	0.157 in	4 mm	33.5 mA	Surface Mount	5.5 mm	0.217 "	240 mOhm	Radial Can - SMD
Panasonic Electronic Components 10SVP10M	2000 Hrs	20 %	0.169 in	0.169 "	4.3 mm	4.3 mm	10 µF	-55 C	105 ░C	Polymer	10 V	700 mA	General Purpose	0.157 in	4 mm	35 mA	Surface Mount	5.5 mm	0.217 "	220 mOhms	Radial Can - SMD
Panasonic Electronic Components 10SVP150MX	2000 Hrs	20 %	0.327 in	0.327 in	8.3 mm	8.3 mm	150 µF	-55 C	105 ░C	Polymer	10 V	2.56 A	General Purpose	0.315 in	8 mm	128 mA	Surface Mount	7 mm	0.276 in	35 mOhms	Radial Can - SMD

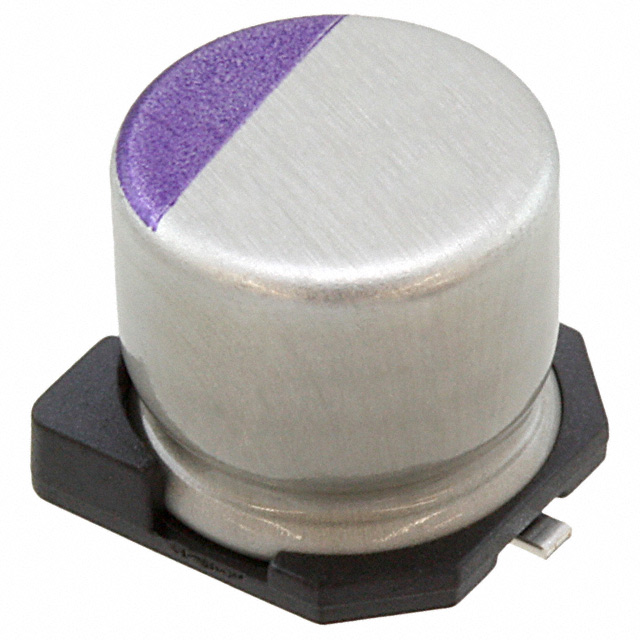

Panasonic Electronic Components 10SVP47M	2000 Hrs	20 %	0.26 in	0.26 in	6.6 mm	6.6 mm	47 µF	-55 C	105 ░C	Polymer	10 V	1.62 A	General Purpose	0.248 "	6.3 mm	81 mA	Surface Mount		0.236 "	50 mOhms	Radial Can - SMD	6 mm
Panasonic Electronic Components 10SVP330MX	2000 Hrs	20 %	0.406 "	0.406 in	10.3 mm	10.3 mm	330 µF	-55 C	105 ░C	Polymer	10 V	3.7 A	General Purpose	0.394 in	10 mm	185 mA	Surface Mount	8 mm	0.315 in	25 mOhm	Radial Can - SMD
Panasonic Electronic Components 10SVP120M	2000 Hrs	20 %	0.327 in	0.327 in	8.3 mm	8.3 mm	120 µF	-55 C	105 ░C	Polymer	10 V	2.56 A	General Purpose	0.315 in	8 mm	128 mA	Surface Mount	7 mm	0.276 in	35 mOhms	Radial Can - SMD
Panasonic Electronic Components 10SVP560M	2000 Hrs	20 %	0.406 "	0.406 in	10.3 mm	10.3 mm	560 µF	-55 C	105 ░C	Polymer	10 V	5.23 A	General Purpose	0.394 in	10 mm	261.5 mA	Surface Mount	12.7 mm	0.5 in	13 mOhms	Radial Can - SMD
