INND-TS30 Series

Catalog

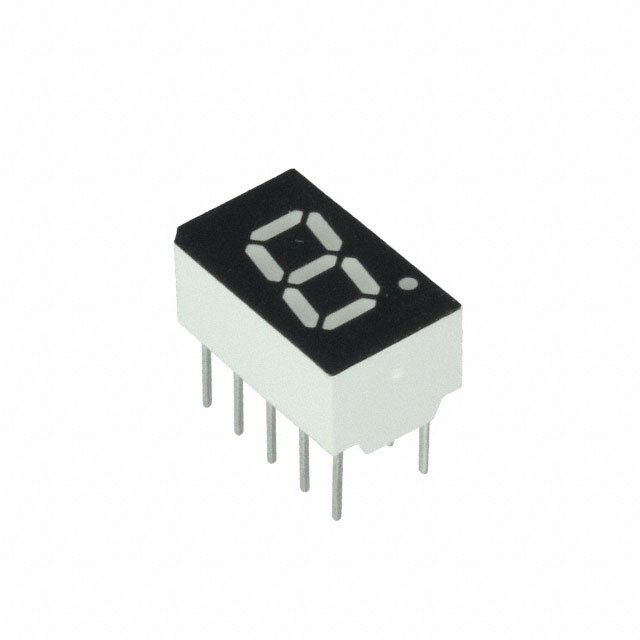

DISP 7SEG 0.3" SGL YLW-GRN 10DIP

Part	Digit/Alpha Size	Digit/Alpha Size	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Wavelength - Peak [custom]	Current - Test	Package / Case	Package / Case	Package / Case	Voltage - Forward (Vf) (Typ)	Color	Common Pin	Number of Characters	Power Dissipation (Max) [Max]	Millicandela Rating	Display Type	Wavelength - Peak
Inolux Corporation INND-TS30YGAG	7.62 mm	0.3 in	12.7 mm	0.3 "	0.5 "	7.62 mm	0.24 in	6.1 mm	572 nm	20 mA	10-DIP	0.2 in	5.08 mm	2 V	Yellow-Green	Common Anode	1	70 mW	12 mcd	7-Segment
Inolux Corporation INND-TS30GCG	7.62 mm	0.3 in	12.7 mm	0.3 "	0.5 "	7.62 mm	0.24 in	6.1 mm		20 mA	10-DIP	0.2 in	5.08 mm	3.2 V	Green	Common Cathode	1	114 mW	120 mcd	7-Segment	525 nm
Inolux Corporation INND-TS30YCG	7.62 mm	0.3 in	12.7 mm	0.3 "	0.5 "	7.62 mm	0.24 in	6.1 mm		20 mA	10-DIP	0.2 in	5.08 mm	2 V	Yellow	Common Cathode	1	70 mW	30 mcd	7-Segment	592 nm
Inolux Corporation INND-TS30BCG	7.62 mm	0.3 in	12.7 mm	0.3 "	0.5 "	7.62 mm	0.24 in	6.1 mm		20 mA	10-DIP	0.2 in	5.08 mm	3.2 V	Blue	Common Cathode	1	114 mW	17 mcd	7-Segment	465 nm
Inolux Corporation INND-TS30BAG	7.62 mm	0.3 in	12.7 mm	0.3 "	0.5 "	7.62 mm	0.24 in	6.1 mm		20 mA	10-DIP	0.2 in	5.08 mm	3.2 V	Blue	Common Anode	1	114 mW	17 mcd	7-Segment	465 nm
Inolux Corporation INND-TS30YGAB	7.62 mm	0.3 in	12.7 mm	0.3 "	0.5 "	7.62 mm	0.24 in	6.1 mm	572 nm	20 mA	10-DIP	0.2 in	5.08 mm	2 V	Yellow-Green	Common Anode	1	70 mW	12 mcd	7-Segment
Inolux Corporation INND-TS30GAB	7.62 mm	0.3 in	12.7 mm	0.3 "	0.5 "	7.62 mm	0.24 in	6.1 mm		20 mA	10-DIP	0.2 in	5.08 mm	3.2 V	Green	Common Anode	1	114 mW	120 mcd	7-Segment	525 nm
