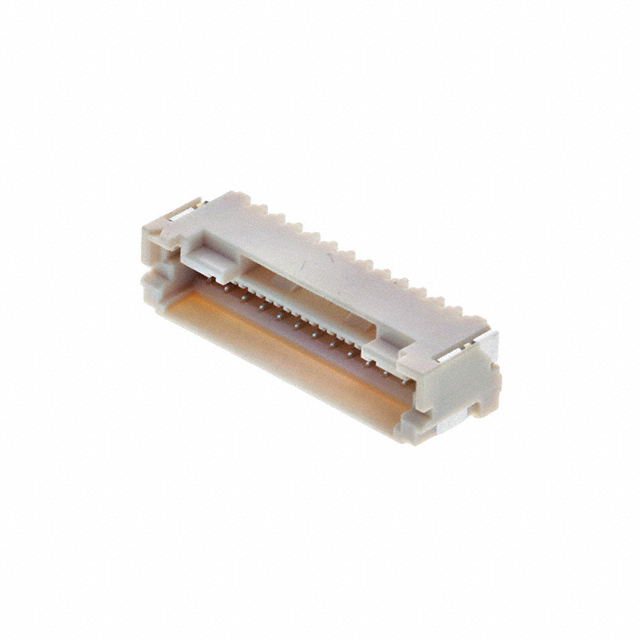

SM13B-ZE Series
Manufacturer: JST Sales America Inc.
Beta
⌘K
CONN HEADER SMD R/A 13POS 1.5MM
| Part | Number of Positions | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Termination | Contact Type | Insulation Height [z] | Insulation Height [z] | Shrouding | Contact Material | Insulation Material | Current Rating (Amps) | Number of Rows | Material Flammability Rating | Number of Positions Loaded | Insulation Color | Features | Contact Shape | Voltage Rating | Fastening Type | Contact Finish - Post | Connector Type | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | 13 | 85 °C | -25 °C | Right Angle Surface Mount | Solder | Outer Shroud Contact | 0.228 " | 5.8 mm | Shrouded - 4 Wall | Copper Alloy | Nylon Polyamide (PA) | 2 A | 1 | UL94 V-0 | All | Natural | Solder Retention | Rectangular | 100 V | Locking Ramp | Tin | Header | Board to Cable/Wire |
