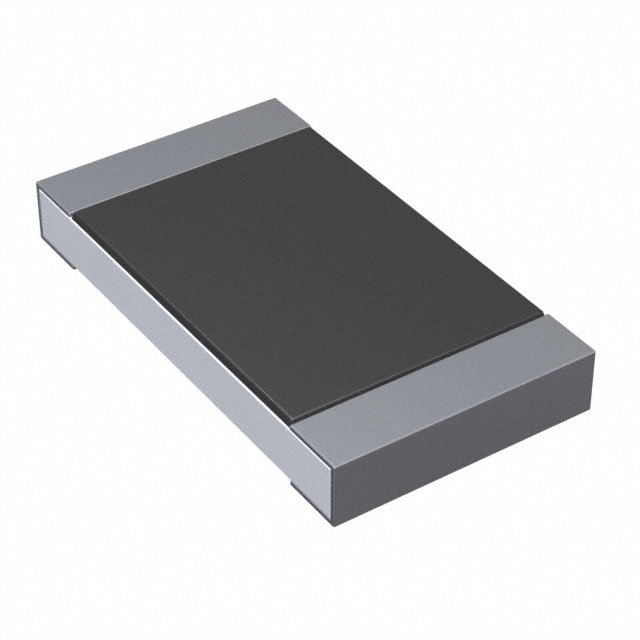

CR2010 Series
Manufacturer: Bourns Inc.
Beta
⌘K
RES SMD 1.21K OHM 1% 1/2W 2010
| Part | Tolerance | Number of Terminations [custom] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Power (Watts) | Power (Watts) | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Temperature Coefficient | Supplier Device Package | Resistance | Composition | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 1 % | 2 | 5 mm | 0.098 in | 0.197 in | 2.5 mm | 0.5 W | 0.5 W | 0.7 mm | 0.028 " | 2010 (5025 Metric) | 155 C | -55 C | 100 ppm/°C | 2010 | 1.21 kOhms | Thick Film | ||
Bourns Inc. | 5 % | 2 | 5 mm | 0.098 in | 0.197 in | 2.5 mm | 0.5 W | 0.5 W | 0.7 mm | 0.028 " | 2010 (5025 Metric) | 155 C | -55 C | 200 ppm/°C | 2010 | 100 kOhms | Thick Film | ||
Bourns Inc. | 5 % | 2 | 5 mm | 0.098 in | 0.197 in | 2.5 mm | 0.5 W | 0.5 W | 0.7 mm | 0.028 " | 2010 (5025 Metric) | 155 C | -55 C | 200 ppm/°C | 2010 | 1500 Ohms | Thick Film | ||
Bourns Inc. | 1 % | 2 | 5 mm | 0.098 in | 0.197 in | 2.5 mm | 0.5 W | 0.5 W | 0.7 mm | 0.028 " | 2010 (5025 Metric) | 155 C | -55 C | 100 ppm/°C | 2010 | 73.2 Ohms | Thick Film | ||
Bourns Inc. | 5 % | 2 | 5 mm | 0.098 in | 0.197 in | 2.5 mm | 0.5 W | 0.5 W | 0.7 mm | 0.028 " | 2010 (5025 Metric) | 155 C | -55 C | 200 ppm/°C | 2010 | 680 Ohms | Thick Film | ||
Bourns Inc. | 1 % | 2 | 5 mm | 0.098 in | 0.197 in | 2.5 mm | 0.5 W | 0.5 W | 0.7 mm | 0.028 " | 2010 (5025 Metric) | 155 C | -55 C | 100 ppm/°C | 2010 | 3300 Ohms | Thick Film | AEC-Q200 | Automotive AEC-Q200 |
Bourns Inc. | 1 % | 2 | 5 mm | 0.098 in | 0.197 in | 2.5 mm | 0.5 W | 0.5 W | 0.7 mm | 0.028 " | 2010 (5025 Metric) | 155 C | -55 C | 100 ppm/°C | 2010 | 45.3 Ohms | Thick Film | ||
Bourns Inc. | 1 % | 2 | 5 mm | 0.098 in | 0.197 in | 2.5 mm | 0.5 W | 0.5 W | 0.7 mm | 0.028 " | 2010 (5025 Metric) | 155 C | -55 C | 100 ppm/°C | 2010 | 23.7 Ohms | Thick Film | AEC-Q200 | Automotive AEC-Q200 |
Bourns Inc. | 5 % | 2 | 5 mm | 0.098 in | 0.197 in | 2.5 mm | 0.5 W | 0.5 W | 0.7 mm | 0.028 " | 2010 (5025 Metric) | 155 C | -55 C | 200 ppm/°C | 2010 | 51 Ohms | Thick Film | ||
Bourns Inc. | 5 % | 2 | 5 mm | 0.098 in | 0.197 in | 2.5 mm | 0.5 W | 0.5 W | 0.7 mm | 0.028 " | 2010 (5025 Metric) | 155 C | -55 C | 200 ppm/°C | 2010 | 2200 Ohms | Thick Film |
