154 Series

Catalog

SENSOR 300PSIG 0.1V

Part	Termination Style	Applications	Accuracy	Operating Temperature [Max]	Operating Temperature [Min]	Features	Maximum Pressure	Maximum Pressure	Operating Pressure	Operating Pressure	Port Style	Pressure Type	Output [Max]	Output Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Package / Case	Maximum Pressure [Max]

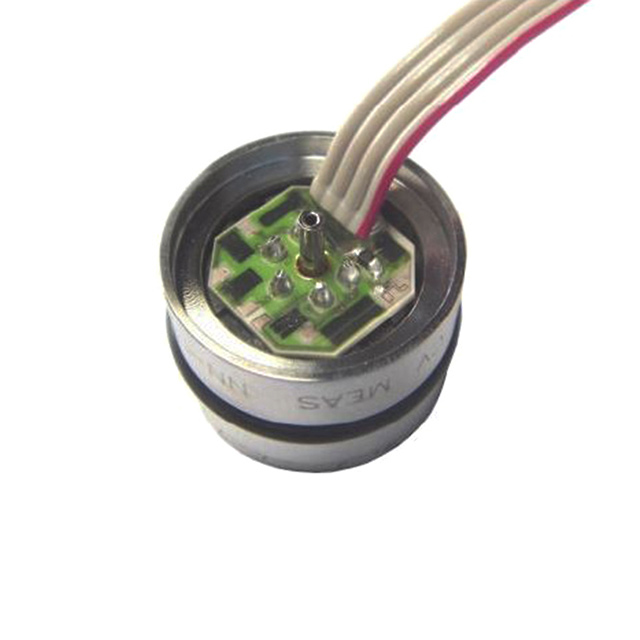

TE Connectivity AMP Connectors 154CV-300G-R	Wire Leads	Board Mount	1 %	125 °C	-40 C	Temperature Compensated	6205.28 kPa	900 PSI	300 PSI	2068.43 kPa	No Port	Vented Gauge	100 mV	Wheatstone Bridge	14 V	10 VDC	Module

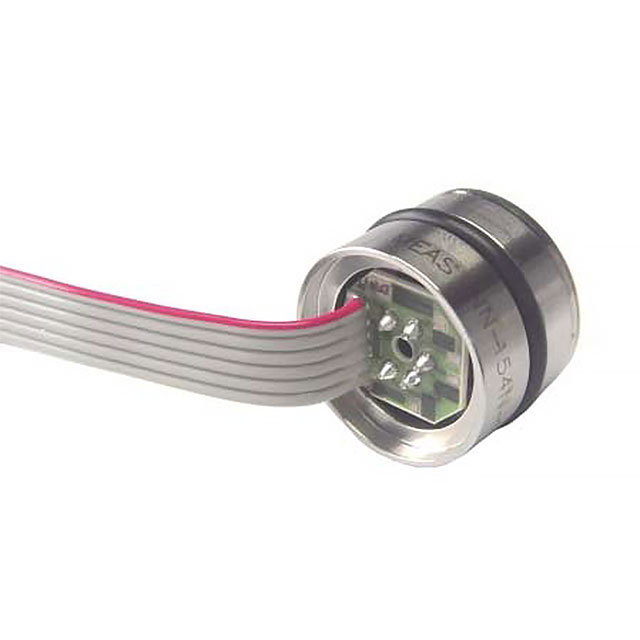

TE Connectivity AMP Connectors 154N-500G-RT	Connector	Board Mount	0.1 %	125 °C	-40 C	Temperature Compensated	10342.14 kPa		500 PSI	3447.38 kPa	No Port	Vented Gauge	100 mV	Wheatstone Bridge			Module	1500 PSI

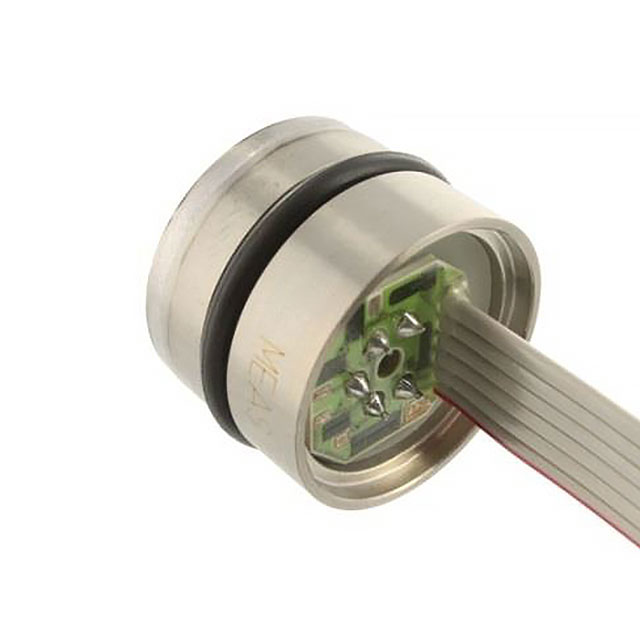

TE Connectivity AMP Connectors 154BC-T-012BA-C	Connector	Board Mount	0.3 %	125 °C	-40 C	Temperature Compensated	2400 kPa	348.09 PSI	174.05 PSI	12 bar	No Port		100 mV	Wheatstone Bridge			Module
TE Connectivity AMP Connectors 154BC-T-028BA-C	Connector	Board Mount	0.3 %	125 °C	-40 C	Temperature Compensated	5600 kPa	812.21 PSI	406.11 PSI	28 bar	No Port		100 mV	Wheatstone Bridge			Module

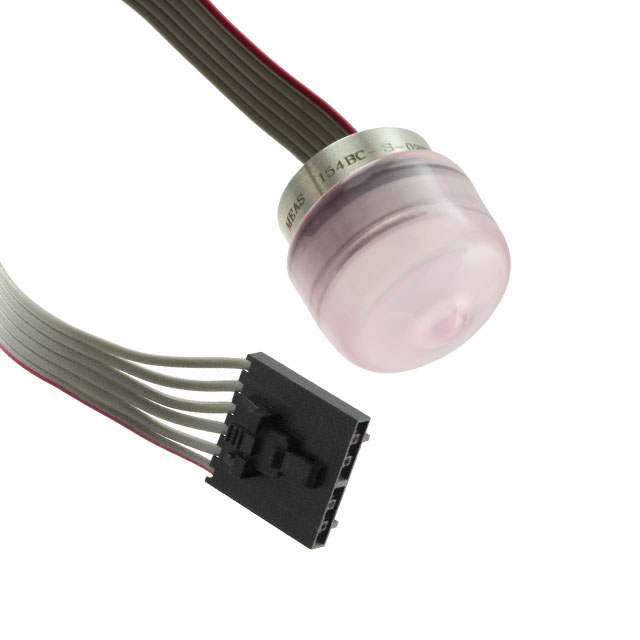

TE Connectivity AMP Connectors 154BC-S-028BA-C	Connector	Board Mount	0.3 %	125 °C	-40 C	Temperature Compensated	5600 kPa	812.21 PSI	406.11 PSI	28 bar	No Port		100 mV	Wheatstone Bridge			Module
