8325 Series

Catalog

CONN D-SUB RCPT 25P PNL MNT IDC

Part	Color	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Connector Style	Number of Rows [custom]	Shell Size, Connector Layout	Shell Size, Connector Layout [x]	Number of Positions	Termination	Mounting Type	Contact Finish	Material Flammability Rating	Contact Finish Thickness	Contact Finish Thickness	Contact Type	Connector Type	Flange Feature	Primary Material	Flange Feature	Features
3M Electronic Specialty 8325-7009	Gray	Glass Filled Polybutylene Terephthalate (PBT) Polyester	-55 C	105 ░C	Copper Alloy	D-Sub	2	B DB	3	25	IDC Ribbon Cable	Panel Mount	Gold	UL94 V-0	30 Áin	0.76 Ám	Signal	Receptacle Female Sockets	Housing/Shell (Unthreaded)
3M Electronic Specialty 8325-7003	Gray	Glass Filled Polybutylene Terephthalate (PBT) Polyester	-55 C	105 ░C	Copper Alloy	D-Sub	2	B DB	3	25	IDC Ribbon Cable	Panel Mount	Gold	UL94 V-0	30 in 30 Áin	0.76 m 0.76 Ám	Signal	Receptacle Female Sockets	Housing/Shell	Metal	4-40	Feed Through

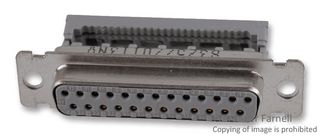

3M Electronic Specialty 8325-6000	Gray	Glass Filled Polybutylene Terephthalate (PBT) Polyester	-55 C	105 ░C	Copper Alloy	D-Sub	2	B DB	3	25	IDC Ribbon Cable	Panel Mount	Gold	UL94 V-0	30 Áin	0.76 Ám	Signal	Receptacle Female Sockets	Housing/Shell (Unthreaded)			Feed Through
3M Electronic Specialty 8325-8009	Gray	Glass Filled Polybutylene Terephthalate (PBT) Polyester	-55 C	105 ░C	Copper Alloy	D-Sub	2	B DB	3	25	IDC Ribbon Cable	Panel Mount	Gold	UL94 V-0	30 Áin	0.76 Ám	Signal	Receptacle Female Sockets	Housing/Shell (Unthreaded)			Feed Through
3M Electronic Specialty 8325-7000	Gray	Glass Filled Polybutylene Terephthalate (PBT) Polyester	-55 C	105 ░C	Copper Alloy	D-Sub	2	B DB	3	25	IDC Ribbon Cable	Panel Mount	Gold	UL94 V-0	30 Áin	0.76 Ám	Signal	Receptacle Female Sockets	Housing/Shell (Unthreaded)	Metal		Feed Through
