TOP259 Series

Catalog

IC OFFLINE SWITCH FLYBACK 7ESIP

Part	Voltage - Breakdown	Topology	Operating Temperature [Min]	Operating Temperature [Max]	Duty Cycle	Output Isolation	Frequency - Switching	Mounting Type	Package / Case	Supplier Device Package	Fault Protection	Power (Watts)

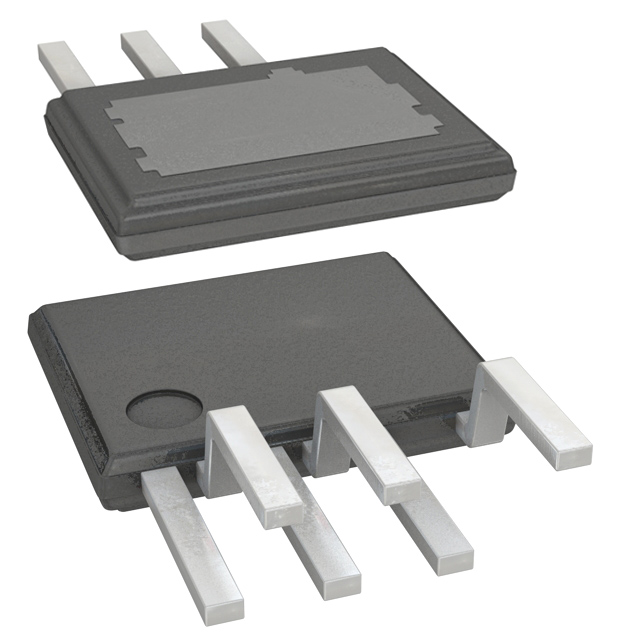

POWER INTEGRATIONS TOP259EN	700 V	Flyback	-40 °C	150 °C	78 %	Isolated	66 kHz 132 kHz	Through Hole	6 Leads 7-SSIP Exposed Pad Formed Leads	eSIP-7C	Current Limiting Over Temperature Over Voltage	238 W
POWER INTEGRATIONS TOP259EG	700 V	Flyback	-40 °C	150 °C	78 %	Isolated	66 kHz 132 kHz	Through Hole	6 Leads 7-SSIP Exposed Pad Formed Leads	eSIP-7C	Current Limiting Over Temperature Over Voltage	238 W

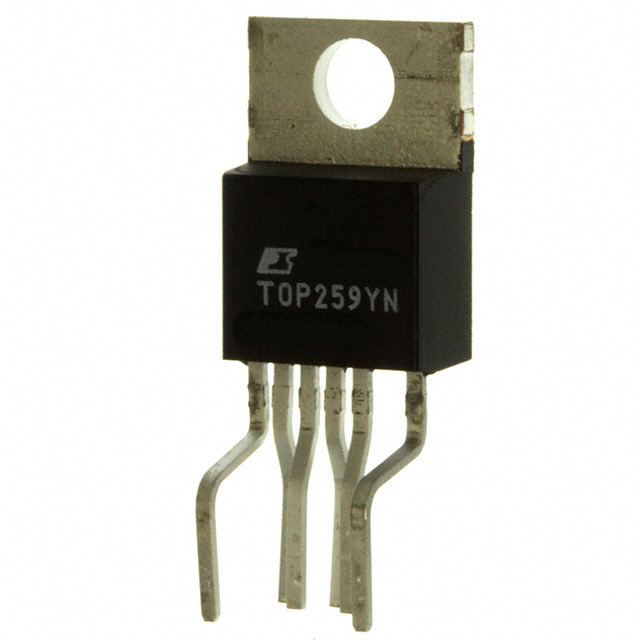

POWER INTEGRATIONS TOP259YN	700 V	Flyback	-40 °C	150 °C	78 %	Isolated	66 kHz	Through Hole	TO-220-7 Formed Leads 6 Leads	TO-220-7C	Current Limiting Over Temperature Over Voltage	238 W
