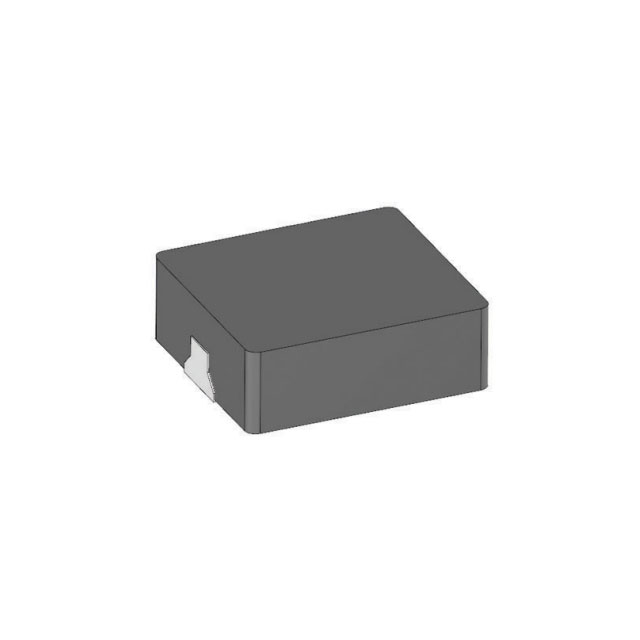

AMPLA1004S Series
Manufacturer: Abracon LLC
Beta
⌘K
FIXED IND 8.2UH 8A 22.5 MOHM SMD
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Material - Core | Current - Saturation (Isat) | Inductance | Package / Case | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Current Rating (Amps) | DC Resistance (DCR) [Max] | Inductance Frequency - Test | Shielding | Mounting Type | Type | Height - Seated (Max) | Height - Seated (Max) [Max] | Tolerance | DC Resistance (DCR) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Abracon LLC | -55 C | 125 °C | Carbonyl Powder | 12.5 A | 8.2 µH | Nonstandard | 0.433 in | 0.394 in | 10 mm | 11 mm | 8 A | 22.5 mOhm | 100 kHz | Shielded | Surface Mount | Molded | 4 mm | 0.157 in | 20 % | |
 Abracon LLC | -55 C | 125 °C | Carbonyl Powder | 60 A | 270 nH | Nonstandard | 0.433 in | 0.394 in | 10 mm | 11 mm | 33 A | 100 kHz | Shielded | Surface Mount | Molded | 4 mm | 0.157 in | 20 % | 1 mOhm |
