QD48T018033 Series

Catalog

DC DC CONVERTER 1.8V 3.3V 77W

Part	Voltage - Output 1	Voltage - Output 2	Number of Outputs	Power (Watts)	Voltage - Input (Min) [Min]	Voltage - Isolation	Mounting Type	Voltage - Input (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Applications	Control Features	Package / Case	Features	Current - Output (Max)	Current - Output (Max)	Efficiency	Type	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension

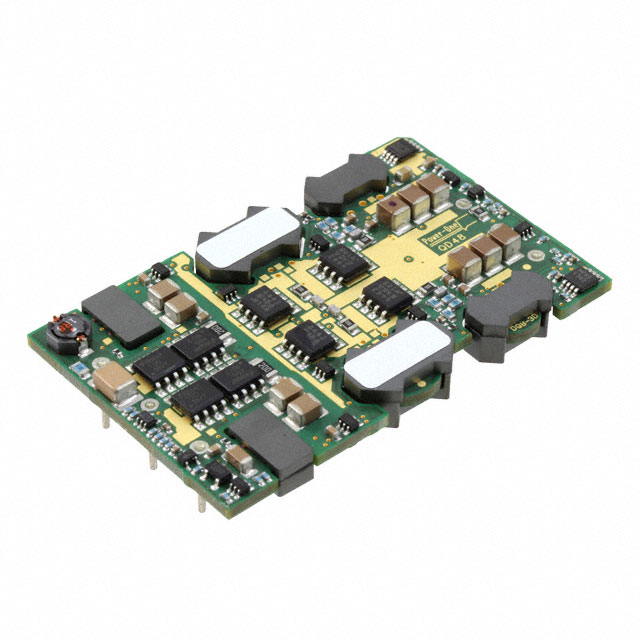

Bel Fuse Inc. QD48T018033-NBA0	1.8 V	3.3 V	2	77 W	36 V	2000 V	Through Hole	75 V	85 °C	-40 C	58.4 mm	36.8 mm	2.3 in	1.45 in	6.6 mm	0.26 in	ITE (Commercial)	Active Low Enable	7-DIP Module 1/4 Brick	OTP OVP Remote On/Off UVLO	15 A	15 A	87 %	Isolated Module
Bel Fuse Inc. QD48T018033-PAA0G	1.8 V	3.3 V	2	77 W	36 V	2000 V	Through Hole	75 V	85 °C	-40 C	58.4 mm		2.3 in	1.45 in		0.3 in	ITE (Commercial)	Active High Enable	7-DIP Module 1/4 Brick	OCP OTP OVP Remote On/Off SCP UVLO	15 A	15 A	87 %	Isolated Module	36.8 mm	7.7 mm
Bel Fuse Inc. QD48T018033-NDB0G	1.8 V	3.3 V	2	77 W	36 V	2000 V	Through Hole	75 V	85 °C	-40 C	58.4 mm		2.3 in	1.45 in		0.4 "	ITE (Commercial)	Active Low Enable	7-DIP Module 1/4 Brick	OCP OTP OVP Remote On/Off SCP UVLO	15 A	15 A	87 %	Isolated Module	36.8 mm	10.2 mm
Bel Fuse Inc. QD48T018033-NBB0	1.8 V	3.3 V	2	49 W	36 V	2000 V	Through Hole	75 V	85 °C	-40 C			2.3 in	1.45 in		0.34 in	ITE (Commercial)		7-DIP Module 1/4 Brick		15 A	15 A	87.5 %	Isolated Module			8.6 mm 36.8 mm 58.4 mm
Bel Fuse Inc. QD48T018033-NBB0G	1.8 V	3.3 V	2	77 W	36 V	2000 V	Through Hole	75 V	85 °C	-40 C	58.4 mm		2.3 in	1.45 in		0.34 in	ITE (Commercial)	Active Low Enable	7-DIP Module 1/4 Brick	OCP OTP OVP Remote On/Off SCP UVLO	15 A	15 A	87 %	Isolated Module	36.8 mm	8.5 mm
