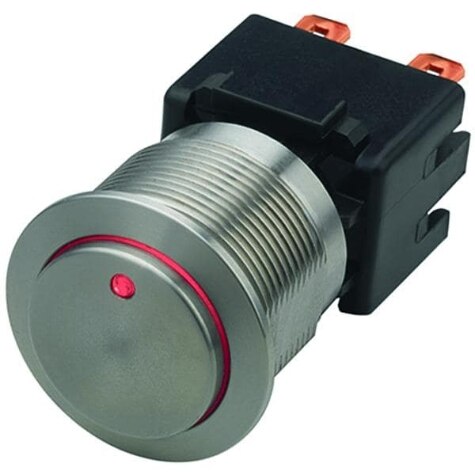

Pushbutton Switches MSM22 LA PI SF 12A @250VAC 2P BL
Pushbutton Switches MSM22 LA PI SF 12A @250VAC 2P BL
| Part | Mechanical Life | Electrical Life | Illumination Type, Color | Voltage Rating - AC | Ingress Protection | Circuit | Illumination Voltage (Nominal) | Actuator Type | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | Panel Cutout Dimensions [diameter] | Mounting Type | Actuator Marking | Switch Function | Voltage Rating - DC | Type | Color - Actuator/Cap |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHURTER Inc. | 100000 Cycles | 50000 Cycles | Blue LED | 250 V | IP64 - Dust Tight Water Resistant | DPST | 3.7 VDC | Button Round | Quick Connect | 85 °C | -20 ░C | 12 A | 22.1 mm | Panel Mount Front | No Marking | Off-On | 30 V | Anti-Vandal Illuminated | Silver |
