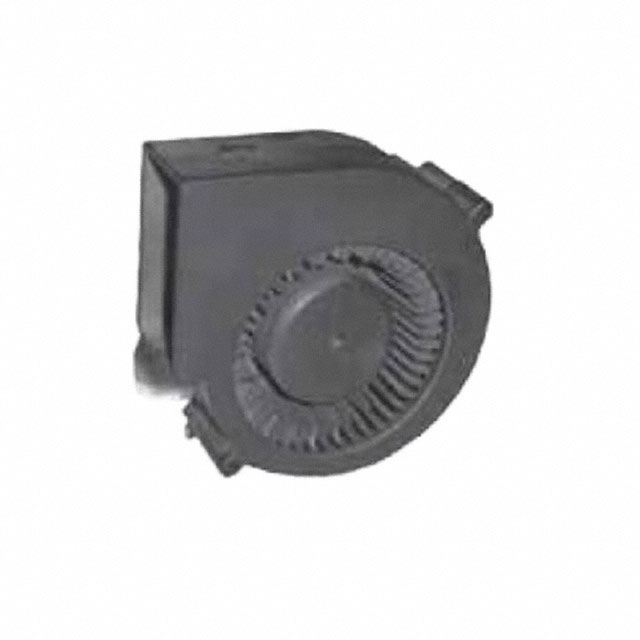

ODB9733 Series
Manufacturer: ORION FANS
Beta
⌘K
DC BLOWER - 12V 97 X 94 X 33MM
| Part | Voltage Range [Min] | Voltage Range [Max] | Material - Blade | Current Rating (Amps) | Width | Fan Type | Bearing Type | Size / Dimension [x] | Size / Dimension | Size / Dimension [z] | Power (Watts) | Static Pressure | Static Pressure | Voltage - Rated | RPM | Noise | Air Flow | Air Flow | Operating Temperature [Max] | Operating Temperature [Min] | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ORION FANS | 10.8 VDC | 13.2 VDC | Polybutylene Terephthalate (PBT) | 780 mA | 33 mm | Blower | Ball | 96 mm | Square/Rounded | 96 mm | 9.4 W | 274 Pa | 1.1 in H2O | 12 VDC | 4000 RPM | 56 dB | 0.924 mł/min | 33 CFM | 70 °C | -10 °C | 2 Wire Leads |
ORION FANS | 21.6 VDC | 26.4 VDC | Polybutylene Terephthalate (PBT) | 0.35 A | 33 mm | Blower | Ball | 96 mm | Square/Rounded | 96 mm | 8.4 W | 274 Pa | 1.1 in H2O | 24 VDC | 4000 RPM | 56 dB | 0.924 mł/min | 33 CFM | 70 °C | -10 °C | 2 Wire Leads |
