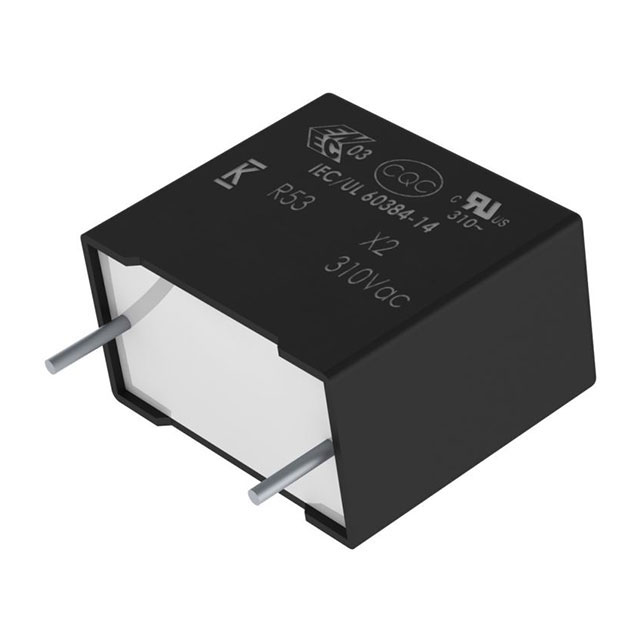

R533W Series

Manufacturer: KEMET

Catalog

SAFETY CAPACITOR, METALLIZED PP, RADIAL BOX - 2 PIN, 22 ΜF, ± 10%, X2, THROUGH HOLE

Part	Voltage Rating - AC	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Ratings	Capacitance	Dielectric Material	Termination	Tolerance	Operating Temperature [Min]	Operating Temperature [Max]	Lead Spacing	Lead Spacing	Package / Case	Height - Seated (Max)	Height - Seated (Max)	Mounting Type	Applications	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
KEMET R533W522050P0K	310 V	1.181 in	30 mm	42 mm	1.654 in	AEC-Q200 X2	22 µF	Polypropylene (PP) Metallized	PC Pins	10 %	-40 C	110 °C	37.5 mm	1.476 in	Radial	1.783 in	45.3 mm	Through Hole	Automotive EMI RFI Suppression
KEMET R533W520050P0K	310 V	1.181 in	30 mm	42 mm	1.654 in	AEC-Q200 X2	20 µF	Polypropylene (PP) Metallized	PC Pins	10 %	-40 C	110 °C	37.5 mm	1.476 in	Radial	1.783 in	45.3 mm	Through Hole	Automotive EMI RFI Suppression
KEMET R533W510050P0K	310 V	0.787 in	20 mm	42 mm	1.654 in	AEC-Q200 X2	10 µF	Polypropylene (PP) Metallized	PC Pins	10 %	-40 C	110 °C	37.5 mm	1.476 in	Radial			Through Hole	Automotive EMI RFI Suppression	40.3 mm	1.587 in
KEMET R533W515050P0K	310 V	0.945 "	24 mm	42 mm	1.654 in	AEC-Q200 X2	15 µF	Polypropylene (PP) Metallized	PC Pins	10 %	-40 C	110 °C	37.5 mm	1.476 in	Radial			Through Hole	Automotive EMI RFI Suppression			1.744 in	44.3 mm
KEMET R533W512050P0K	310 V	0.945 "	24 mm	42 mm	1.654 in	AEC-Q200 X2	12 µF	Polypropylene (PP) Metallized	PC Pins	10 %	-40 C	110 °C	37.5 mm	1.476 in	Radial			Through Hole	Automotive EMI RFI Suppression			1.744 in	44.3 mm
KEMET R533W518050P0K	310 V	1.181 in	30 mm	42 mm	1.654 in	AEC-Q200 X2	18 µF	Polypropylene (PP) Metallized	PC Pins	10 %	-40 C	110 °C	37.5 mm	1.476 in	Radial	1.783 in	45.3 mm	Through Hole	Automotive EMI RFI Suppression
