TMA-4MS Series
Manufacturer: Amphenol CDI
Beta
⌘K

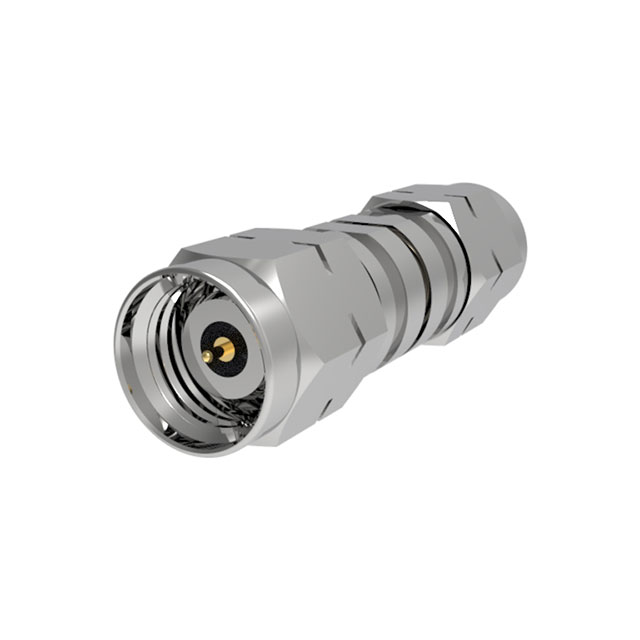

MW ADAPTER 2.4(M) TO 2.4(M)
| Part | Adapter Type | Convert From (Adapter End) | Convert From (Adapter End) | Frequency - Max [Max] | Center Gender | Style | Impedance | Convert To (Adapter End) [custom] | Adapter Series [Max] | Adapter Series [Min] | Conversion Type | Mounting Type | Convert To (Adapter End) | Body Material | Convert To (Adapter End) | Center Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol CDI | Plug to Plug | APC-2.4 Male Pin OS-50 Plug | 2.4 mm | 50 GHz | Male to Male | Straight | 50 Ohms | 2.4 mm | 2.4 mm | 2.4 mm | Same Series | Free Hanging (In-Line) | ||||
 Amphenol CDI | Plug to Plug | APC-2.4 Male Pin OS-50 Plug | 2.4 mm | 40 GHz | Male to Male | Straight | 50 Ohms | 2.92 mm | 2.4 mm | Between Series | Free Hanging (In-Line) | 2.92mm (OS-2.9) Plug Male Pin | ||||
 Amphenol CDI | Plug to Jack | APC-2.4 Male Pin OS-50 Plug | 2.4 mm | 40 GHz | Straight | 50 Ohms | 2.92 mm | 2.4 mm | Between Series | Free Hanging (In-Line) | Jack Female Socket | Stainless Steel | 2.92 mm | Beryllium Copper | ||
 Amphenol CDI | Plug to Jack | APC-2.4 Male Pin OS-50 Plug | 2.4 mm | 26.5 GHz | Straight | 50 Ohms | 3.5 mm | 2.4 mm | Between Series | Free Hanging (In-Line) | 3.5mm Jack Female Socket | |||||
Amphenol CDI | Plug to Jack | APC-2.4 Male Pin OS-50 Plug | 2.4 mm | 40 GHz | Straight | 50 Ohms | 2.92 mm | 2.4 mm | Between Series | Free Hanging (In-Line) | Jack Female Socket | 2.92 mm | ||||
Amphenol CDI | Plug to Plug | APC-2.4 Male Pin OS-50 Plug | 2.4 mm | 40 GHz | Male to Male | Straight | 50 Ohms | 2.92 mm | 2.4 mm | Between Series | Free Hanging (In-Line) | 2.92mm (OS-2.9) Plug Male Pin | Stainless Steel | Beryllium Copper | ||
Amphenol CDI | Plug to Jack | APC-2.4 Male Pin OS-50 Plug | 2.4 mm | 50 GHz | Straight | 50 Ohms | 2.4 mm | 2.4 mm | Same Series | Free Hanging (In-Line) | (APC-2.4 OS-50) Jack Female Socket | Stainless Steel | 2.4 mm | Beryllium Copper | ||
Amphenol CDI | Plug to Plug | APC-2.4 Male Pin OS-50 Plug | 2.4 mm | 26.5 GHz | Male to Male | Straight | 50 Ohms | 3.5 mm | 2.4 mm | Between Series | Free Hanging (In-Line) | 3.5mm Plug Male Pin | Stainless Steel | Beryllium Copper | ||
Amphenol CDI | Plug to Jack | APC-2.4 Male Pin OS-50 Plug | 2.4 mm | 26.5 GHz | Straight | 50 Ohms | 3.5 mm | 2.4 mm | Between Series | Free Hanging (In-Line) | 3.5mm Jack Female Socket | Stainless Steel | Beryllium Copper | |||
Amphenol CDI | Plug to Plug | APC-2.4 Male Pin OS-50 Plug | 2.4 mm | 26.5 GHz | Male to Male | Straight | 50 Ohms | 3.5 mm | 2.4 mm | Between Series | Free Hanging (In-Line) | 3.5mm Plug Male Pin |
