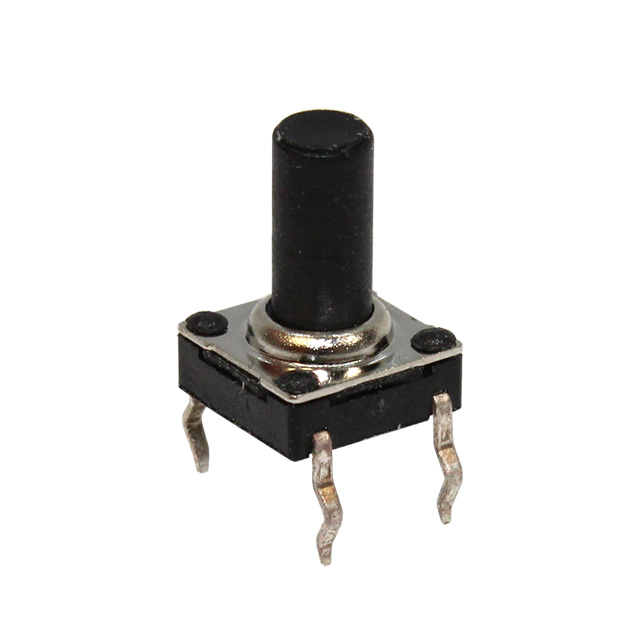

ST10.0L Series

Catalog

SWITCH TACTILE SPST-NO 0.05A 48V

Part	Switch Travel	Actuator Material	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Mounting Type	Switch Function	Circuit	Termination Style	Operating Force	Actuator Orientation	Contact Rating @ Voltage	Outline [y]	Outline [x]	Actuator Height off PCB, Vertical [z]	Illumination
CIT Relay and Switch ST10.0LF520Q	0.45 mm	Polybutylene Terephthalate (PBT)	85 °C	-40 C	Standard	Through Hole	Off-Mom	SPST-NO	PC Pin	520 gf	Top Actuated	0.05 A 48 VDC	7.2 mm	7.2 mm	10 mm	Non-Illuminated
CIT Relay and Switch ST10.0LF100Q	0.45 mm	Polybutylene Terephthalate (PBT)	85 °C	-40 C	Standard	Through Hole	Off-Mom	SPST-NO	PC Pin	100 gf	Top Actuated	0.05 A 48 VDC	7.2 mm	7.2 mm	10 mm	Non-Illuminated
CIT Relay and Switch ST10.0LF260Q	0.45 mm	Polybutylene Terephthalate (PBT)	85 °C	-40 C	Standard	Through Hole	Off-Mom	SPST-NO	PC Pin	260 gf	Top Actuated	0.05 A 48 VDC	7.2 mm	7.2 mm	10 mm	Non-Illuminated
