CR-A Series
Manufacturer: Bourns Inc.
Beta
⌘K

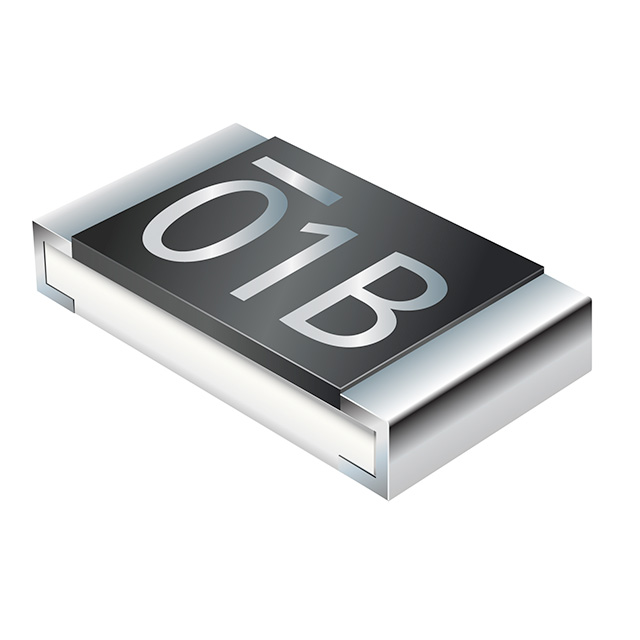

THICK FILM RESISTORS - SMD RESA 1206 200K 1% 250MW TC100
| Part | Ratings | Power (Watts) | Power (Watts) | Temperature Coefficient | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Number of Terminations [custom] | Supplier Device Package | Operating Temperature [Max] | Operating Temperature [Min] | Composition | Tolerance | Package / Case | Resistance | Features | Package / Case | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | AEC-Q200 | 0.25 W | 0.25 W | 100 ppm/°C | 3.1 mm | 0.061 in | 1.55 mm | 0.122 " | 0.026 in | 0.65 mm | 2 | 1206 | 155 C | -55 C | Thick Film | 1 % | 1206 (3216 Metric) | 200000 Ohms | Automotive AEC-Q200 | |||
Bourns Inc. | AEC-Q200 | 50 mW | 0.05 W | 200 ppm/°C | 0.024 in | 0.3 mm | 0.012 in | 0.6 mm | 2 | 0201 | 125 °C | -55 C | Thick Film | 1 % | 0201 | 100 Ohms | Automotive AEC-Q200 | 0603 Metric | 0.01 in | 0.26 mm | ||
Bourns Inc. | AEC-Q200 | 0.063 W | 0.0625 W | 100 ppm/°C | 1 mm | 0.02 in | 0.5 mm | 0.039 " | 0.015 " | 0.37 mm | 2 | 0402 | 155 C | -55 C | Thick Film | 1 % | 0402 (1005 Metric) | 1000 Ohms | Automotive AEC-Q200 |
