SMKDSNF Series
Manufacturer: Phoenix Contact
Beta
⌘K

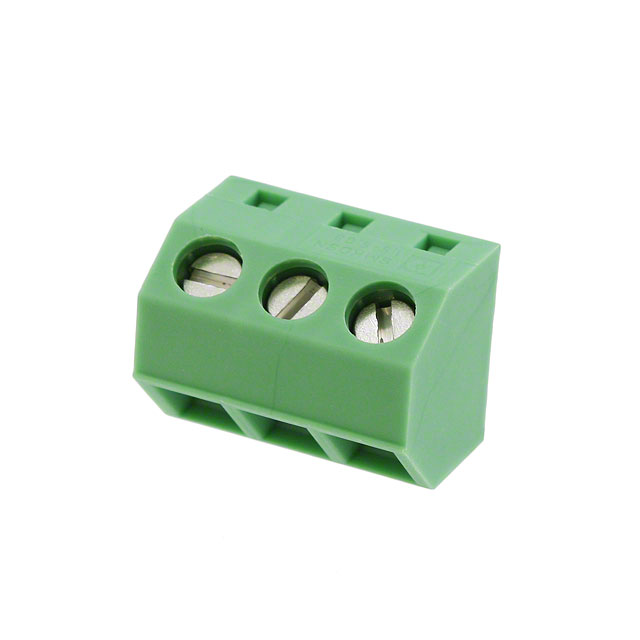

FIXED TERMINAL BLOCKS 3P 5.08MM PCB BLK SCREW CONNECTION
| Part | Screw Thread | Housing Material | Torque - Screw [Max] | Torque - Screw [Min] | Torque - Screw [Min] | Torque - Screw [Max] | Positions Per Level | Number of Levels | Color | Wire Gauge [Max] | Wire Gauge [Min] | Mating Orientation | Mating Orientation | Pitch | Pitch | Voltage | Mounting Type | Wire Termination | Current |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Phoenix Contact | M3 | Polyamide (PA) Nylon | 0.6 Nm | 4.4 Lb-In | 0.5 Nm | 5.3 Lb-In | 3 | 1 | Green | 30 AWG | 14 AWG | 55 ° | 125 ° | 5.08 mm | 0.2 in | 300 VDC | Through Hole | Screw - Rising Cage Clamp | 10 A |
