TP Series

Manufacturer: Panasonic Electronic Components

Catalog

ALUMINUM ELECTROLYTIC CAPACITORS - RADIAL LEADED 820UF 25VOLTS AEC-Q200

Part	Lifetime @ Temp.	Mounting Type	Applications	Voltage - Rated	Tolerance	Ratings	Package / Case	Ripple Current @ Low Frequency	Operating Temperature [Min]	Operating Temperature [Max]	Ripple Current @ High Frequency	Height - Seated (Max) [Max] [custom]	Height - Seated (Max) [Max] [custom]	Size / Dimension [diameter]	Size / Dimension [diameter]	Polarization	Capacitance	Lead Spacing	Lead Spacing	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	ESR (Equivalent Series Resistance)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Panasonic Electronic Components EEU-TP1E821	3000 Hrs	Through Hole	Automotive	25 VDC	20 %	AEC-Q200	Can Radial	1.155 A	-40 C	135 °C	1.1 A	0.866 in	22 mm	0.394 in	10 mm	Polar	820 µF	0.197 "	5 mm
Panasonic Electronic Components EEE-TP1V182V	3000 Hrs	Surface Mount	Automotive High Temperature Reflow	35 V	20 %	AEC-Q200	Radial Can - SMD	1.95 A	-55 C	125 °C	2.6 A			0.709 in	18 mm	Polar	1800 µF			0.748 in	0.748 in	19 mm	19 mm	0.669 "	17 mm	45 mOhm
Panasonic Electronic Components EEE-TP1K391M	3000 Hrs	Surface Mount	Automotive High Temperature Reflow	80 V	20 %	AEC-Q200	Radial Can - SMD	1.425 A	-55 C	125 °C				0.63 in	16 mm	Polar	390 µF			0.669 in	0.669 in	17 mm	17 mm	0.669 "	17 mm	100 mOhm

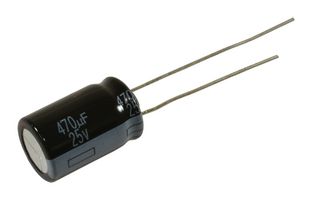

Panasonic Electronic Components EEU-TP1E471	3000 Hrs	Through Hole	Automotive	25 VDC	20 %	AEC-Q200	Can Radial	825 mA	-40 C	135 °C	945 mA			0.394 in	10 mm	Polar	470 µF	0.197 "	5 mm								17.5 mm	0.689 in
Panasonic Electronic Components EEU-TP1V221B	3000 Hrs	Through Hole	Automotive	35 V	20 %	AEC-Q200	Can Radial	715 mA	-40 C	135 °C	945 mA			0.394 in	10 mm	Polar	220 µF	0.197 "	5 mm								17.5 mm	0.689 in
Panasonic Electronic Components EEU-TP1E471B	3000 Hrs	Through Hole	Automotive	25 VDC	20 %	AEC-Q200	Can Radial	825 mA	-40 C	135 °C	945 mA			0.394 in	10 mm	Polar	470 µF	0.197 "	5 mm								17.5 mm	0.689 in
Panasonic Electronic Components EEU-TP1E202SB	5000 Hrs	Through Hole	Automotive	25 VDC	20 %	AEC-Q200	Can Radial	1.904 A	-40 C	135 °C	1.985 A	0.866 in	22 mm	0.63 in	16 mm	Polar	2 mF	0.295 in	7.5 mm
Panasonic Electronic Components EEU-TP1E202S	5000 Hrs	Through Hole	Automotive	25 VDC	20 %	AEC-Q200	Can Radial	1.904 A	-40 C	135 °C	1.985 A	0.866 in	22 mm	0.63 in	16 mm	Polar	2 mF	0.295 in	7.5 mm
