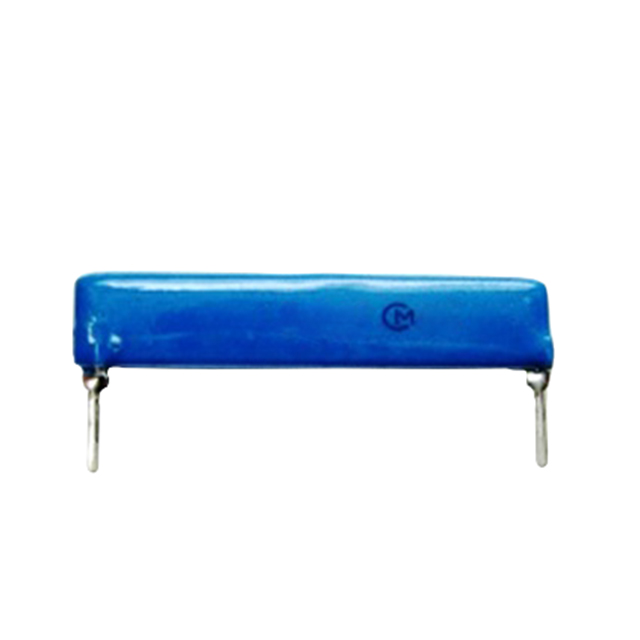

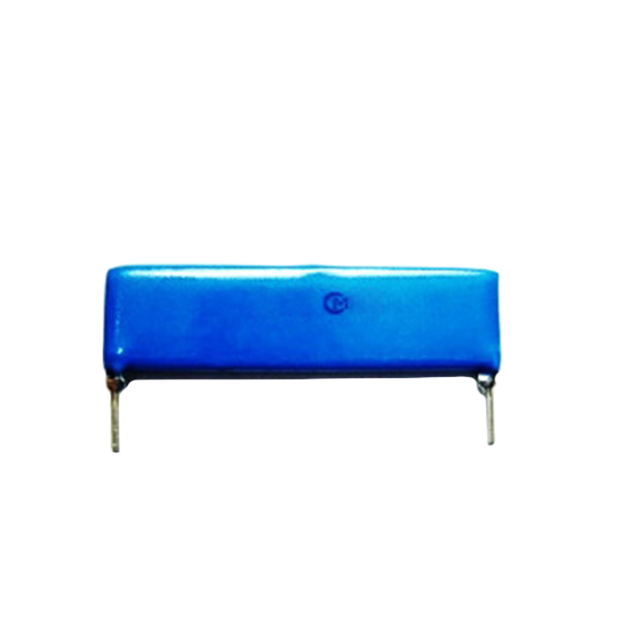

MHR0317SA Series

Thick Film Resistors - Through Hole

Manufacturer: Murata Power Solutions Inc.

Catalog

Thick Film Resistors - Through Hole

Catalog

Thick Film Resistors - Through Hole

Part	Package / Case	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Features	Tolerance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Composition	Power (Watts)	Resistance	Number of Terminations	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [x]	Size / Dimension [y]
Murata Power Solutions Inc. MHR0317SA107F70	Radial	0.693 "	0.098 "	2.5 mm	17.6 mm	High Voltage	1 %	0.197 in	5 mm	Thick Film	0.8 W	100 MOhms	2	125 °C	-40 °C
Murata Power Solutions Inc. MHR0844SA108G70	Radial			2.5 mm	46 mm	High Voltage	2 %			Thick Film	2.5 W	1 GOhms	2	125 °C	-40 °C	0.394 in	10 mm	1.811 "	0.098 in

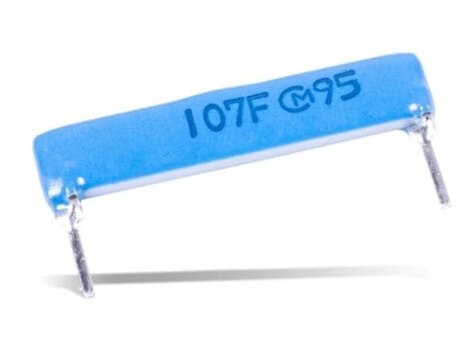

Murata Power Solutions Inc. MHR0317SA507F70	Radial	0.693 "	0.098 "	2.5 mm	17.6 mm	High Voltage	1 %	0.197 in	5 mm	Thick Film	0.8 W	500 MOhms	2	125 °C	-40 °C
Murata Power Solutions Inc. MHR0424SA506F70	Radial			2.5 mm	25.3 mm	High Voltage	1 %	0.256 in	6.5 mm	Thick Film	1.4 W	50 MOhms	2	125 °C	-40 °C			0.996 in	0.098 in
Murata Power Solutions Inc. MHR0317SA106F70	Radial	0.693 "	0.098 "	2.5 mm	17.6 mm	High Voltage	1 %	0.197 in	5 mm	Thick Film	0.8 W	10 MOhms	2	125 °C	-40 °C
Murata Power Solutions Inc. MHR0844SA107F70	Radial			2.5 mm	46 mm	High Voltage	1 %			Thick Film	2.5 W	100 MOhms	2	125 °C	-40 °C	0.394 in	10 mm	1.811 "	0.098 in
Murata Power Solutions Inc. MHR0624SA507F70	Radial			2.5 mm	25.3 mm	High Voltage	1 %			Thick Film	1.6 W	500 MOhms	2	125 °C	-40 °C	0.354 in	9 mm	0.996 in	0.098 in
Murata Power Solutions Inc. MHR0422SA506F70	Radial			2.5 mm	22.7 mm	High Voltage	1 %	0.256 in	6.5 mm	Thick Film	1.3 W	50 MOhms	2	125 °C	-40 °C			0.894 in	0.098 in
Murata Power Solutions Inc. MHR0844SA506F70	Radial			2.5 mm	46 mm	High Voltage	1 %			Thick Film	2.5 W	50 MOhms	2	125 °C	-40 °C	0.394 in	10 mm	1.811 "	0.098 in
Murata Power Solutions Inc. MHR0624SA506F70	Radial			2.5 mm	25.3 mm	High Voltage	1 %			Thick Film	1.6 W	50 MOhms	2	125 °C	-40 °C	0.354 in	9 mm	0.996 in	0.098 in
