HLW26S Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

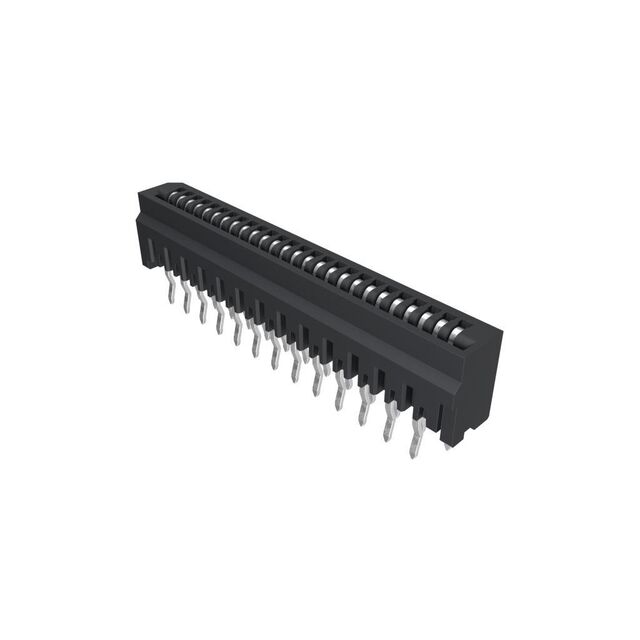

CONN FFC FPC VERT 26POS 1MM PCB
| Part | Housing Color | Mating Cycles | Housing Material | Contact Material | Mounting Type | Number of Positions | Contact Finish | Pitch | Pitch | FFC, FCB Thickness | Flat Flex Type | Operating Temperature [Min] | Operating Temperature [Max] | Connector/Contact Type | Material Flammability Rating | Height Above Board [z] | Height Above Board [z] | Voltage Rating | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (FCI) | Black | 30 | Polybutylene Terephthalate (PBT) Glass Filled | Phosphor Bronze | Through Hole | 26 | Tin | 1 mm | 0.039 in | 0.33 mm | FFC FPC | -55 C | 85 °C | Contacts Vertical - 1 Sided | UL94 V-0 | 5.9 mm | 0.232 " | 100 V | Kinked Pin |
