FOD3125 Series

High Temperature, 2.5 A Output Current, Gate Drive Optocoupler

Catalog

High Temperature, 2.5 A Output Current, Gate Drive Optocoupler

Part	Current - Peak Output	Voltage - Output Supply [Min]	Voltage - Output Supply [Max]	Propagation Delay tpLH / tpHL (Max) [Max] [y]	Propagation Delay tpLH / tpHL (Max) [Max] [x]	Current - Output High, Low [custom]	Current - Output High, Low [custom]	Supplier Device Package	Approval Agency	Current - DC Forward (If) (Max) [Max]	Mounting Type	Pulse Width Distortion (Max) [Max]	Number of Channels	Operating Temperature [Max]	Operating Temperature [Min]	Common Mode Transient Immunity (Min) [Min]	Package / Case	Package / Case	Package / Case	Voltage - Forward (Vf) (Typ)	Technology	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]

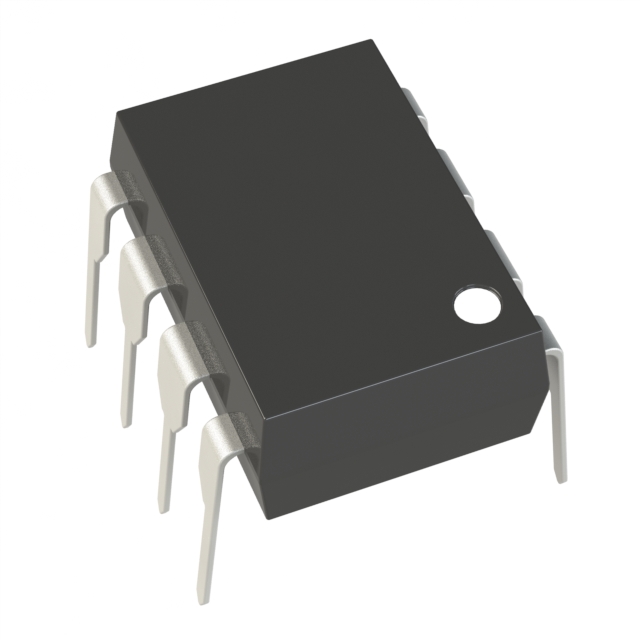

ON Semiconductor FOD3125	3 A	15 V	30 V	400 ns	400 ns	2 A	2 A	8-PDIP	UL	25 mA	Through Hole	100 ns	1	125 °C	-40 °C	35 kV/µs	0.3 in	8-DIP	7.62 mm	1.5 V	Optical Coupling	60 ns	60 ns
ON Semiconductor FOD3125SD	3 A	15 V	30 V	400 ns	400 ns	2 A	2 A	8-SMD	UL	25 mA	Surface Mount	100 ns	1	125 °C	-40 °C	35 kV/µs				1.5 V	Optical Coupling	60 ns	60 ns

Catalog

High Temperature, 2.5 A Output Current, Gate Drive Optocoupler

Key Features

• Extended Industrial Temperate Range, -40°C to 125°C

• High Noise Immunity Characterized by 35kV/µs Minimum Common Mode Rejection

• 2.5 A Peak Output Current Driving Capability for Most 1200 V/20 A IGBT

• Use of P-channel MOSFETs at Output Stage Enables Output Voltage Swing Close to The Supply Rail

• Fast switching speed

• Wide Supply Voltage Range from 15 V to 30 V

• Fast Switching Speed– 400 ns max. Propagation Delay– 100 ns max. Pulse Width Distortion

• Under-Voltage LockOut (UVLO) with hysteresis

• Safety and Regulatory (Pending for Approval)– UL1577, 5000 VACRMS for 1 min.– DIN EN/IEC60747-5-5, 1,414 V Peak Working Insulation Voltage (VIORM)

• RDS(ON) of 1 Ω (typ.) Offers Lower Power Dissipation

• > 8.0 mm Clearance and Creepage Distance (Option ‘T’ or ‘TS’)

Description

The FOD3125 is a 2.5 A Output Current Gate Drive Optocoupler, capable of driving most medium power IGBT/MOSFET at high temperature up to 125°C. It is ideally suited for fast switching driving of power IGBT and MOSFETs used in motor control inverter applications, and high performance power system.It utilizes ON Semiconductor’s coplanar packaging technology, Optoplanar®, and optimized IC design to achieve high noise immunity, characterized by high common mode rejection.It consists of a gallium aluminum arsenide (AlGaAs) light emitting diode optically coupled to an integrated circuit with a high-speed driver for push-pull MOSFET output stage.
