206523 Series

Mini50 Unsealed Receptacle, Single Row, UL94-HB, with CPA, 8 Circuits, Polarization Option C, Dark Gray

Manufacturer: Molex

Catalog

Mini50 Unsealed Receptacle, Single Row, UL94-HB, with CPA, 8 Circuits, Polarization Option C, Dark Gray

Part	Insulation Material	Color	Pitch [x]	Pitch [x]	Fastening Type	Features	Contact Termination	Number of Rows	Row Spacing	Row Spacing	Mounting Type	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Number of Positions	Number of Positions

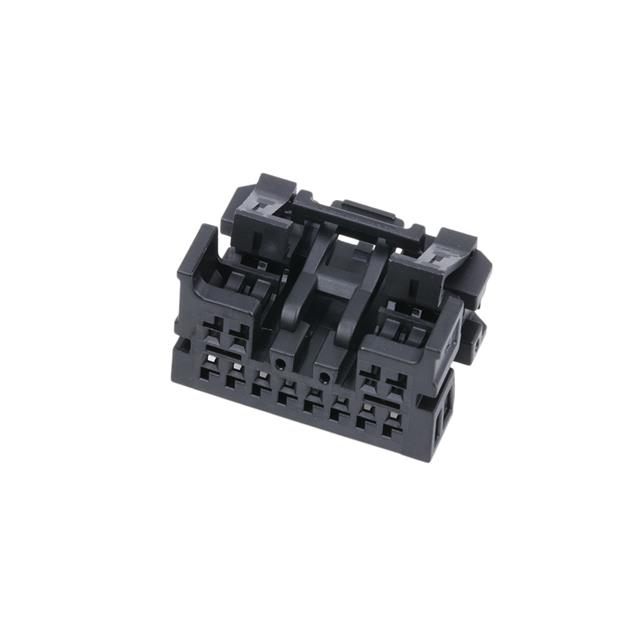

Molex 2065232121	Polyamide (PA6) Nylon 6 Glass Filled	Red	0.079 in	2 mm	Latch Lock	Connector Position Assurance (CPA)	Crimp	2	0.087 in	2.2 mm	Free Hanging (In-Line)	Female Socket	100 °C	-40 °C	Receptacle	12

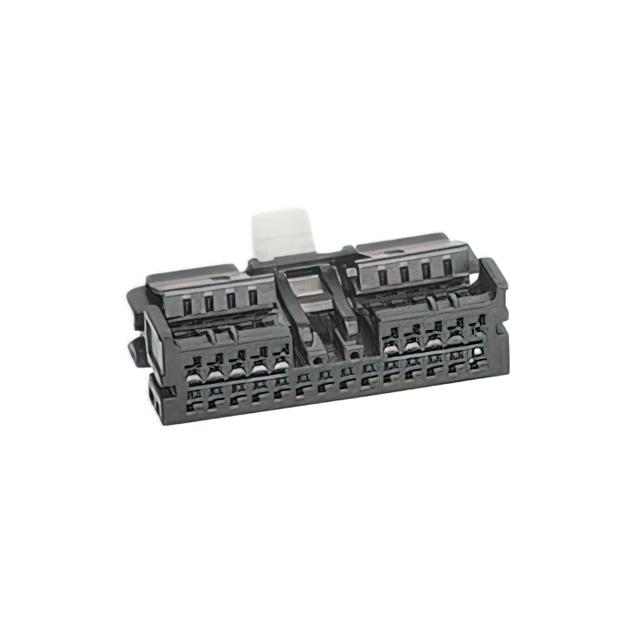

Molex 2065232241	Polybutylene Terephthalate (PBT) Glass Filled	Black	0.079 in	2 mm	Latch Lock	Connector Position Assurance (CPA)	Crimp	2	0.079 in	2 mm	Free Hanging (In-Line)	Female Socket	100 °C	-40 °C	Receptacle	24
Molex 2065232163	Polybutylene Terephthalate (PBT) Glass Filled	Gray	0.079 in	2 mm	Latch Lock	Connector Position Assurance (CPA)	Crimp	2	0.079 in	2 mm	Free Hanging (In-Line)	Female Socket	100 °C	-40 °C	Receptacle		16

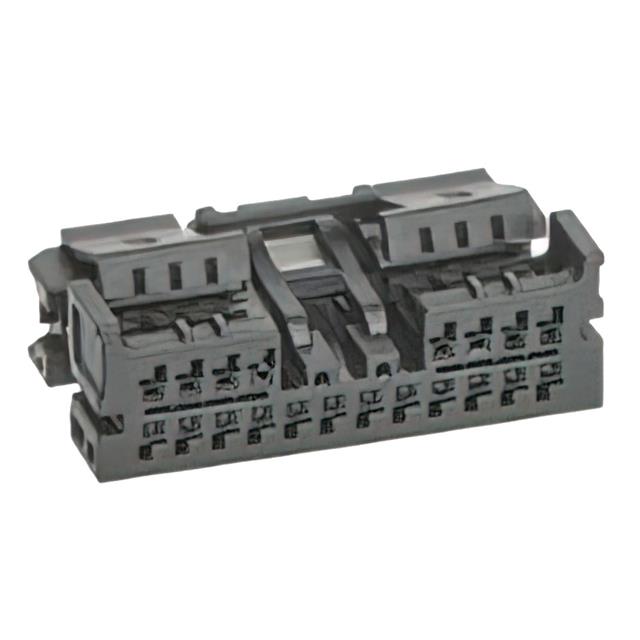

Molex 2065230202	Polybutylene Terephthalate (PBT)	Gray	0.079 in	2 mm	Latch Lock		Crimp	2	0.087 in	2.2 mm	Free Hanging (In-Line)	Female Socket	100 °C	-40 °C	Receptacle	20

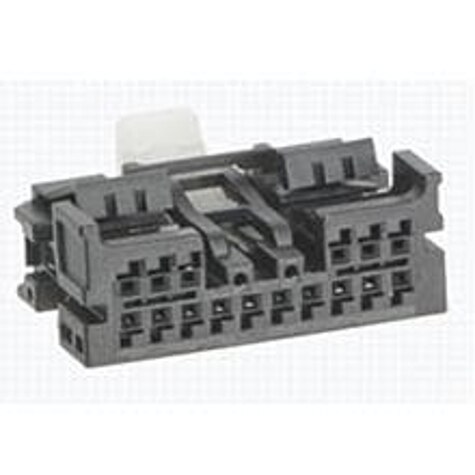

Molex 2065232161	Polybutylene Terephthalate (PBT) Glass Filled	Black	0.079 in	2 mm	Latch Lock	Connector Position Assurance (CPA)	Crimp	2	0.079 in	2 mm	Free Hanging (In-Line)	Female Socket	100 °C	-40 °C	Receptacle		16
Molex 2065232202	Polybutylene Terephthalate (PBT)	Gray	0.079 in	2 mm	Latch Lock		Crimp	2	0.087 in	2.2 mm	Free Hanging (In-Line)	Female Socket	100 °C	-40 °C	Receptacle	20

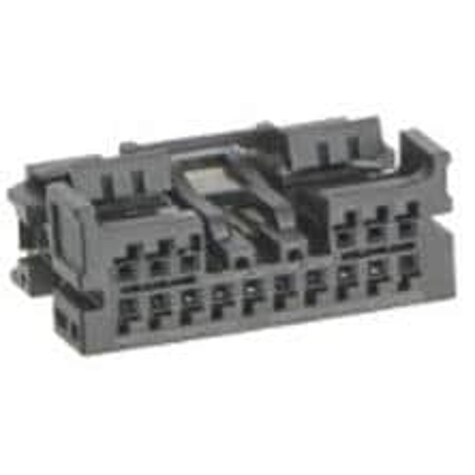

Molex 2065230163	Polybutylene Terephthalate (PBT) Glass Filled	Gray	0.079 in	2 mm	Latch Lock		Crimp	2	0.079 in	2 mm	Free Hanging (In-Line)	Female Socket	100 °C	-40 °C	Receptacle		16

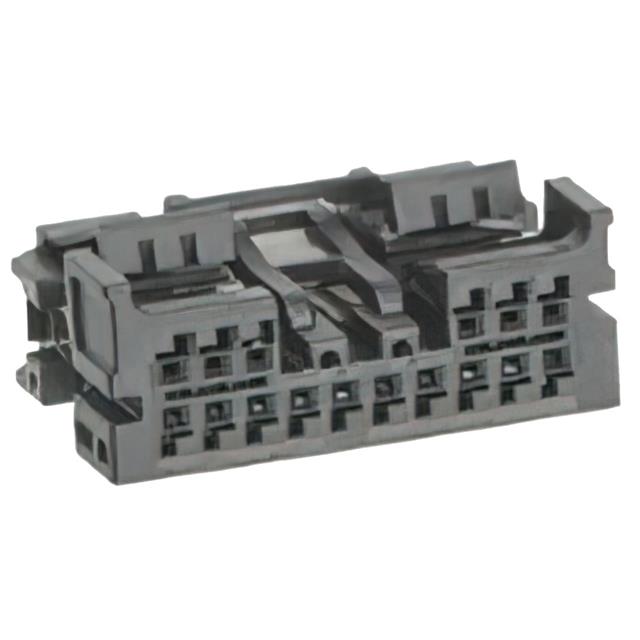

Molex 2065230162
Molex 2065230161	Polybutylene Terephthalate (PBT) Glass Filled	Black	0.079 in	2 mm	Latch Lock		Crimp	2	0.079 in	2 mm	Free Hanging (In-Line)	Female Socket	100 °C	-40 °C	Receptacle		16

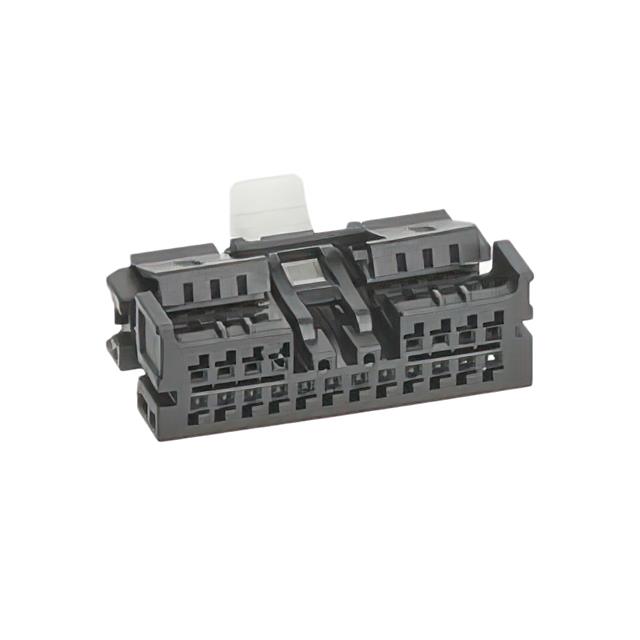

Molex 2065232201	Polybutylene Terephthalate (PBT) Glass Filled	Black	0.079 in	2 mm	Latch Lock	Connector Position Assurance (CPA)	Crimp	2	0.079 in	2 mm	Free Hanging (In-Line)	Female Socket	100 °C	-40 °C	Receptacle	20
