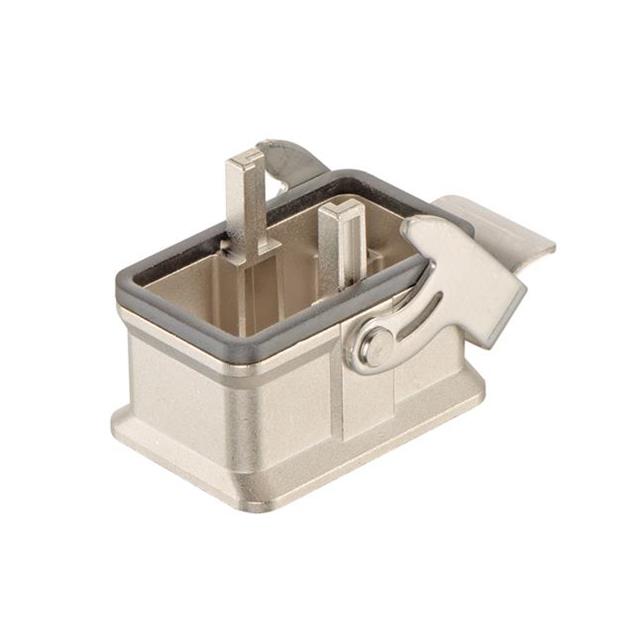

HEAVY DUTY CONNECTOR, BASE, BULKHEAD MOUNT, ZINC BODY, 1 LEVER, HAN-MODULAR COMPACT INSERTS & HOODS
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Lock Location | Housing Material | Style | Connector Type | Ingress Protection | Features | Housing Finish | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Housing Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 HARTING | 125 °C | -40 C | Locking Clip (1) on Base Bottom | Zinc Die Cast | Bottom Entry | Base - Panel Mount | IP65 - Dust Tight Water Resistant | Grounding Terminal | Nickel | 1.929 in | 49 mm | 1.059 " | 26.9 mm | 35 mm | 1.378 in | |
 HARTING | 85 °C | -40 C | Side Latch Lock on Hood | Polycarbonate (PC) | Top Entry | Hood | IP65 - Dust Tight Water Resistant | 2.362 in | 60 mm | 3.067 in | 77.9 mm | 21.8 mm | 0.858 in | Gray | ||
 HARTING | 85 °C | -40 C | Side Latch Lock on Hood | Polycarbonate (PC) | Top Entry | Hood | IP65 - Dust Tight Water Resistant | 2.362 in | 60 mm | 3.343 in | 84.9 mm | 21.8 mm | 0.858 in | Green | ||
 HARTING | 85 °C | -40 C | Side Latch Lock on Hood | Polycarbonate (PC) | Bottom Entry | Base - Panel Mount | IP65 - Dust Tight Water Resistant | 2.126 " | 54 mm | 1.453 in | 36.9 mm | 21.8 mm | 0.858 in | Gray | ||
 HARTING | 85 °C | -40 C | Side Latch Lock on Hood | Polycarbonate (PC) | Bottom Entry Top or Bottom Entry | Hood - Coupling | IP65 - Dust Tight Water Resistant | Cable to Cable | 2.217 " | 56.3 mm | 2.642 " | 67.1 mm | 24.4 mm | 0.961 " | Gray | |
 HARTING | 85 °C | -40 C | Side Latch Lock on Hood | Polycarbonate (PC) | Top Entry | Hood | IP20 | 2.362 in | 60 mm | 3.106 in | 78.9 mm | 21.8 mm | 0.858 in | Gray | ||
 HARTING | 85 °C | -40 C | Side Latch Lock on Hood | Polycarbonate (PC) | Top Entry | Hood | IP65 - Dust Tight Water Resistant | 2.362 in | 60 mm | 3.067 in | 77.9 mm | 21.8 mm | 0.858 in | Gray | ||
 HARTING | 85 °C | -40 C | Side Latch Lock on Hood | Polycarbonate (PC) | Top Entry | Hood | IP20 | 2.362 in | 60 mm | 3.106 in | 78.9 mm | 21.8 mm | 0.858 in | Gray | ||
 HARTING | 85 °C | -40 C | Side Latch Lock on Hood | Polycarbonate (PC) | Bottom Entry | Base - Panel Mount | IP65 - Dust Tight Water Resistant | 2.126 " | 54 mm | 1.453 in | 36.9 mm | 21.8 mm | 0.858 in | Green | ||
 HARTING | 85 °C | -40 C | Side Latch Lock on Hood | Polycarbonate (PC) | Bottom Entry | Base - Panel Mount | IP65 - Dust Tight Water Resistant | 2.126 " | 54 mm | 1.453 in | 36.9 mm | 21.8 mm | 0.858 in | Gray |
