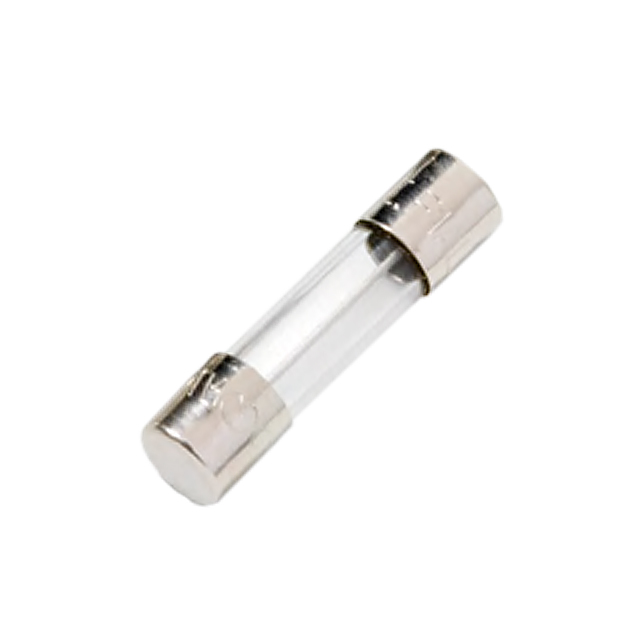

FUSE 5x20 F LBC 0.6A/250V (P)
Description
AI
5x20mm medium- acting glass body fuse designed to UL specification.
Beta
⌘K
FUSE 5x20 F LBC 0.6A/250V (P)
FUSE 5x20 F LBC 0.6A/250V (P)
| Part | Size / Dimension [x] | Size / Dimension [diameter] | Size / Dimension [x] | Size / Dimension [diameter] | Voltage Rating - AC | Current Rating (Amps) | Response Time | Operating Temperature [Min] | Operating Temperature [Max] | Breaking Capacity @ Rated Voltage | Fuse Type | Package / Case [x] | Package / Case [y] | Melting I²t | Mounting Type | Approval Agency | DC Cold Resistance | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LITTELFUSE | 20 mm | 0.205 in | 0.787 " | 5.2 mm | 250 V | 600 mA | Fast Blow | -55 C | 125 °C | 35 A | Cartridge Glass | 5 mm | 20 mm | 0.112 | Requires Holder | CE CSA KC UL | ||
 LITTELFUSE | 22.5 mm | 0.228 " | 0.886 in | 5.8 mm | 250 V | 600 mA | Fast Blow | -55 C | 125 °C | 35 A | Cartridge Glass | 5 mm | 20 mm | 0.112 | Through Hole | CE CSA KC UL | 0.3195 Ohms | Axial |
 LITTELFUSE | 20 mm | 0.205 in | 0.787 " | 5.2 mm | 250 V | 600 mA | Fast Blow | -55 C | 125 °C | 35 A | Cartridge Glass | 5 mm | 20 mm | 0.112 | Requires Holder | CE CSA KC UL | 0.3195 Ohms | |
 LITTELFUSE | 22.5 mm | 0.228 " | 0.886 in | 5.8 mm | 250 V | 600 mA | Fast Blow | -55 C | 125 °C | 35 A | Cartridge Glass | 5 mm | 20 mm | 0.112 | Through Hole | CE CSA KC UL | Axial | |
LITTELFUSE | 22.5 mm | 0.228 " | 0.886 in | 5.8 mm | 250 V | 600 mA | Fast Blow | -55 C | 125 °C | 35 A | Cartridge Glass | 5 mm | 20 mm | 0.112 | Through Hole | CE CSA K-Mark UL | 0.3195 Ohms | Axial |
