Isolated DC/DC Converters - Through Hole DC-DC Converter, 5 to 6 Watt, Wide Input Range, 9-36VDC Input, 3.3VDC Output
Isolated DC/DC Converters - Through Hole DC-DC Converter, 5 to 6 Watt, Wide Input Range, 9-36VDC Input, 3.3VDC Output
Isolated DC/DC Converters - Through Hole DC-DC Converter, 5 to 6 Watt, Wide Input Range, 9-36VDC Input, 3.3VDC Output
| Part | Mounting Type | Control Features | Power (Watts) | Standard Number | Voltage - Input (Min) [Min] | Voltage - Output 1 | Applications | Efficiency | Package / Case | Voltage - Isolation | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Type | Current - Output (Max) [Max] | Voltage - Input (Max) [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Approval Agency | Features | Number of Outputs | Current - Output (Max) | Voltage - Output 2 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

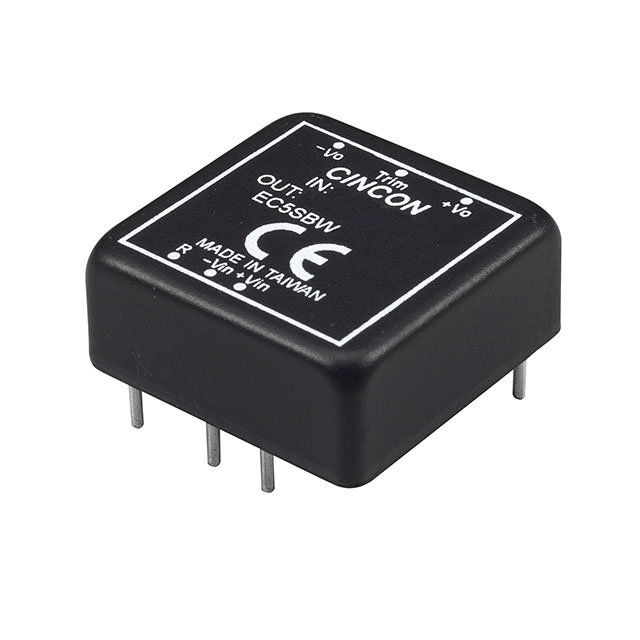

 Cincon Electronics Co. LTD | Through Hole | Active Low Enable | 30 Watts | 60950-1 | 18 V | 15 V | ITE (Commercial) | 89 % | 6-DIP Module | 1.5 kV | 1 " | 1 in | 25.4 mm | 10.2 mm | 0.4 " | 25.4 mm | Isolated Module | 2 A | 75 V | -40 °C | 85 °C | CE | OCP OTP OVP Remote On/Off SCP UVLO | 1 | ||
Cincon Electronics Co. LTD | Through Hole | Active Low Enable | 30 Watts | 60950-1 | 18 V | 12 V | ITE (Commercial) | 88 % | 6-DIP Module | 1.5 kV | 1 " | 1 in | 25.4 mm | 10.2 mm | 0.4 " | 25.4 mm | Isolated Module | 75 V | -40 °C | 85 °C | CE | OCP OTP OVP Remote On/Off SCP UVLO | 2 | 1.25 A | -12 V | |
Cincon Electronics Co. LTD | Through Hole | Active High Enable | 30 Watts | 60950-1 | 18 V | 5 V | ITE (Commercial) | 90 % | 6-DIP Module | 1.5 kV | 1 " | 1 in | 25.4 mm | 10.2 mm | 0.4 " | 25.4 mm | Isolated Module | 6 A | 75 V | -40 °C | 85 °C | CE | OCP OTP OVP Remote On/Off SCP UVLO | 1 | ||
Cincon Electronics Co. LTD | Through Hole | Active High Enable | 25 W | 60950-1 | 18 V | 3.3 V | ITE (Commercial) | 88 % | 6-DIP Module | 1.5 kV | 1 " | 1 in | 25.4 mm | 10.2 mm | 0.4 " | 25.4 mm | Isolated Module | 7.5 A | 75 V | -40 °C | 85 °C | CE | OCP OTP OVP Remote On/Off SCP UVLO | 1 | ||
Cincon Electronics Co. LTD | Through Hole | Active High Enable | 30 Watts | 60950-1 | 9 V | 15 V | ITE (Commercial) | 89 % | 6-DIP Module | 1.5 kV | 1 " | 1 in | 25.4 mm | 10.2 mm | 0.4 " | 25.4 mm | Isolated Module | 2 A | 36 V | -40 °C | 85 °C | CE | OCP OTP OVP Remote On/Off SCP UVLO | 1 | ||
Cincon Electronics Co. LTD | Through Hole | Active Low Enable | 25 W | 60950-1 | 18 V | 3.3 V | ITE (Commercial) | 88 % | 6-DIP Module | 1.5 kV | 1 " | 1 in | 25.4 mm | 10.2 mm | 0.4 " | 25.4 mm | Isolated Module | 7.5 A | 75 V | -40 °C | 85 °C | CE | OCP OTP OVP Remote On/Off SCP UVLO | 1 | ||
Cincon Electronics Co. LTD | Through Hole | Active Low Enable | 30 Watts | 60950-1 | 9 V | 12 V | ITE (Commercial) | 89 % | 6-DIP Module | 1.5 kV | 1 " | 1 in | 25.4 mm | 10.2 mm | 0.4 " | 25.4 mm | Isolated Module | 2.5 A | 36 V | -40 °C | 85 °C | CE | OCP OTP OVP Remote On/Off SCP UVLO | 1 | ||

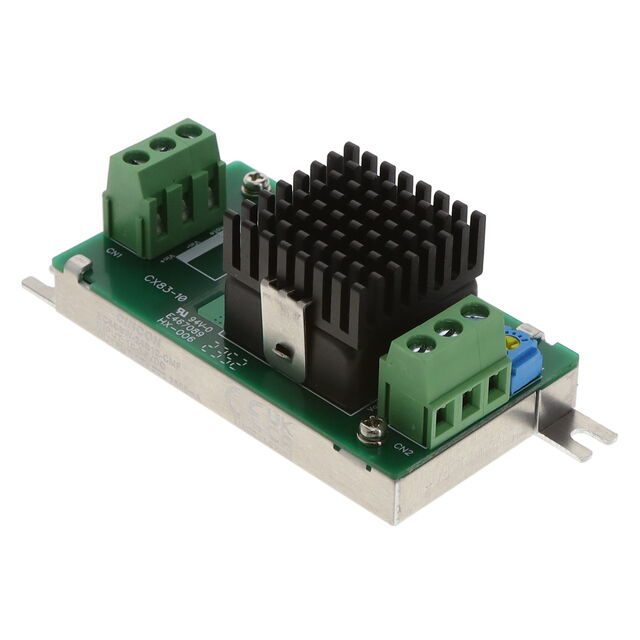

 Cincon Electronics Co. LTD | Chassis Mount | 30 Watts | 62368-1 | 10 VDC | 12 V | ITE (Commercial) | 88 % | 1.5 kV | 1.48 in | 3.31 " | 84.1 mm | 30.5 mm | 1.2 " | 37.6 mm | Open Frame | 2.5 A | 36 V | -40 °C | 85 °C | CE UKCA | 1 | |||||
Cincon Electronics Co. LTD | Through Hole | Active High Enable | 30 Watts | 60950-1 | 9 V | 12 V | ITE (Commercial) | 88 % | 6-DIP Module | 1.5 kV | 1 " | 1 in | 25.4 mm | 10.2 mm | 0.4 " | 25.4 mm | Isolated Module | 36 V | -40 °C | 85 °C | CE | OCP OTP OVP Remote On/Off SCP UVLO | 2 | 1.25 A | -12 V | |
Cincon Electronics Co. LTD | Through Hole | Active Low Enable | 30 Watts | 60950-1 | 9 V | 12 V | ITE (Commercial) | 88 % | 6-DIP Module | 1.5 kV | 1 " | 1 in | 25.4 mm | 10.2 mm | 0.4 " | 25.4 mm | Isolated Module | 36 V | -40 °C | 85 °C | CE | OCP OTP OVP Remote On/Off SCP UVLO | 2 | 1.25 A | -12 V |
