039970 Series
Manufacturer: Molex
Beta
⌘K

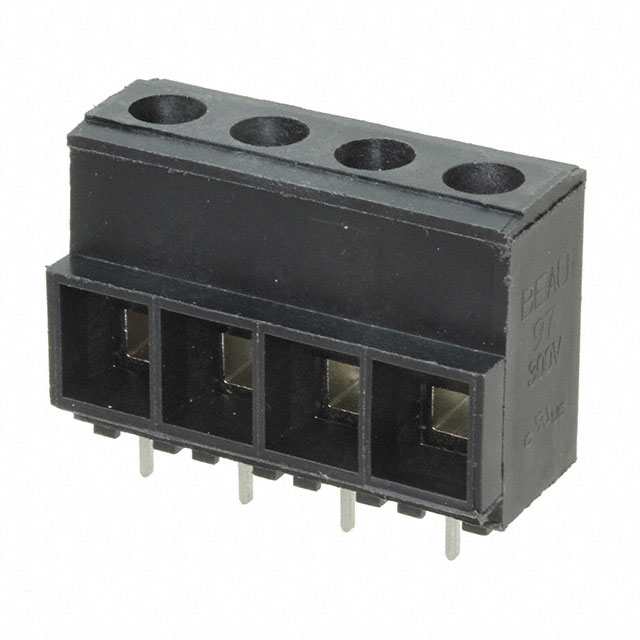

TERM BLK 4P SIDE ENT 10.16MM PCB
| Part | Housing Material | Screw Thread | Mounting Type | Current | Operating Temperature [Min] | Operating Temperature [Max] | Clamp Material - Plating | Wire Gauge | Torque - Screw | Torque - Screw | Positions Per Level | Mating Orientation | Voltage | Pitch [x] | Pitch [x] | Screw Material - Plating | Number of Levels | Wire Termination | Color | Wire Gauge [Min] | Wire Gauge [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | Polybutylene Terephthalate (PBT) | M4 | Through Hole | 60 A | -40 °C | 130 °C | Brass - Nickel Plated | 6 AWG | 12 Lb-In | 1.36 Nm | 4 | Horizontal with Board | 300 V | 10.16 mm | 0.4 in | Bronze Tin Plated | 1 | Screw - Rising Cage Clamp | Black | ||
Molex | Polybutylene Terephthalate (PBT) | M4 | Through Hole | 60 A | -40 °C | 130 °C | Brass - Nickel Plated | 6 AWG | 12 Lb-In | 1.36 Nm | 8 | Horizontal with Board | 300 V | 10.16 mm | 0.4 in | Bronze Tin Plated | 1 | Screw - Rising Cage Clamp | Black | ||
Molex | Polybutylene Terephthalate (PBT) | M4 | Through Hole | 60 A | Brass - Nickel Plated | 2 | Horizontal with Board | 300 V | 10.16 mm | 0.4 in | Steel Stainless - Tin Plated | 1 | Screw - Rising Cage Clamp | Black | |||||||
Molex | Polybutylene Terephthalate (PBT) | M4 | Through Hole | 40 A | -40 °C | 130 °C | Brass - Nickel Plated | 12 Lb-In | 1.36 Nm | 11 | Horizontal with Board | 300 V | 10.16 mm | 0.4 in | Bronze Tin Plated | 1 | Screw - Rising Cage Clamp | Black | 6 AWG | 18 AWG | |
Molex | Polybutylene Terephthalate (PBT) | M4 | Through Hole | 60 A | -40 °C | 130 °C | Brass - Nickel Plated | 12 Lb-In | 1.36 Nm | 9 | Horizontal with Board | 300 V | 10.16 mm | 0.4 in | Bronze Tin Plated | 1 | Screw - Rising Cage Clamp | Black | 6 AWG | 18 AWG | |
Molex | Polybutylene Terephthalate (PBT) | M4 | Through Hole | 40 A | -40 °C | 130 °C | Brass - Nickel Plated | 12 Lb-In | 1.36 Nm | 6 | Horizontal with Board | 300 V | 10.16 mm | 0.4 in | Bronze Tin Plated | 1 | Screw - Rising Cage Clamp | Black | 6 AWG | 18 AWG | |
Molex | Polybutylene Terephthalate (PBT) | M4 | Through Hole | 60 A | Brass - Nickel Plated | 3 | Horizontal with Board | 300 V | 10.16 mm | 0.4 in | Steel Stainless - Tin Plated | 1 | Screw - Rising Cage Clamp | Black | |||||||
Molex | Polybutylene Terephthalate (PBT) | M4 | Through Hole | 40 A | -40 °C | 130 °C | Brass - Nickel Plated | 12 Lb-In | 1.36 Nm | 2 | Horizontal with Board | 300 V | 10.16 mm | 0.4 in | Bronze Tin Plated | 1 | Screw - Rising Cage Clamp | Black | 6 AWG | 18 AWG | |
 Molex | Polybutylene Terephthalate (PBT) | M4 | Through Hole | 60 A | -40 °C | 130 °C | Brass - Nickel Plated | 6 AWG | 12 Lb-In | 1.36 Nm | 2 | Horizontal with Board | 300 V | 10.16 mm | 0.4 in | Bronze Tin Plated | 1 | Screw - Rising Cage Clamp | Black | ||
Molex | Polybutylene Terephthalate (PBT) | M4 | Through Hole | 60 A | -40 °C | 130 °C | Brass - Nickel Plated | 12 Lb-In | 1.36 Nm | 11 | Horizontal with Board | 300 V | 10.16 mm | 0.4 in | Bronze Tin Plated | 1 | Screw - Rising Cage Clamp | Black | 6 AWG | 18 AWG |
