BSA08 Series

Catalog

CONN PLG HSG FMALE 9POS INLINE

Part	Mounting Type	Shell Finish	Connector Type	Orientation	Includes Total Count	Includes	Insert Material	Type	Features	Ingress Protection Description	Ingress Protection IP Rating	Contact Shape	Fastening Type	Operating Temperature (Min)	Operating Temperature (Max)	Shielding	Shell Material	Number of Positions	Position Types	Material Flammability Rating	Note	Housing Color
TE Intercontec BSA082N00420235000	Free Hanging (In-Line)	Nickel	Plug Housing	Keyed	3 pcs	Backshell Cable Clamp Connector	Nylon 6/6 PA66 Polyamide	For Female Sockets	Backshell Cable Clamp Coupling Nut	Dust Tight Water Resistant Waterproof	IP66 IP67	Circular	Push-Twist	-20 °C	130 °C	Shielded	Zinc Die Cast	9	PE Power	UL94 V-0	Contacts Not Included	Silver
TE Intercontec BSA085N00580235000	Free Hanging (In-Line)	Nickel	Plug Housing	Keyed	3 pcs	Backshell Cable Clamp Connector	Nylon 6/6 PA66 Polyamide	For Female Sockets	Backshell Cable Clamp Coupling Nut	Dust Tight Water Resistant Waterproof	IP66 IP67	Circular	Push-Twist	-20 °C	130 °C	Shielded	Zinc Die Cast	6	PE Power	UL94 V-0	Contacts Not Included	Silver
TE Intercontec BSA085N00580100000	Free Hanging (In-Line)	Nickel	Plug Housing	Keyed	3 pcs	Backshell Cable Clamp Connector	Nylon 6/6 PA66 Polyamide	For Female Sockets	Backshell Cable Clamp Coupling Nut	Dust Tight Water Resistant Waterproof	IP66 IP67	Circular	Push-Twist	-20 °C	130 °C	Shielded	Zinc Die Cast	6	PE Power	UL94 V-0	Contacts Not Included	Silver
TE Intercontec BSA085N00480100000	Free Hanging (In-Line)	Nickel	Plug Housing	Keyed	3 pcs	Backshell Cable Clamp Connector	Nylon 6/6 PA66 Polyamide	For Female Sockets	Backshell Cable Clamp Coupling Nut	Dust Tight Water Resistant Waterproof	IP66 IP67	Circular	Push-Twist	-20 °C	130 °C	Shielded	Zinc Die Cast	6	PE Power	UL94 V-0	Contacts Not Included	Silver

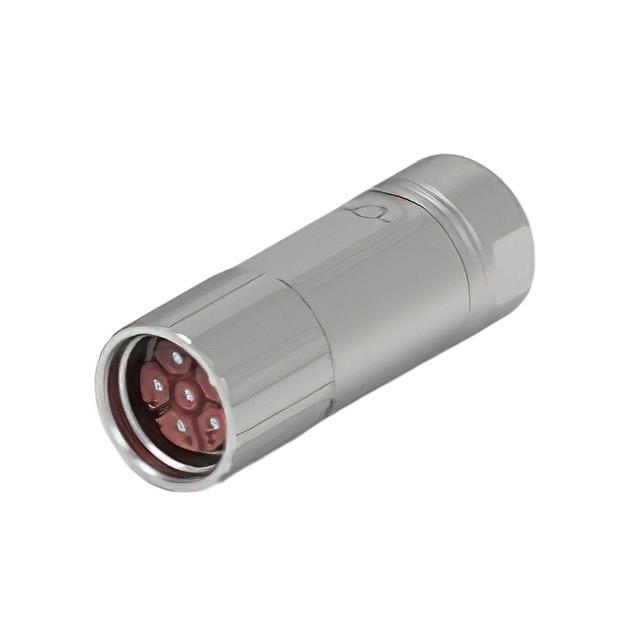

TE Intercontec BSA085N00480235000	Free Hanging (In-Line)	Nickel	Plug Housing	Keyed	3 pcs	Backshell Cable Clamp Connector	Nylon 6/6 PA66 Polyamide	For Female Sockets	Backshell Cable Clamp Coupling Nut	Dust Tight Water Resistant Waterproof	IP66 IP67	Circular	Push-Twist	-20 °C	130 °C	Shielded	Zinc Die Cast	6	PE Power	UL94 V-0	Contacts Not Included	Silver
TE Intercontec BSA082N00590235000	Free Hanging (In-Line)	Nickel	Plug Housing	Keyed	3 pcs	Backshell Cable Clamp Connector	Nylon 6/6 PA66 Polyamide	For Female Sockets	Backshell Cable Clamp Coupling Nut	Dust Tight Water Resistant Waterproof	IP66 IP67	Circular	Push-Twist	-20 °C	130 °C	Shielded	Zinc Die Cast	9	PE Power	UL94 V-0	Contacts Not Included	Silver

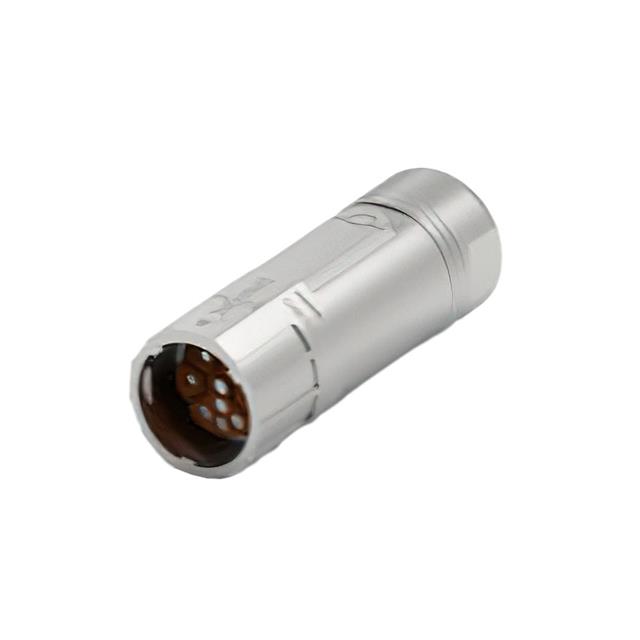

TE Intercontec BSA082N00580100000	Free Hanging (In-Line)	Nickel	Plug Housing	Keyed	3 pcs	Backshell Cable Clamp Connector	Nylon 6/6 PA66 Polyamide	For Female Sockets	Backshell Cable Clamp Coupling Nut	Dust Tight Water Resistant Waterproof	IP66 IP67	Circular	Push-Twist	-20 °C	130 °C	Shielded	Zinc Die Cast	9	PE Power	UL94 V-0	Contacts Not Included	Silver
TE Intercontec BSA082N00420100000	Free Hanging (In-Line)	Nickel	Plug Housing	Keyed	3 pcs	Backshell Cable Clamp Connector	Nylon 6/6 PA66 Polyamide	For Female Sockets	Backshell Cable Clamp Coupling Nut	Dust Tight Water Resistant Waterproof	IP66 IP67	Circular	Push-Twist	-20 °C	130 °C	Shielded	Zinc Die Cast	9	PE Power	UL94 V-0	Contacts Not Included	Silver
TE Intercontec BSA085N00590100000	Free Hanging (In-Line)	Nickel	Plug Housing	Keyed	3 pcs	Backshell Cable Clamp Connector	Nylon 6/6 PA66 Polyamide	For Female Sockets	Backshell Cable Clamp Coupling Nut	Dust Tight Water Resistant Waterproof	IP66 IP67	Circular	Push-Twist	-20 °C	130 °C	Shielded	Zinc Die Cast	6	PE Power	UL94 V-0	Contacts Not Included	Silver
TE Intercontec BSA085N00590235000	Free Hanging (In-Line)	Nickel	Plug Housing	Keyed	3 pcs	Backshell Cable Clamp Connector	Nylon 6/6 PA66 Polyamide	For Female Sockets	Backshell Cable Clamp Coupling Nut	Dust Tight Water Resistant Waterproof	IP66 IP67	Circular	Push-Twist	-20 °C	130 °C	Shielded	Zinc Die Cast	6	PE Power	UL94 V-0	Contacts Not Included	Silver
