LCM-S02002 Series

Catalog

LCD MOD 40DIG 20X2 TRANSFLCT YLW

Part	Outline L x W x H [z]	Outline L x W x H [y]	Outline L x W x H [x]	Display Type	Character Size [y]	Character Size [z]	Voltage - Supply [Min]	Voltage - Supply [Max]	Display Format [x]	Display Format [y]	Viewing Area [x]	Viewing Area [y]	Backlight	Dot Size [custom]	Dot Size [custom]	Character Format [x]	Character Format [y]	Number of Characters	Operating Temperature [Max]	Display Mode	Background Color	Interface
Lumex Opto/Components Inc. LCM-S02002DSM-Y	12.7 mm	37 mm	116 mm	STN - Super-Twisted Nematic	3.2 mm	5.55 mm	4.7 V	5.3 V	20	2	85 mm	18.8 mm	LED - Yellow	0.65 mm	0.6 mm	5 Dots	8 Dots	40	50 °C	Transflective
Lumex Opto/Components Inc. LCM-S02002DSF-S5	8.9 mm	37 mm	116 mm		3.2 mm	5.55 mm	4.7 V	5.3 V	20	2	85 mm	18.6 mm		0.65 mm	0.6 mm	5 Dots	8 Dots	40	70 °C

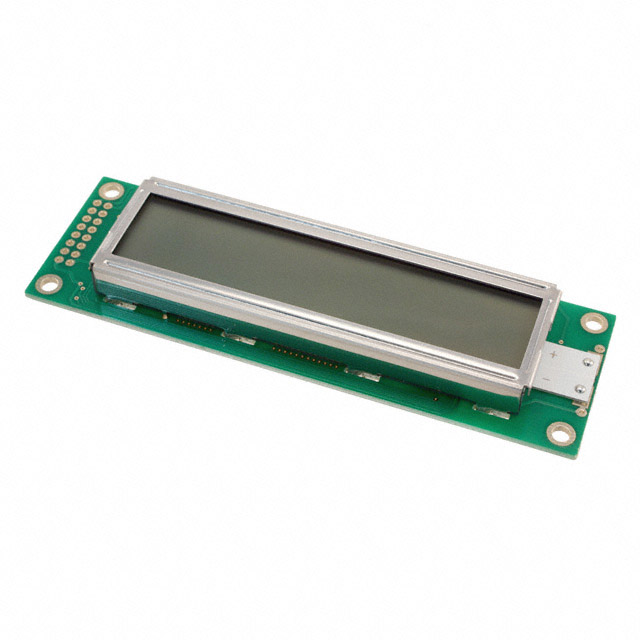

Lumex Opto/Components Inc. LCM-S02002DSF	12.7 mm	37 mm	116 mm	STN - Super-Twisted Nematic	3.2 mm	5.55 mm			20	2	85 mm	18.6 mm		0.65 mm	0.6 mm	5 Dots	8 Dots	40	50 °C	Transflective	Green	Parallel
Lumex Opto/Components Inc. LCM-S02002DTF	12.7 mm	28.5 mm	116 mm	TN - Twisted Nematic	3.2 mm	5.55 mm			20	2	85 mm	18.6 mm		0.65 mm	0.6 mm	5 Dots	8 Dots	40	50 °C	Transflective		Parallel

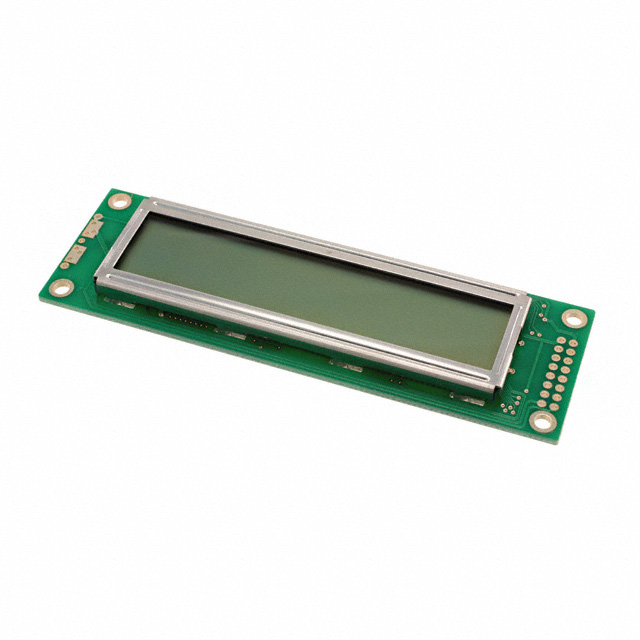

Lumex Opto/Components Inc. LCM-S02002DSR	8.9 mm	37 mm	116 mm	STN - Super-Twisted Nematic	3.2 mm	5.55 mm			20	2	85 mm	18.6 mm		0.65 mm	0.6 mm	5 Dots	8 Dots	40	50 °C	Reflective	Green	Parallel
