HL18T Series
Manufacturer: SICK, Inc.
Beta
⌘K

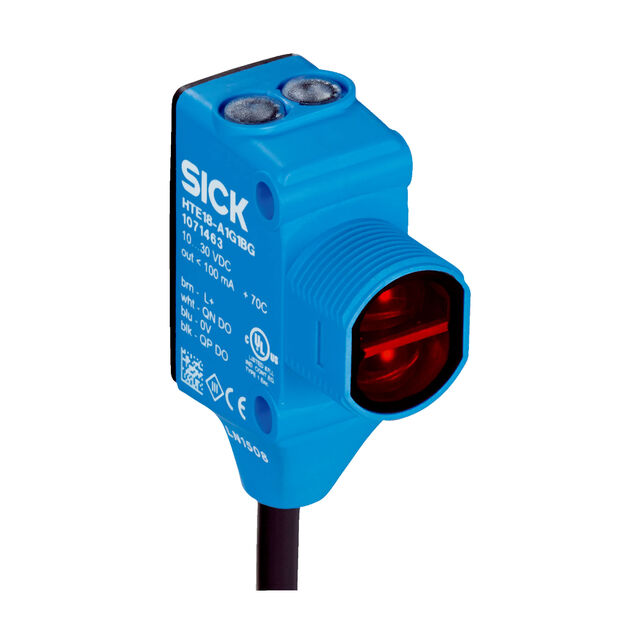

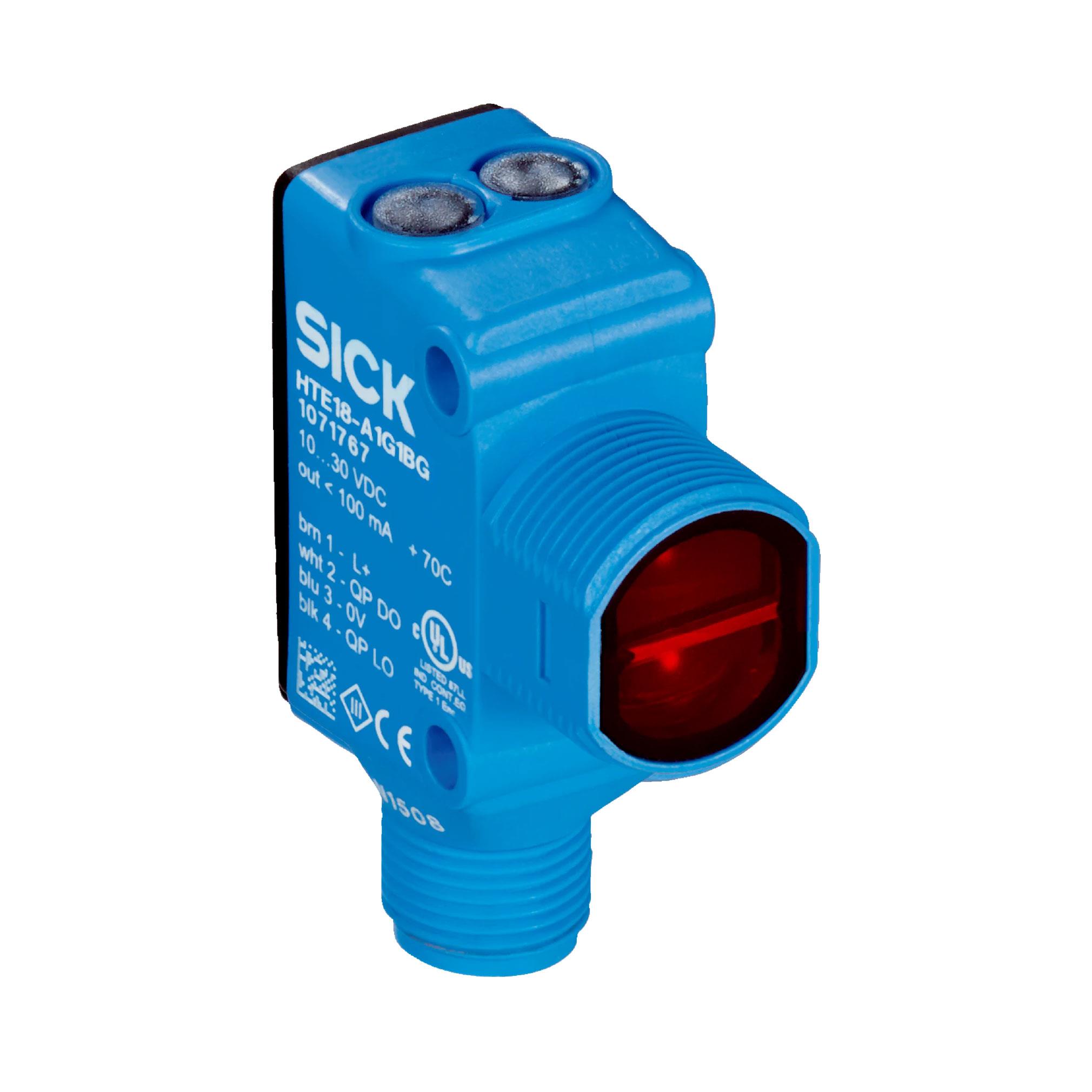

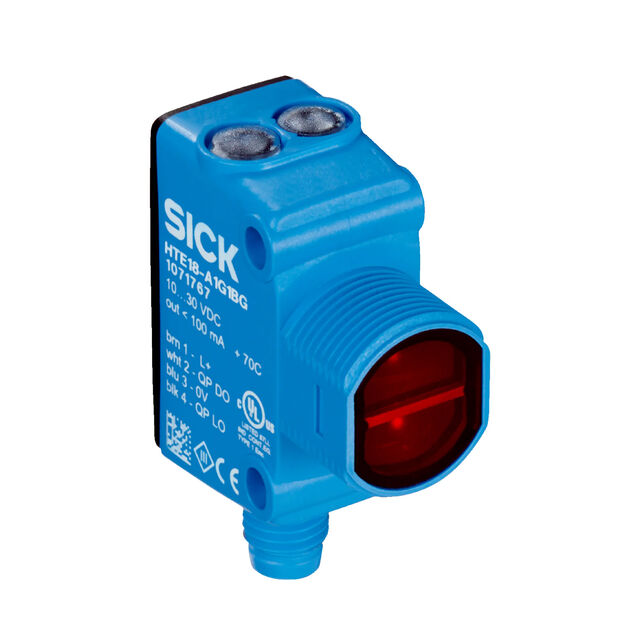

PHOTOELECTRIC SENSOR, 3M, PNP, 10-30V ROHS COMPLIANT: YES
| Part | Connection Method | Output Configuration | Ingress Protection | Light Source | Adjustment Type | Response Time | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Supply [Min] | Voltage - Supply [Max] | Sensing Distance [Max] | Sensing Distance [Min] | Sensing Distance [Max] | Sensing Distance [Min] | Sensing Method | Cable Length | Cable Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SICK, Inc. | Connector M12 | PNP | IP67 | Red (631nm) | Adjustable Potentiometer | 500 µs | 70 °C | -40 ¯C | 10 VDC | 30 VDC | 118.11 " | 10 cm | 3 m | 3.937 " | Retroreflective | ||
 SICK, Inc. | Cable | PNP | IP67 IP69K | Red (631nm) | Adjustable Potentiometer | 500 µs | 70 °C | -40 ¯C | 10 VDC | 30 VDC | 118.11 " | 10 cm | 3 m | 3.937 " | Retroreflective | 78.74 " | 2 m |
 SICK, Inc. | Connector M12 | NPN | IP67 IP69K | Red (631nm) | Adjustable Potentiometer | 500 µs | 70 °C | -40 ¯C | 10 VDC | 30 VDC | 118.11 " | 10 cm | 3 m | 3.937 " | Retroreflective | ||
SICK, Inc. | Cable | PNP | IP67 | Red (631nm) | Adjustable Potentiometer | 500 µs | 70 °C | -40 ¯C | 10 VDC | 30 VDC | 118.11 " | 10 cm | 3 m | 3.937 " | Retroreflective | 78.74 " | 2 m |
SICK, Inc. | Cable | IP67 | Red (631nm) | Adjustable Potentiometer | 500 µs | 70 °C | -40 ¯C | 21.6 VDC | 250 VDC | 118.11 " | 10 cm | 3 m | 3.937 " | Retroreflective | 78.74 " | 2 m | |
SICK, Inc. | Cable with Connector | PNP | IP67 | Red (631nm) | Adjustable Potentiometer | 500 µs | 70 °C | -40 ¯C | 10 VDC | 30 VDC | 118.11 " | 10 cm | 3 m | 3.937 " | Retroreflective | 39.37 in | 100 cm |
 SICK, Inc. | Connector M8 | PNP | IP67 IP69K | Red (631nm) | Adjustable Potentiometer | 500 µs | 70 °C | -40 ¯C | 10 VDC | 30 VDC | 118.11 " | 10 cm | 3 m | 3.937 " | Retroreflective | ||
SICK, Inc. | Connector M12 | NPN | IP67 | Red (631nm) | Adjustable Potentiometer | 500 µs | 70 °C | -40 ¯C | 10 VDC | 30 VDC | 118.11 " | 10 cm | 3 m | 3.937 " | Retroreflective | ||
SICK, Inc. | Connector M8 | NPN | IP67 | Red (631nm) | Adjustable Potentiometer | 500 µs | 70 °C | -40 ¯C | 10 VDC | 30 VDC | 118.11 " | 10 cm | 3 m | 3.937 " | Retroreflective | ||
SICK, Inc. | Connector M12 | NPN PNP | IP67 | Red (631nm) | Adjustable Potentiometer | 500 µs | 70 °C | -40 ¯C | 10 VDC | 30 VDC | 118.11 " | 10 cm | 3 m | 3.937 " | Retroreflective |
