651NH Series
Manufacturer: APEM Inc.
Beta
⌘K

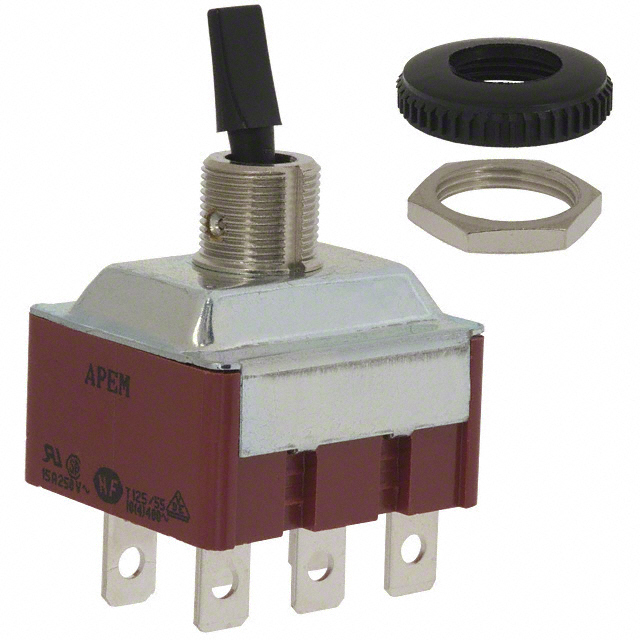

SWITCH TOGGLE 3PST 15A 250V
| Part | Electrical Life | Actuator Material | Voltage Rating - AC | Bushing Thread | Current Rating (Amps) | Actuator Type | Termination Style | Mounting Type | Circuit | Illumination | Switch Function | Operating Temperature [Max] | Operating Temperature [Min] | Panel Cutout Dimensions [diameter] | Actuator Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 APEM Inc. | 10000 Cycles | Polyamide (PA) Nylon | 250 V | M12 x 0.75 | 15 A | Flatted | Quick Connect - 0.250" (6.3mm) | Panel Mount | 3PST | Non-Illuminated | On-Off | 55 °C | -20 ░C | 12.2 mm Dia | 13.5 mm |
