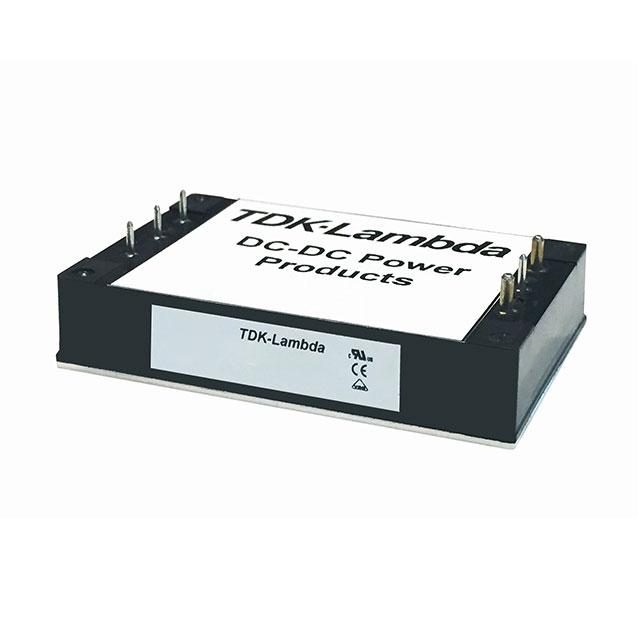

HQA2W085 Series
Manufacturer: TDK Corporation
Beta
⌘K
ISOLATED DC/DC CONVERTERS - THROUGH HOLE 85W 24VIN 12VOUT 7.1A N LOG
| Part | Power (Watts) | Control Features | Voltage - Isolation | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Voltage - Output 1 | Features | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Efficiency | Voltage - Input (Min) [Min] | Approval Agency | Type | Number of Outputs | Current - Output (Max) [Max] | Mounting Type | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TDK Corporation | 85 W | Active Low Enable | 2250 VDC | 39.5 mm | 0.5 in | 2.39 " | 60.6 mm | 1.54 in | 12.7 mm | 12 V | OCP OVP Remote On/Off | Quarter Brick | 115 °C | -40 C | 90 % | 9 V | CE | Isolated Module | 1 | 7.1 A | Through Hole | ITE (Commercial) |
 TDK Corporation | 85 W | Active Low Enable | 2250 VDC | 55.9 mm | 0.5 in | 2.39 " | 60.6 mm | 2.2 " | 12.7 mm | 24 V | OCP OVP Remote On/Off | Quarter Brick | 115 °C | -40 C | 87 % | 9 V | CE | Isolated Module | 1 | 3.5 A | Through Hole | ITE (Commercial) |
