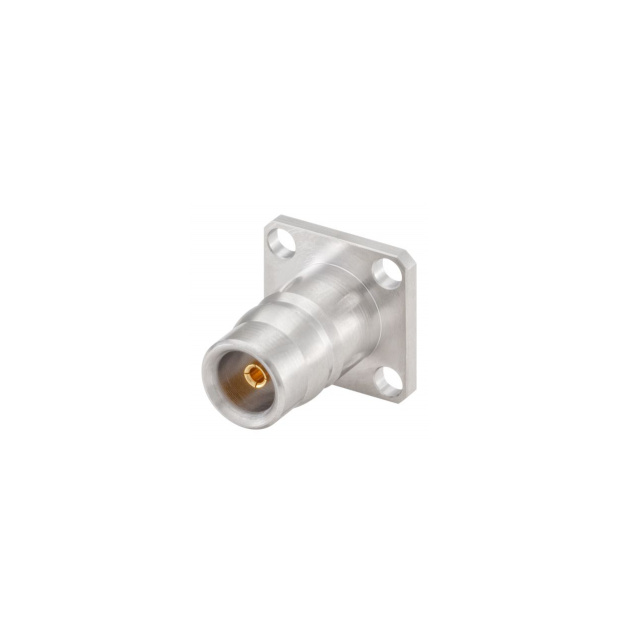

153QK401 Series
Manufacturer: Rosenberger
Beta
⌘K
QN PANEL JACK
| Part | Dielectric Material | Body Material | Voltage Rating | Body Finish | Operating Temperature [Max] | Operating Temperature [Min] | Center Contact Plating | Frequency - Max [Max] | Mounting Feature | Connector Style | Mounting Type | Center Contact Material | Number of Ports | Shield Termination | Impedance | Housing Color | Connector Type | Fastening Type | Contact Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | Polytetrafluoroethylene (PTFE) | Brass | 1000 VDC | White Bronze | 125 °C | -40 C | Gold | 11 GHz | Flange | QN | Panel Mount | Brass | 1 | Solder | 50 Ohms | Silver | Female Socket Jack | Threaded | Solder Cup |
