RZF1-1A6 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

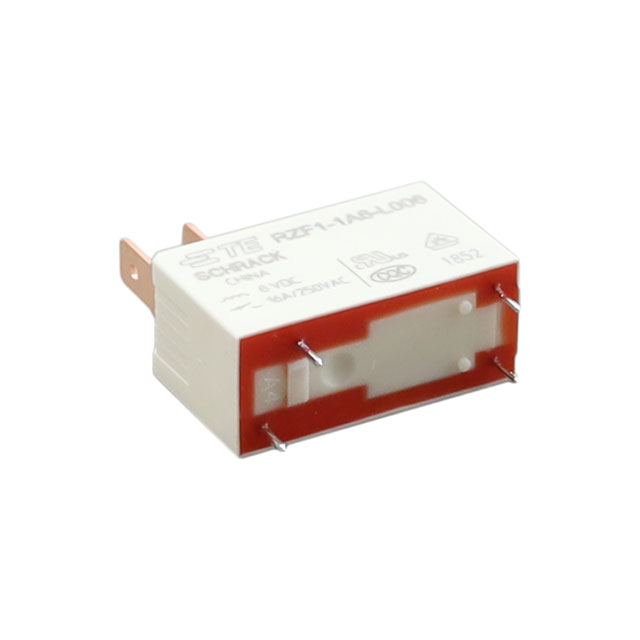

GENERAL PURPOSE RELAYS 66.6 OHMS 6 VDC FASTON POWER RELAYS
| Part | Coil Resistance | Mounting Type | Coil Current | Coil Insulation | Must Operate Voltage | Termination Style | Release Time | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Must Release Voltage | Load - Max Switching | Operate Time | Switching Voltage [Max] | Contact Rating (Current) | Coil Type | Approval Agency | Contact Form | Relay Type | Seal Rating | Coil Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 66.6 Ohms | Through Hole | 90.1 mA | Class F | 4.2 VDC | PC Pin Quick Connect | 6 ms | 85 °C | -40 C | Silver Nickel (AgNi) | 0.6 VDC | 6400 VA | 8 ms | 400 VAC | 16 A | Non Latching | CQC cURus VDE | SPST-NO (1 Form A) | General Purpose | Sealed - Flux Protection | |

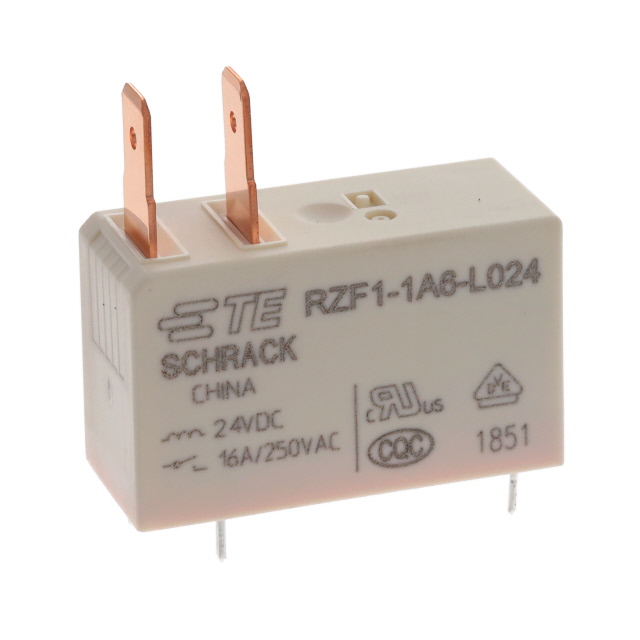

 TE Connectivity AMP Connectors | 1.09 kOhms | Through Hole | 22.1 mA | Class F | 16.8 VDC | PC Pin Quick Connect | 6 ms | 85 °C | -40 C | Silver Nickel (AgNi) | 2.4 VDC | 6400 VA | 8 ms | 400 VAC | 16 A | Non Latching | CQC cURus VDE | SPST-NO (1 Form A) | General Purpose | Sealed - Flux Protection | 24 VDC |
 TE Connectivity AMP Connectors | 47.2 Ohms | Through Hole | 106 mA | Class F | 3.5 VDC | PC Pin Quick Connect | 6 ms | 85 °C | -40 C | Silver Nickel (AgNi) | 0.5 VDC | 6400 VA | 8 ms | 400 VAC | 16 A | Non Latching | CQC cURus VDE | SPST-NO (1 Form A) | General Purpose | Sealed - Flux Protection | 5 VDC |

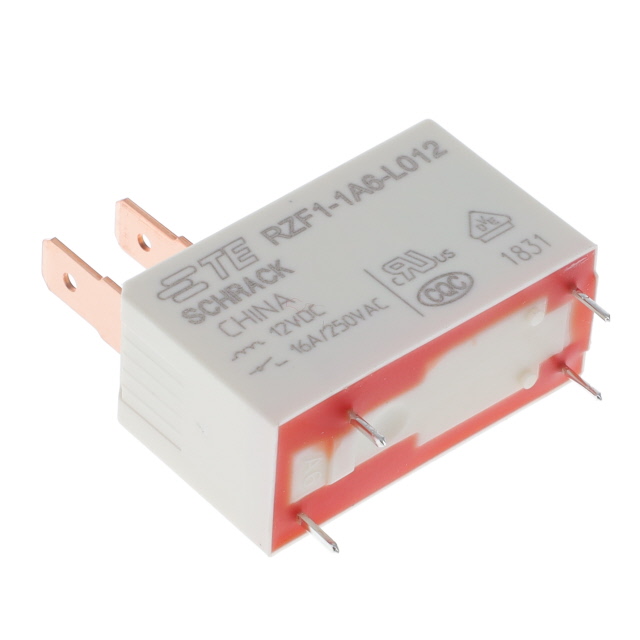

 TE Connectivity AMP Connectors | 272 Ohms | Through Hole | 44.2 mA | Class F | 8.4 VDC | PC Pin Quick Connect | 6 ms | 85 °C | -40 C | Silver Nickel (AgNi) | 1.2 VDC | 6400 VA | 8 ms | 400 VAC | 16 A | Non Latching | CQC cURus VDE | SPST-NO (1 Form A) | General Purpose | Sealed - Flux Protection | 12 VDC |
