EPS150160 Series
Manufacturer: CUI Inc.
Beta
⌘K

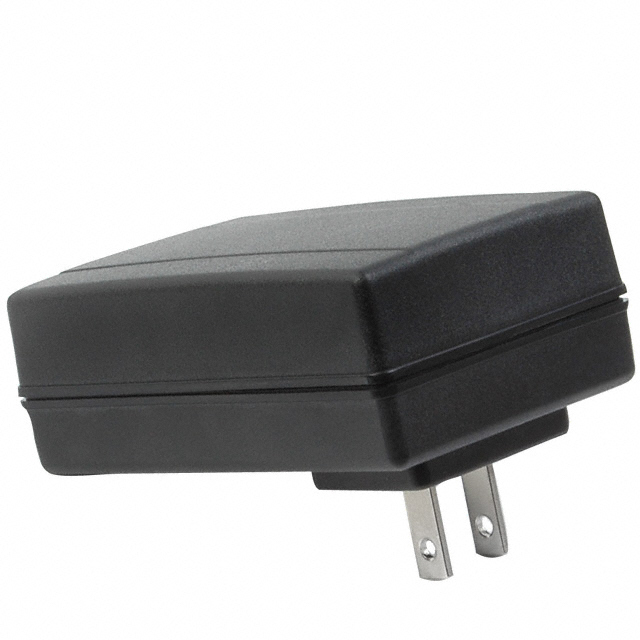

AC/DC WALL MOUNT ADAPTER 15V 24W
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Current - Output (Max) [Max] | Input Connector | Polarization | Power (Watts) | Efficiency | Cord Length | Cord Length | Input Type | No Load Power Consumption | Applications | Form | Output Connector [custom] | Output Connector [custom] | Output Connector | Output Connector [x] | Approval Agency | Voltage - Input [Max] | Voltage - Input [Min] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Region Utilized | Voltage - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CUI Inc. | 40 °C | 0 °C | 1.6 A | NEMA 1-15P | Positive Center | 24 W | Level IV | 1.83 m | 72 in | Fixed Blade | 500 mW | ITE (Commercial) | Wall Mount | 2.1 mm | 5.5 mm | Barrel Plug | 12 mm | cULus | 264 VAC | 90 VAC | 3.39 " | 32.5 mm | 56 mm | 1.28 " | 86 mm | 2.2 " | North America | 15 V |
