LDS-AA14 Series
Manufacturer: Lumex Opto/Components Inc.
Beta
⌘K

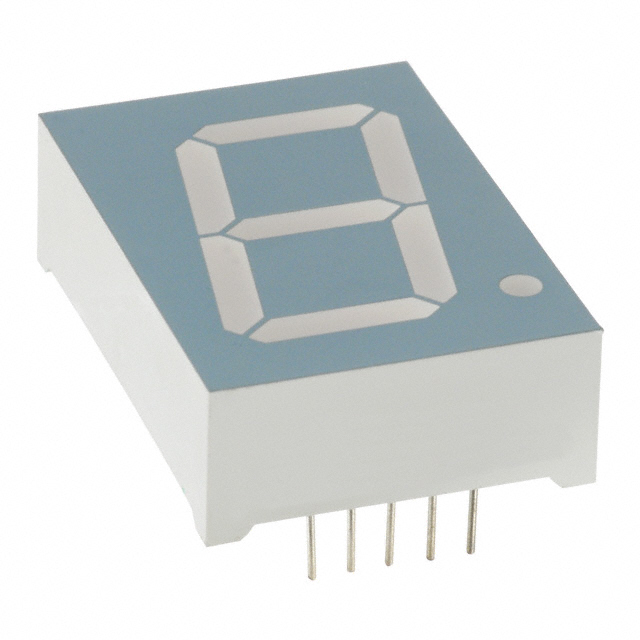

DISPLAY 7-SEG 1" SGL RED 10DIP
| Part | Number of Characters | Voltage - Forward (Vf) (Typ) | Power Dissipation (Max) [Max] | Digit/Alpha Size | Digit/Alpha Size | Package / Case | Color | Display Type | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Common Pin | Current - Test | Wavelength - Peak | Millicandela Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Lumex Opto/Components Inc. | 1 | 4 V | 105 mW | 1 in | 25.4 mm | 10-DIP (1.200" 30.48mm) | Red | 7-Segment | 24 mm | 34 mm | 1.339 in | 0.945 " | 10.5 mm | 0.413 in | Common Anode | 10 mA | 635 nm | 9.8 mcd |
