10326 Series

Catalog

CONNECTOR BACKSHELL, SOLDER PLUG JUNCTION BACKSHELL, 26 POSITION CONNECTOR, 180°

Part	Primary Material	Color	Features	Material	Cable Exit	Accessory Type	Cable Type	Shielding	Number of Positions	Hardware	Plating

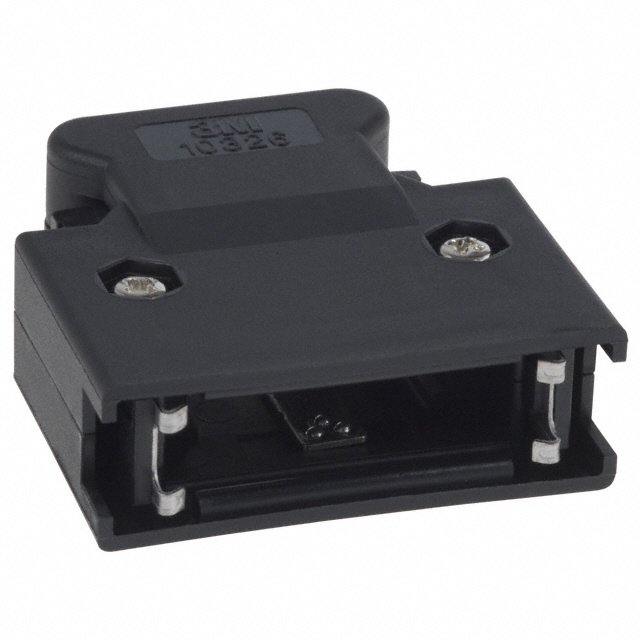

3M Electronic Specialty 10326-52F0-008	Plastic	Black	Latch Lock	Polybutylene Terephthalate (PBT) Glass Filled	180 °	Two Piece Backshell	Round	Unshielded	26	Assembly Hardware Strain Relief

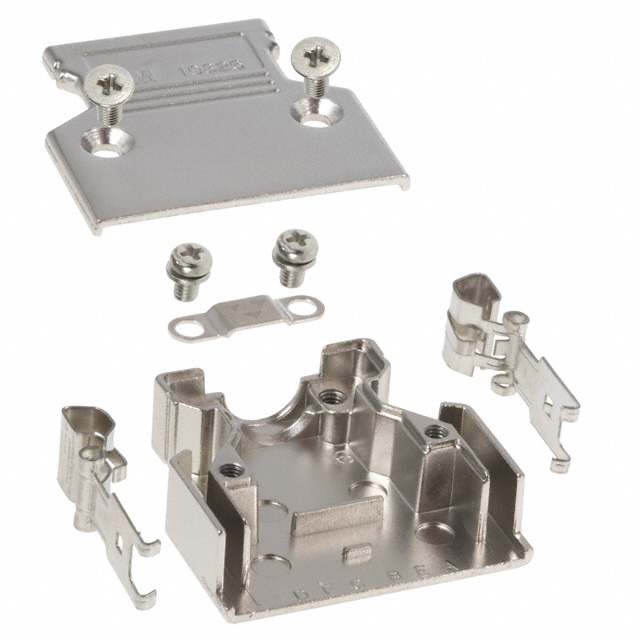

3M Electronic Specialty 10326-A200-00	Metal	Silver	Latch Lock	Metal Zinc Alloy	180 °	Two Piece Backshell	Round	Shielded	26		Nickel

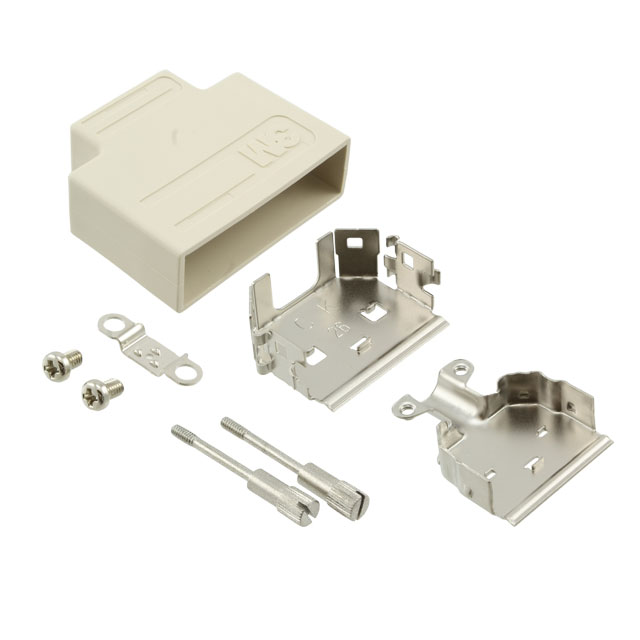

3M Electronic Specialty 10326-32J0-000	Metal	Beige	Mating Screws 4-40	Metal Shell Steel/Plastic Cover	180 °	Two Piece Backshell and Cover	Round	Shielded	26
3M Electronic Specialty 10326-3210-001	Metal	Dark Gray	Latch Lock	Metal Shell Steel/Plastic Cover	180 °	Two Piece Backshell and Cover	Round	Shielded	26

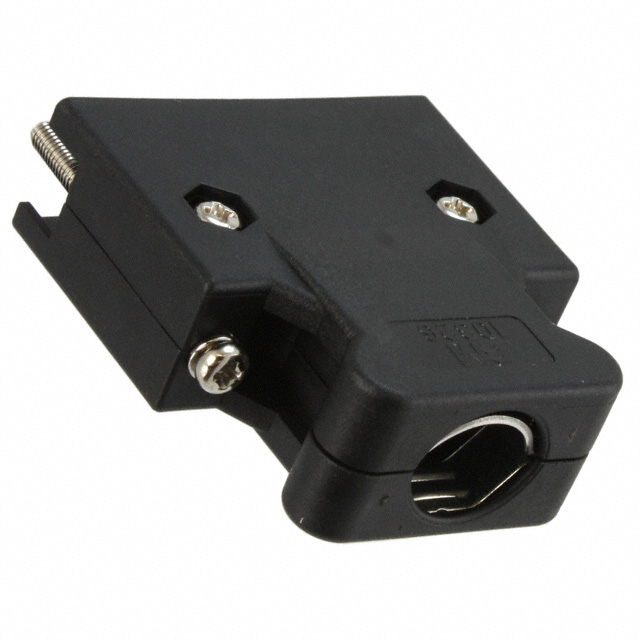

3M Electronic Specialty 10326-52A0-008	Plastic	Black	Mating Screws M2.6	Polybutylene Terephthalate (PBT) Glass Filled	180 °	Two Piece Backshell	Round	Unshielded	26	Assembly Hardware Strain Relief
3M Electronic Specialty 10326-3281-000-8
3M Electronic Specialty 10326-E2W0-008	Plastic	Black		Acrylonitrile Butadiene Styrene (ABS)	180 °	Two Piece Backshell	Round		26	Assembly Hardware
3M Electronic Specialty 10326-32J0-006	Metal	Black	Mating Screws 4-40	Metal Shell Steel/Plastic Cover	180 °	Two Piece Backshell and Cover	Round	Shielded	26
3M Electronic Specialty 10326-1230-00	Metal	Silver	Latch Lock	Metal Zinc	180 °	Two Piece Backshell	Flat	Shielded	26	Assembly Hardware Gasket	Nickel

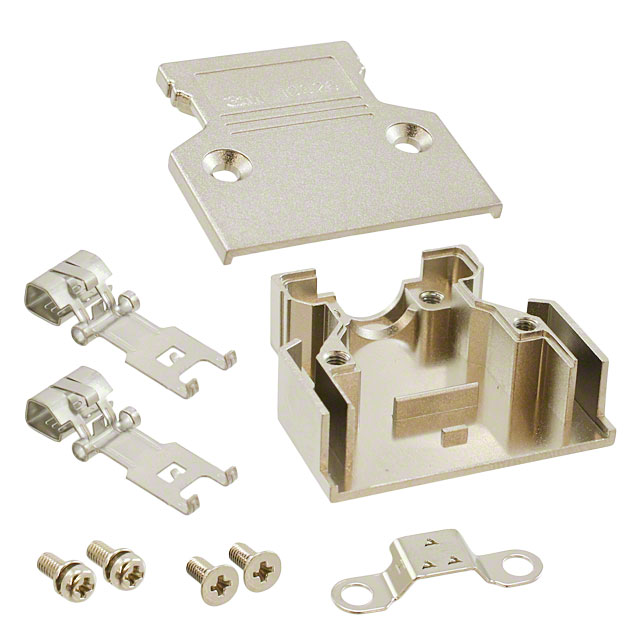

3M Electronic Specialty 10326-C200-00	Metal	Silver	Latch Lock	Zinc Alloy	180 °	Two Piece Backshell	Round	Shielded	26		Nickel
