1003-1541 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

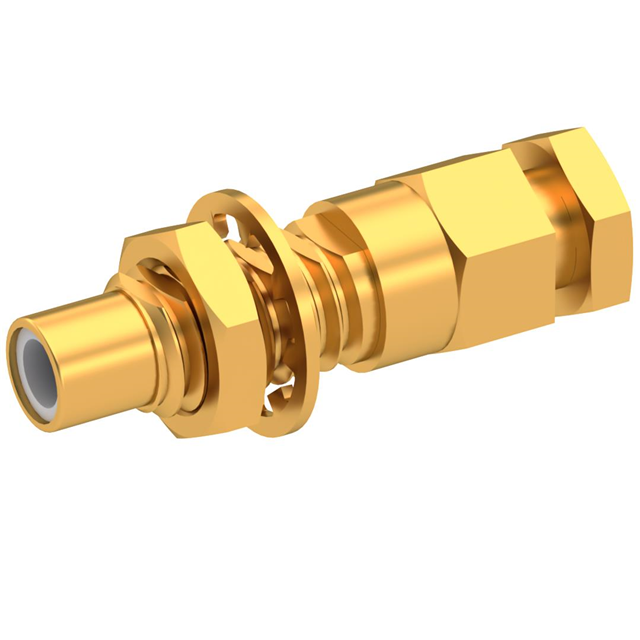

SMC / STRAIGHT JACK MALE SOLDER
| Part | Body Material | Insertion Loss | Mating Cycles | Center Contact Plating | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Body Finish | Mounting Feature | Connector Style | Shield Termination | Number of Ports | Frequency - Max [Max] | Mounting Type | Contact Termination | Fastening Type | Center Contact Material | Cable Group | Connector Type | Impedance | Housing Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Brass | 0.25 dB | 500 | Gold | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | Gold | Bulkhead - Front Side Nut | SMC | Clamp | 1 | 10 GHz | Panel Mount | Solder | Threaded | Brass | RG-405 (.086 Semi Rigid) | Jack Male Pin | 50 Ohms | Gold |
