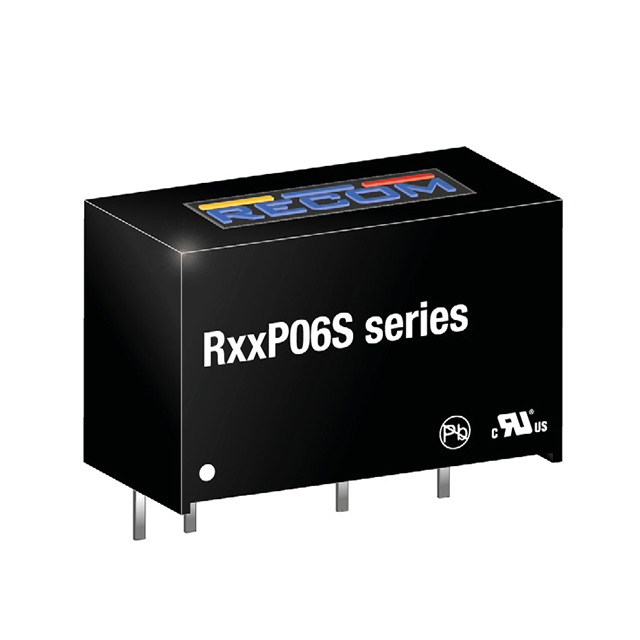

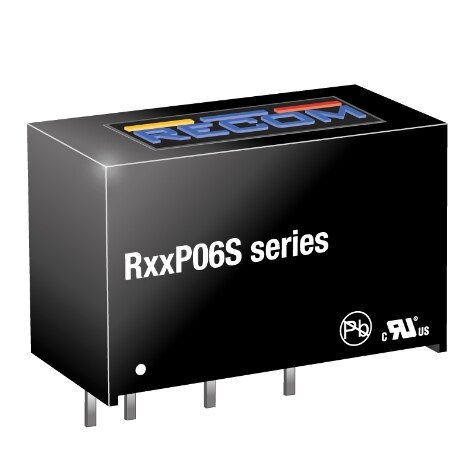

RxxP06 Series
Manufacturer: Recom Power
Beta
⌘K
ISOLATED THROUGH HOLE DC/DC CONVERTER, SIP, 1:1, 1 W, 1 OUTPUT, 12 V
| Part | Package / Case | Type | Efficiency | Voltage - Input (Min) [Min] | Voltage - Input (Max) [Max] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Operating Temperature [Max] | Operating Temperature [Min] | Current - Output (Max) [Max] | Applications | Voltage - Isolation | Voltage - Output 1 [custom] | Mounting Type | Number of Outputs |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Recom Power | 7-SIP Module 4 Leads | Isolated Module | 81 % | 10.8 V | 13.2 V | 12.5 mm | 0.77 in | 0.49 " | 0.39 in | 19.6 mm | 9.8 mm | 90 °C | -40 C | 167 mA | ITE (Commercial) | 6.4 kV | 6 V | Through Hole | 1 |
 Recom Power | 7-SIP Module 4 Leads | Isolated Module | 79 % | 13.5 V | 16.5 V | 12.5 mm | 0.77 in | 0.49 " | 0.39 in | 19.6 mm | 9.8 mm | 90 °C | -40 C | 167 mA | ITE (Commercial) | 6.4 kV | 6 V | Through Hole | 1 |
 Recom Power | 7-SIP Module 4 Leads | Isolated Module | 80 % | 21.6 V | 26.4 V | 12.5 mm | 0.77 in | 0.49 " | 0.39 in | 19.6 mm | 9.8 mm | 90 °C | -40 C | 167 mA | ITE (Commercial) | 6.4 kV | 6 V | Through Hole | 1 |
Recom Power | 7-SIP Module 4 Leads | Isolated Module | 76 % | 4.5 V | 5.5 V | 12.5 mm | 0.77 in | 0.49 " | 0.39 in | 19.6 mm | 9.8 mm | 90 °C | -40 C | 167 mA | ITE (Commercial) | 6.4 kV | 6 V | Through Hole | 1 |
