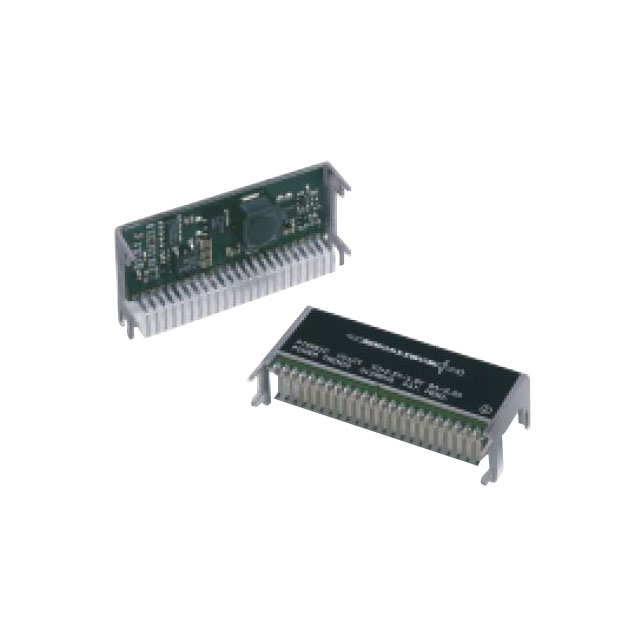

PT6982 Series
Manufacturer: Texas Instruments
Beta
⌘K
DC DC CONVERTER 3.3V 2.5V
| Part | Package / Case | Type | Operating Temperature [Max] | Operating Temperature [Min] | Features | Current - Output (Max) | Voltage - Input (Min) [Min] | Voltage - Output 2 | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Number of Outputs | Voltage - Input (Max) [Max] | Mounting Type | Voltage - Output 1 | Efficiency | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | 23-SMD Module | Non-Isolated PoL Module | 85 °C | -40 °C | Remote On/Off SCP | 2.25 A 10.5 A | 10.8 V | 2.5 V | 65.5 mm | 1.19 " | 2.58 " | 30.2 mm | 10.9 mm | 0.43 " | 2 | 13.2 V | Surface Mount | 3.3 V | 84 % | ITE (Commercial) |
