133521 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

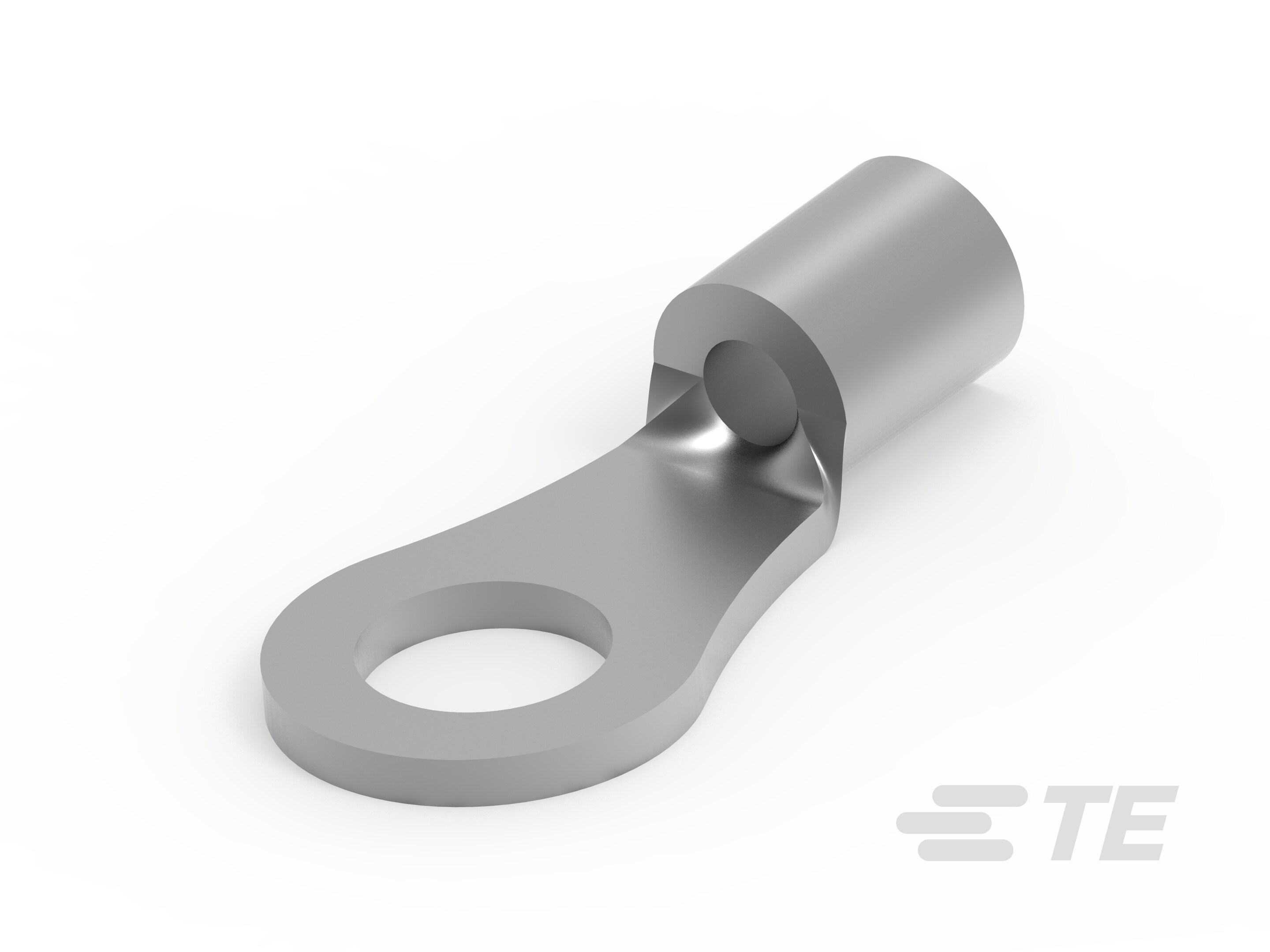

TERMINAL SOLISTRAND 22-18, GOLD PLATED
| Part | Mounting Type | Wire Gauge [Max] | Wire Gauge [Min] | Stud/Tab Size | Thickness | Thickness | Terminal Type | Features | Termination | Contact Material | Length - Overall [x] | Length - Overall [x] | Insulation | Width - Outer Edges [x] | Width - Outer Edges [x] | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Free Hanging (In-Line) | 22 AWG | 17.5 AWG | 8 Stud | 0.79 mm | 0.031 in | Circular | Brazed Seam Serrated Termination | Crimp | Copper | 0.574 in | 14.58 mm | Non-Insulated | 7.14 mm | 0.281 in | Gold |
