156.OA02 Series
Manufacturer: Altech Corporation
Beta
⌘K

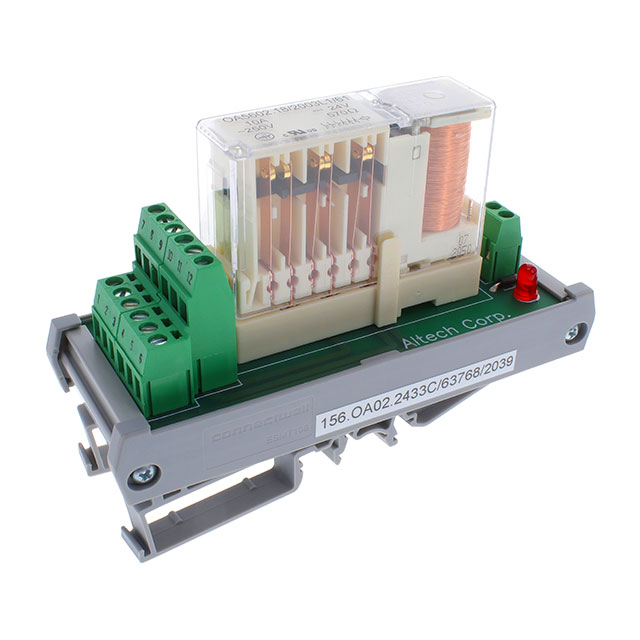

RELAY SAFETY 6PST 10A 24V
| Part | Coil Resistance | Coil Power | Coil Current | Operating Temperature (Max) | Operating Temperature (Min) | Operate Time | Mounting Type | Must Operate Voltage | Coil Voltage | Termination Style | Contact Material | Pin Count | Contact Form | Contact Rating (Current) | Switching Voltage DC (Max) | Switching Voltage AC (Max) | Release Time |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Altech Corporation | 570 Ohms | 1.01 W | 42.1 mA | 80 °C | -40 °C | 27 ms | DIN Rail | 16.8 VDC | 24 VDC | Screw Terminal | Gold (Au) Silver Cadmium Oxide (AgCdO) | 6 | 2 4 A B Form PST-4NO/2NC | 10 A | 250 VDC | 400 VAC | 5 ms |
Altech Corporation | 140 Ohms | 1.03 W | 85.7 mA | 80 °C | -40 °C | 27 ms | DIN Rail | 8.4 VAC | 12 VAC | Screw Terminal | Gold (Au) Silver Cadmium Oxide (AgCdO) | 6 | 2 4 A B Form PST-4NC/2NO | 10 A | 250 VDC | 400 VAC | 5 ms |
Altech Corporation | 140 Ohms | 1.03 W | 85.7 mA | 80 °C | -40 °C | 27 ms | DIN Rail | 8.4 VAC | 12 VAC | Screw Terminal | Gold (Au) Silver Cadmium Oxide (AgCdO) | 6 | 3 A B Form PST-3NO/3NC | 10 A | 250 VDC | 400 VAC | 5 ms |
 Altech Corporation | 570 Ohms | 1.01 W | 42.1 mA | 80 °C | -40 °C | 27 ms | DIN Rail | 16.8 VDC | 24 VDC | Screw Terminal | Gold (Au) Silver Cadmium Oxide (AgCdO) | 6 | 3 A B Form PST-3NO/3NC | 10 A | 250 VDC | 400 VAC | 5 ms |
