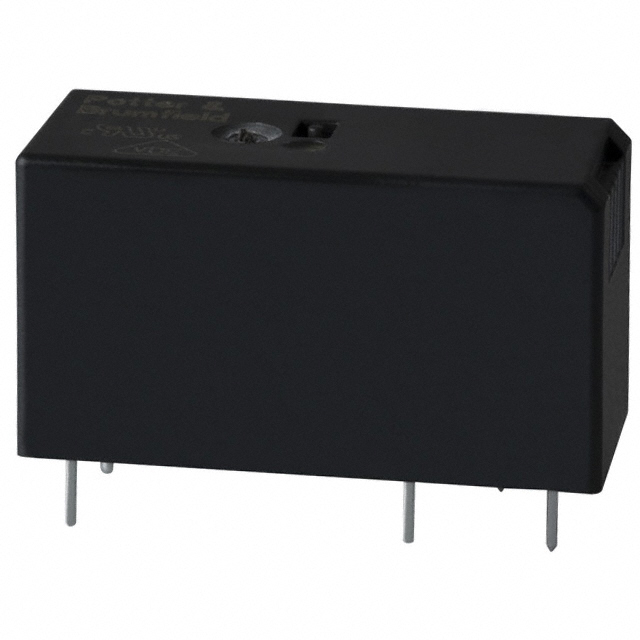

RTB140 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
RELAY GEN PURPOSE SPDT 12A 6V
| Part | Coil Resistance | Termination Style | Contact Material | Seal Rating | Operate Time | Release Time | Load - Max Switching | Contact Rating (Current) | Must Release Voltage | Coil Type | Coil Insulation | Approval Agency | Switching Voltage [Max] | Coil Current | Must Operate Voltage | Relay Type | Mounting Type | Contact Form | Operating Temperature [Max] | Operating Temperature [Min] | Coil Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 90 Ohms | PC Pin | Silver Nickel (AgNi) | Sealed - Fully | 8 ms | 6 ms | 4800 VA | 12 A | 0.6 VDC | Non Latching | Class F | CQC CSA cURus VDE | 400 VAC | 66.7 mA | 4.2 VDC | General Purpose | Through Hole | SPDT (1 Form C) | 85 °C | -40 C | |
 TE Connectivity AMP Connectors | 770 Ohms | PC Pin | Silver Nickel (AgNi) | Sealed - Fully | 8 ms | 6 ms | 4800 VA | 12 A | 1.8 VDC | Non Latching | Class F | CQC CSA cURus VDE | 400 VAC | 14.2 mA | 12.6 VDC | General Purpose | Through Hole | SPDT (1 Form C) | 85 °C | -40 C | 18 VDC |
